LY-3000 Water Cooled Chiller for Carbonated Drink Filling equipment
Cold water tank (inside is ablate pipes will connect the CFC)
Usage:
The tank contains compressor using freon F-12 as refrigerant ,and pressure sensor, and temperature regulator for automatic controlling.It is necessary equipment for aerated water and sparkling wine production industry.
Working theories:
Chilling working theory is adopted calorific, so the low temperature can not change to high temperature; it is the same working theory to refrigerator.
As the compressor is working, the steam in lower pressure pipe will be changed higher pressure steam by compressor work, as the liquid goes into liquid saver, and filter it, and chilling liquid will be vapor, and then absorbed by compressor, it is forming recycling work to reach chilling purpose.
1. Compressor: JZS-4F-10 960 runs / Minute
2. volume of water in tank: 3m³
3. chilling: 117040Kj/h
4. chilling volume: F-12 volume: about 70Kg
5. water temperature comes output:3-5 ℃
6.water temperature comes intput:15-20℃
7. volume of water come out: 2000-3000Kg/h
8. power: 22Kw
9: overall dimension: 2200*1900* 2050mm
10: power: 3 phrases, 380V, 50HZ
11: total weight of machine:2200Kg
This machine used to for carbonated drink production, and cooling water into cooled water, then use with mixer.

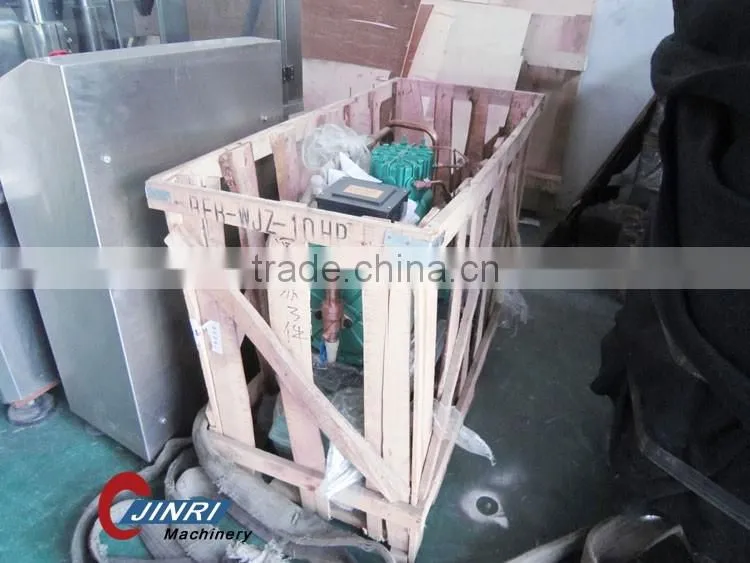

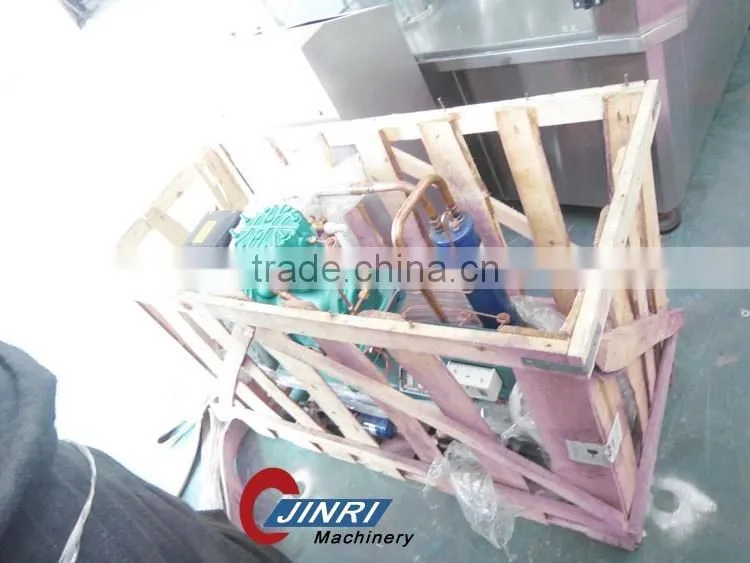

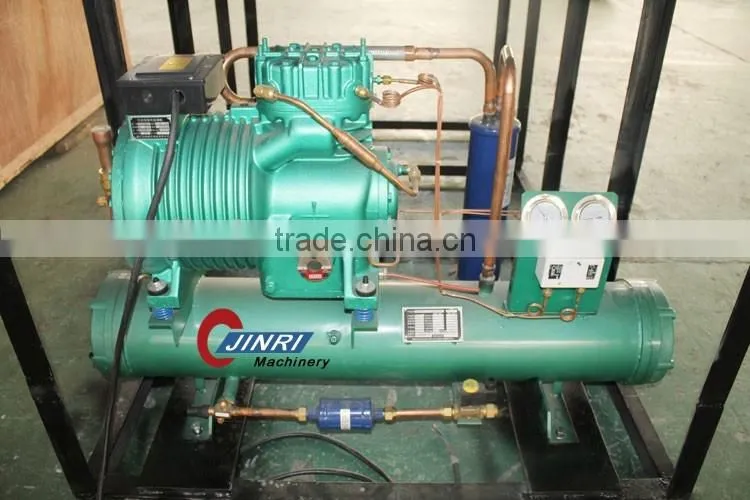

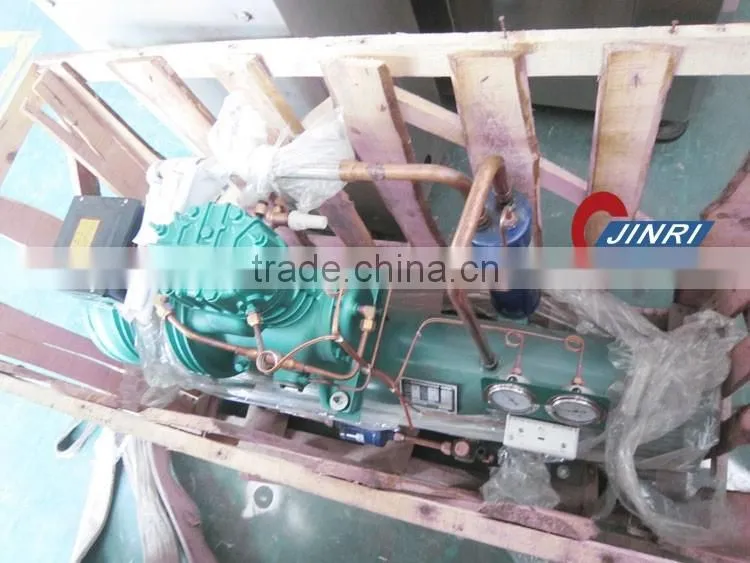

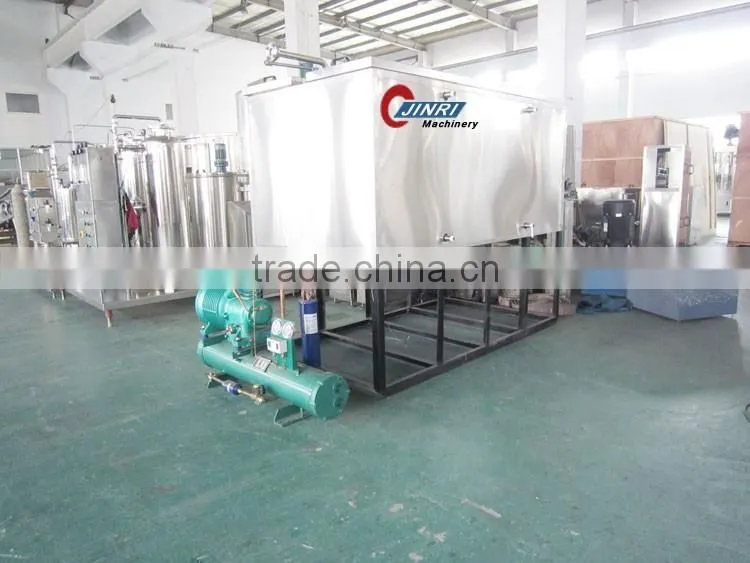

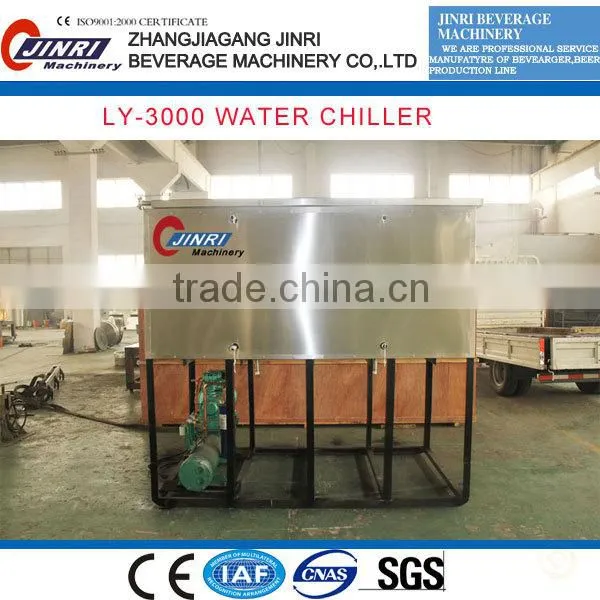

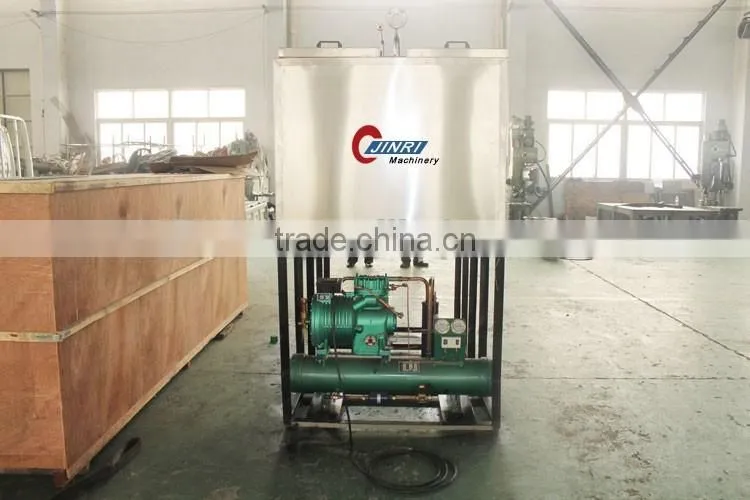

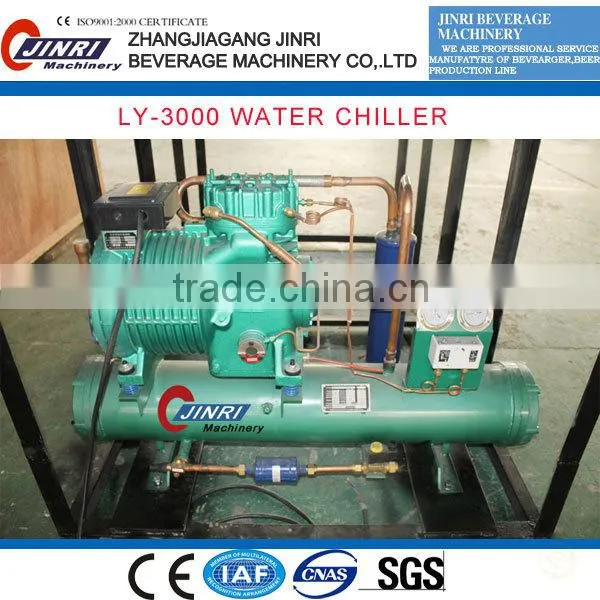

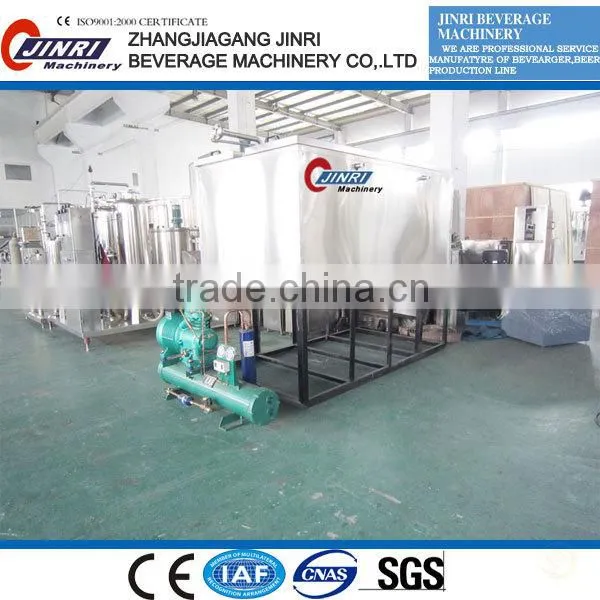

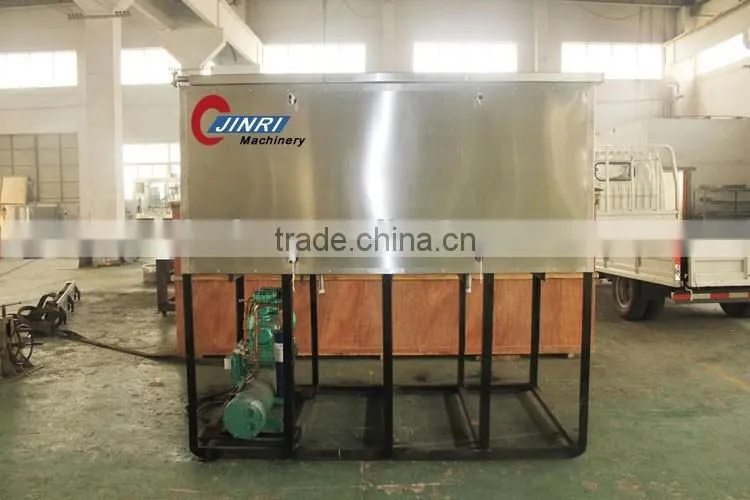

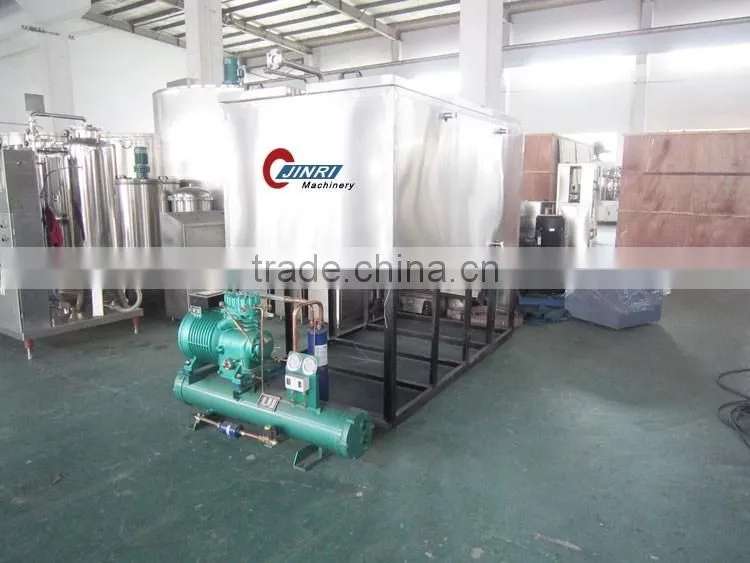

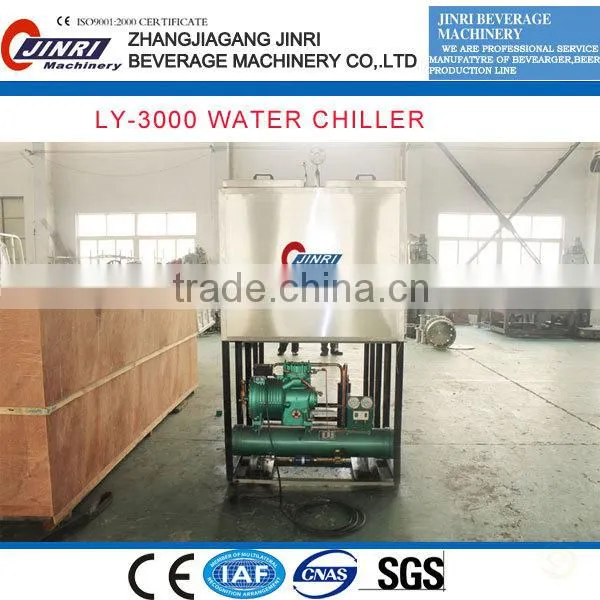

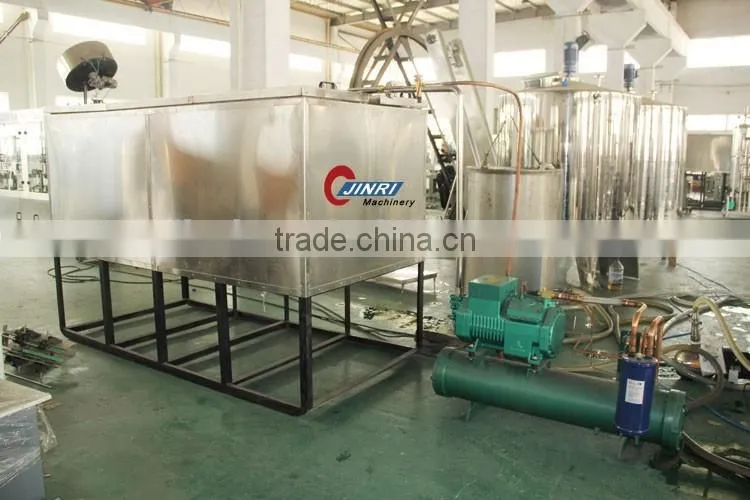

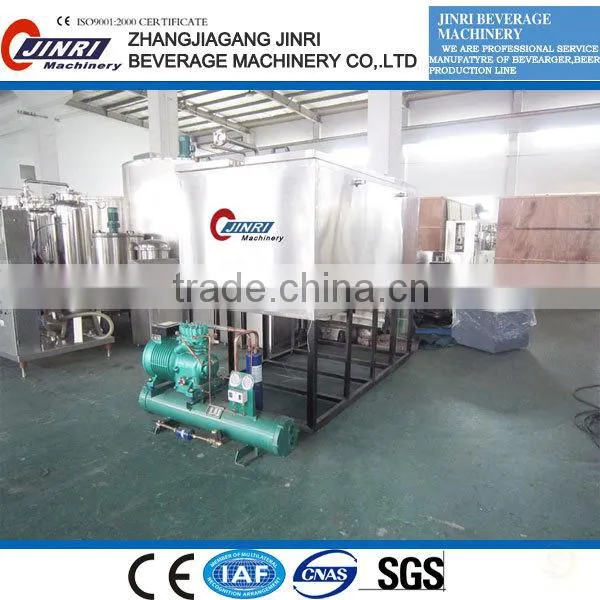

Image of the water cooled chiller :
Customer's service
1.JINRI company can provideo turn-key project for you, only you have any idea to start beverage factory plant.
2.JINRI company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3. JINRI company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc
After service
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance service.
Factory Show
Contact Us:
Q1: What drink will you need to fill?
A1: Water or juice or beer or carbonated drink or wine ?
Q2: What is your bottle size?
A2: 200ml? 330ml? 500ml? 600ml? 750ml? 1500ml? 2000ml? 5-10l? 3-5gallon?
Q3:What is your bottle type?
A3:PET bottle or Glass bottle or aluminum can?
Q4: What is your filling speed?
A4:1000 bottles per hour? or 2000 bottles per hour? or 3000 bottles per hour? or 5000 bottles per hour or .......
Q5: Will you need sole filling machine or the complete filling line?
A5: From water filters to preparation to filling to labeling to packing, also include bottle blowing
Q6:Are you a trading company or a manufactory?
A6:We are a manufactory,can give u best service .
Q6:What’s your guarantee or the warranty of the quality if we buy your machines?
A7:We offer you high quality machines with 1 year guarantee . we will give u spare part free
in 1 year
Q7:When can I get my machine after I paid?
A8:We will deliver the machines on time as the date we agreed both side.
Q9:How can I install my machine when it arrives?
A9:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q10:How about the spare parts?
A10:After we deal down all the things , we will offer you a spare parts list for your reference.
