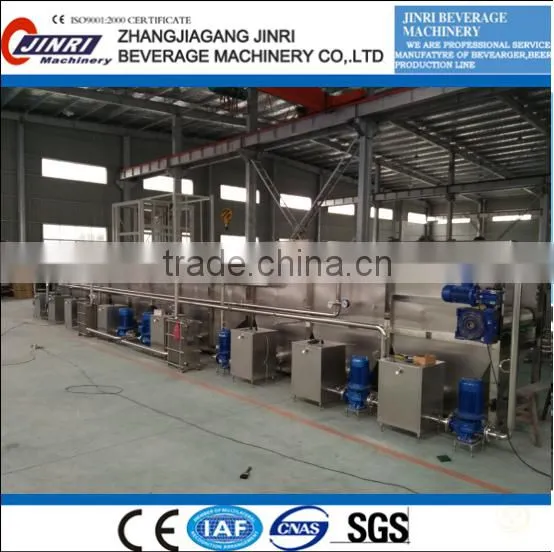

Continuous Tunnel Pasteurizer
Based on advanced technologies from Germany, Italy and Japan, this tunnel pasteurizer has characteristic of smooth running, lower heat conductivity, high temperature precision in all temperature sections. Its mesh belt and chain wheels are famous brand of REXNORD from America.
This tunnel pasteurizer has 5 temperature sections, so temperature difference between section is small. It could assure good sterilizing, effects, reduce bottle broken rate. Hot water is recycled to use in temperature sections in order to save heat energy and reduce water consumption. This tunnel pasteurizer could process bottled beverage or beer products, which completely conforms to relevant technologic requirements.
Main Technical parameters | |||
Model |
WP-3000 |
WP-6000 |
WP-10000 |
Capacity(B/H) |
2000-3000 |
5000-6000 |
9000-10000 |
Bottle inlet temp. |
3-5 |
||
Bottle outlet temp. |
<45 |
||
Sterilizing temp. |
62-85 |
||
Sterilizing time |
10 |
||
Steam pressure |
0.5-0.6MPa |
||
Width of belt(m) |
1.22 |
1.5 |
2 |
Circling water(M3/h) |
6.3 |
10 |
20 |
Water consumption(M3/h) |
1 |
1.5 |
2 |
Water pressure:≥0.2Mpa,water temp. is 20C | |||
Steam consumption(Kg/h) |
200 |
350 |
600 |
Overall dimension(mm) |
8000×1500×1650 |
8000×1800×1650 |
8000×2200×1650 |
Total weight(Kg) |
3800 |
5500 |
7000 |
