High quality soft drink mixing machine
QHS series beverage mixer is designed and made for improving the proportion of water,syrup and carbon dioxide.It adopts foreign advanced technology static mixer to lighten water layer,increase carbonizing time,assure mixing result and deoxying.It adopts high-quality water pump and SIEMENS electrical equipmentand other parts to form complete qutomatic control systerm. It has coordinating action,beautiful appearence,convenient washing,high qutomatic level and other advantaged. Itis suitable for mixing all kinds of drink,such as soda water,fruit juice,cola and hard drinks.
Character of High quality soft drink mixing machine :
1. Incessant production of carbonated drinks and non-carbonated drinks
2. Fully automatic syrup mixing system
3. Two homogenizing mixing tanks connect middle flow meter and syrup container fix by one in-feeding pipe.
4. Fully automatic hydraulic system is adopted for in-feeding of syrup system.
5. Syrup mixes by permutation pump
6. It is easy to adjust capacity and proportion of water and syrup.
7. Advantage o f the system:
8. Direct connection between existing syrup system or transportation standard barrels.
9. Process of syrup mixing, forming reach fully automatization, which is very economical.
10. Several syrup fix can be added because module structure is adopted.
11. It reached sanitary requirement because of its frame and flange connection.Sanitary standard parts of the equipments can have it sterilized in production( product changing time is reduced), circle steel horses structure is used.
| Model | QHS-1500 | QHS-2500 | QHS-3500 | QHS-5500 |
| Production Capacity(kg/h) | 1000-1500 | 2000-2500 | 3000-3500 | 5000-5500 |
| Mixing production scale (water:sugar) | 3:1-6:1 | 3:1-6:1 | 3:1-6:1 | 3:1-6:1 |
| content of carbon dioxide | 2.5-3.5 | 2.5-3.5 | 2.5-3.5 | 2.5-3.5 |
| Mixing temperature | <5 | <5 | <5 | <5 |
| power consumption (kw) | 1.5 | 2.97 | 3 | 5 |
| Overall Size(mm) | 1000×800×2000 | 1500×1000×1900 | 1700×1000×2200 | 2000×1500×3000 |

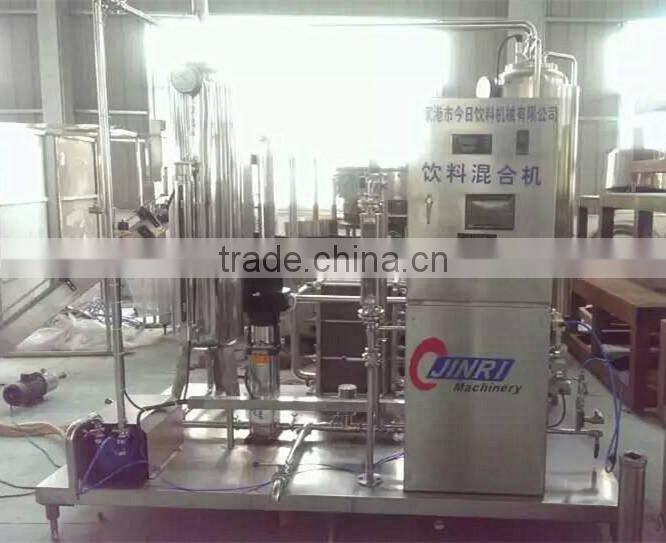

Pictures of High quality soft drink mixing machine
