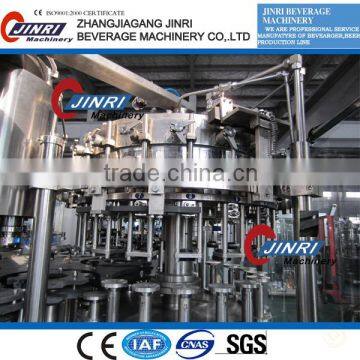

BGF18-18-6 Monoblock Beer equipment
This machine operation is faster and more stable due to the micronegative pressure filling operation of the new type is adopted. The output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine runs automatically, air conveyor system is adopted in bottle entry section and belt conveyor system is adopted in bottle exit section, Which can adjust speeds and coordinated with transducer of the main machine to make the operations of moving bottle forward steadily and reliably.It is convenient to operate with higher automation due to every parts for the machine is inspected to run with photo electrical detector .The machine is idea-preferred equipment for beverage makers.
JR-BGF18-18-6 Automatic Beer bottle filling machine
Introduction
we have developed the latest beer filling machine in accordance with the technological requirements for packing beer in glass bottles by adopting advanced technologies both at home and abroad. Meanwhile, we are able to provide complete high-efficiency beer filling production line for the beer breweries.
Description
This machine design on the basis of absorbing domestic and foreign advanced technology,and integrates washing,filling and capping function in one unit,and mainly for filling glass bottle carbonated drink,such as spirit,cola,cocktail,etc,adopts high precision machanical filling valves,has features of no bottle,no vacuuming.
Opening gear combined gear box transmission,with engaging and disengaging gear device,frequency conversion extends the speed modulation range.This machine has self oil lubrication device so than the lubrication points could be lubricated regularly in time.The machine is high efficiency,low noise and long life.The some parts of machine can be adjusted by different sizes bottle.the level is controlled by the electric probe to assure the precise the liquid level.
Features
1.With high precision me chanical filling valves,our beer filling machine stops vacuumizing when there are no bottles.
2.The beer filling machine is equipped with external mechanical valve,inside which there is no spring or sealing element.
3.With high pressure frothing device,it is capable of double vacuum-pumping.
4.The beer filling machine makes use of combined transmission by open gear and gearbox,and adopts frequency conversion stepless speed control,extending the speed modulating scope.
5.The machine has an antomatic lubricating device so that the lubrication points can be automatically lubricated regularly in time.Also,our beer filling machine has high transmission efficiency,low noise and long life
6.In case of the blowout due to poor quality of the bottles during gas or beer filling,the filling valve will automatically close and the auto-cleaning device will work to treat the broken bottles.
7.With a full stainless steel magnetic hopper,the unscrambling, feeding and discharging of crown caps are all performed by magnetic force.The caps are free from deforming,and can flow smoothly in large quantities during transmission.
8.The capper has the function of automatic deloading,which helps lower the bottle breakage.
9.For the centering guide of our beer filling machine,we adopt double guide-bar mechanism,with the function of pre-covering which allows stable and reliable bottle transferring.
10.The movement of the wine jars and capping heads is driven by electricity in order to fit bottles of different sizes.
11.The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling.

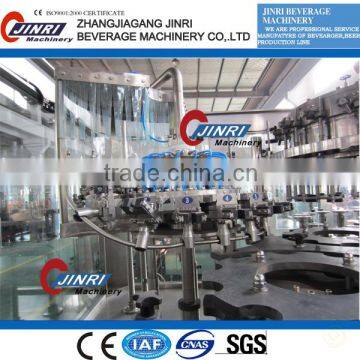

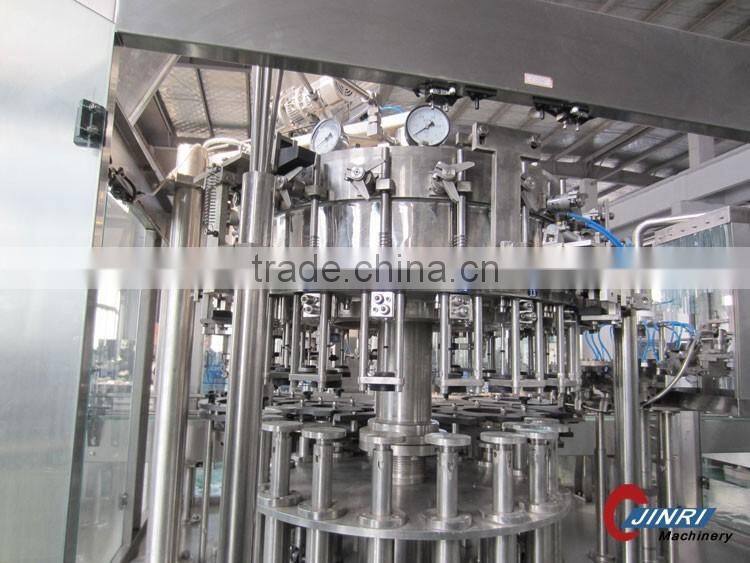

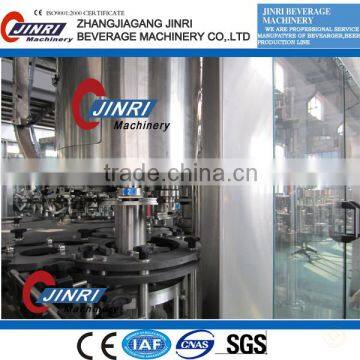

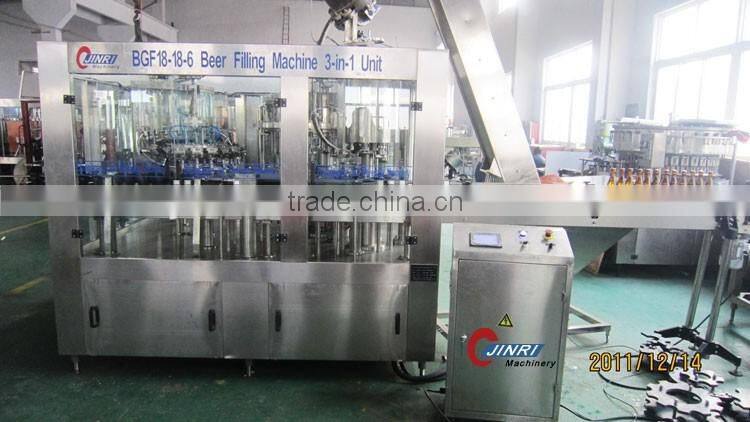

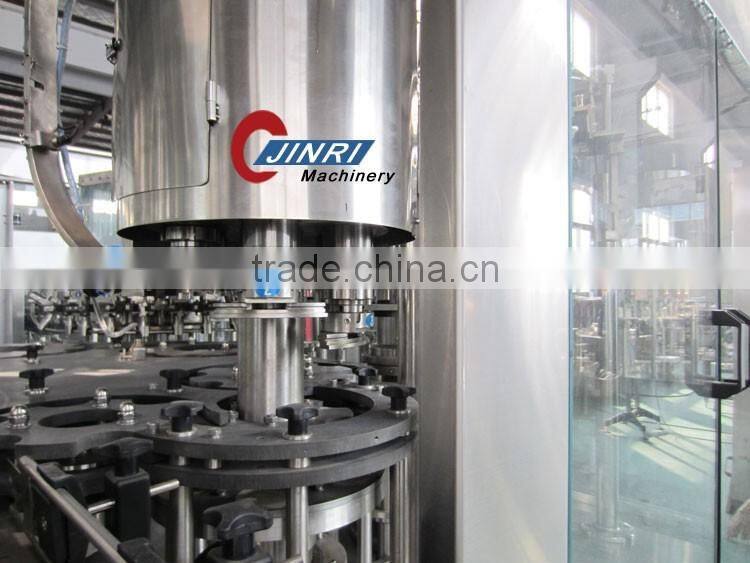

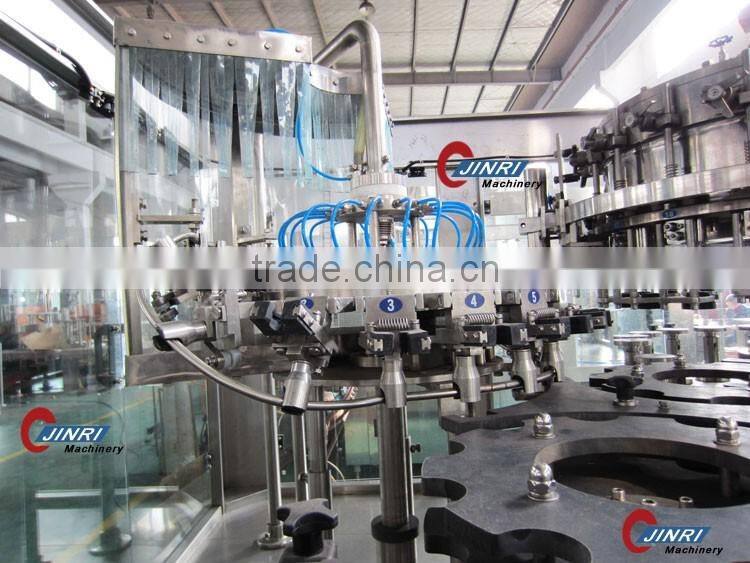

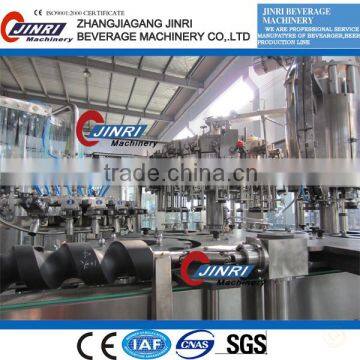

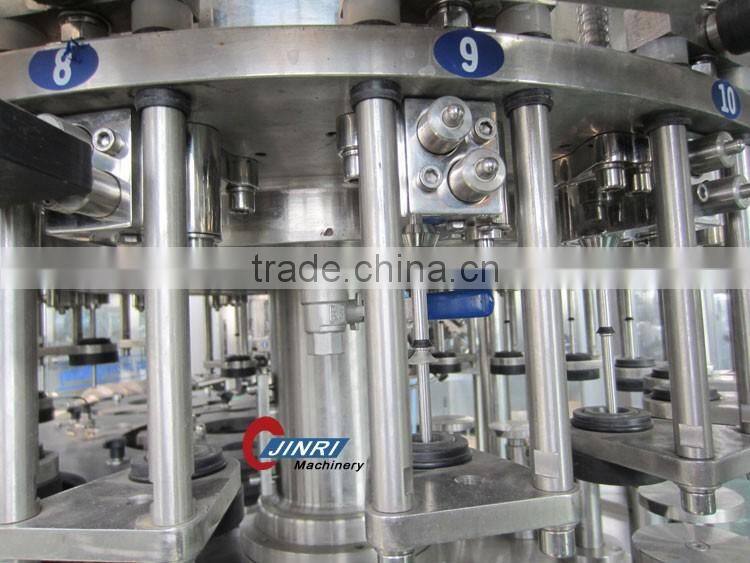

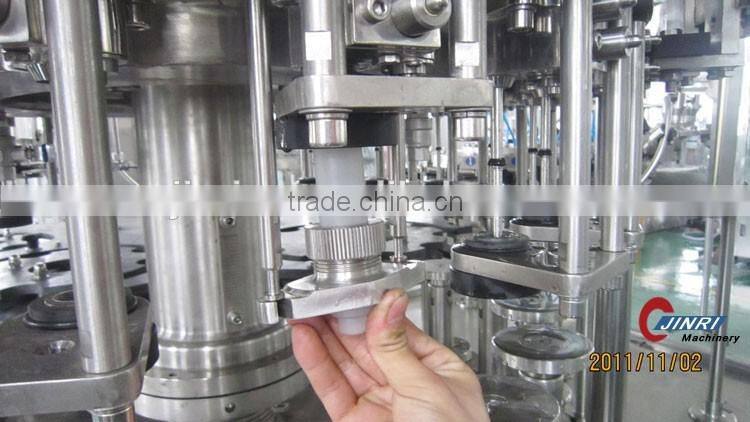

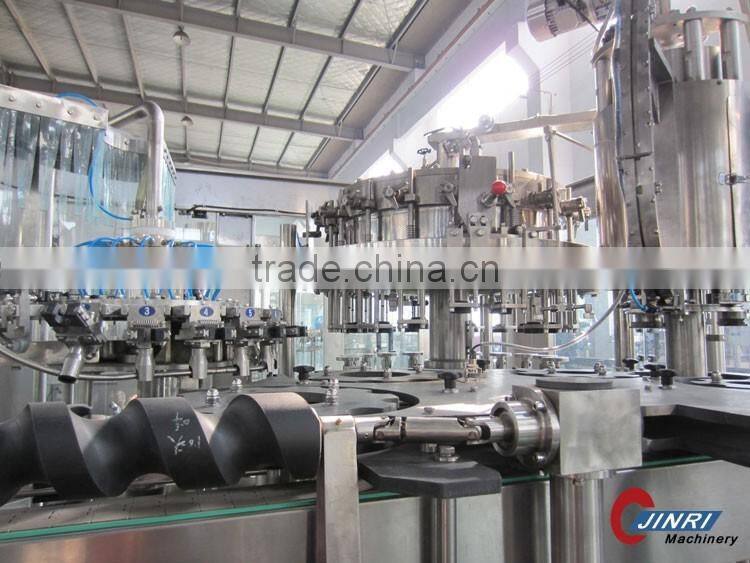

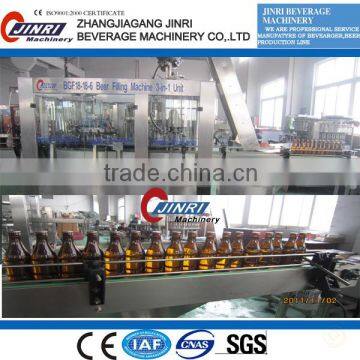

Image of the beer filling equipment
Main Technical Parameter
Model: |
BGF6-6-1 |
BGF14-12-4 |
BGF16-16-6 |
BGF18-18-6 |
BGF24-24-8 |
BGF32-32-10 |
BGF40-40-12 |
BGF50-50-12 |
BGF60-60-15 |
BGF72-72-18 |
Rinsing heads: |
6 |
14 |
16 |
18 |
24 |
32 |
40 |
50 |
60 |
72 |
Filling heads: |
6 |
12 |
16 |
18 |
24 |
32 |
40 |
50 |
60 |
72 |
Capping heads: |
1 |
4 |
6 |
6 |
8 |
10 |
12 |
12 |
15 |
18 |
Bottle size(ml): |
330ml |
330-750 |
||||||||
Capacity(B/H): |
500 |
1000 |
2000 |
3000 |
4000 |
6000 |
10000 |
12000 |
15000 |
18000 |
|
Bottle height (mm) : |
200~350 |
|||||||||
Bottle diameter:(mm) |
Φ52~Φ84 |
|||||||||
|
Aseptic air consumption (m³/Min): |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
1.0 |
1.0 |
1.0 |
|
CO2 consumption (g/100L): |
16 |
16 |
16 |
18 |
18 |
18 |
18 |
18 |
18 |
18 |
|
Vacuum pump (m³/h): |
0.15 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.4 |
0.4 |
0.4 |
0.4 |
|
Blowing: (m³/h) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
1 |
1.5 |
1.5 |
1.5 |
|
Main motor (kw): |
0 .37 |
2.2 |
3 |
3 |
4 |
4 |
5.5 |
7.5 |
11 |
15 |
|
Spray pump (kw): |
0 .37 |
0 .37 |
0 .37 |
0 .37 |
0 .55 |
0 .55 |
0 .55 |
0 .55 |
0.55 |
0.75 |
|
Vacuum motor (kw): |
0 .75 |
1.5 |
2.2 |
2.2 |
3 |
3 |
5.5 |
7.5 |
11 |
15 |
|
Hopper motor (kw): |
0.18 |
0.18 |
0.18 |
0 .18 |
0 .18 |
0 .18 |
0.37 |
0.37 |
0.37 |
0.37 |
|
Dimension (mm): |
1520×1125 ×2350 |
1900×1700 ×2500 |
2200×1830 ×2750 |
2500×1800 ×2300 |
2710×2100 ×2500 |
4000×2335 ×2800 |
4200×3000× 2700 |
5300×3800 ×2700 |
|
|
Weight(KG): |
1300 |
2500 |
3000 |
3000 |
5000 |
7000 |
8000 |
10000 |
3000 |
3000 |
Customer's service
1.JINRI company can provideo turn-key project for you, only you have any idea to start beverage factory plant.
2.JINRI company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3. JINRI company give you the best quotation for all kinds of beverage production, only you can tell me which
kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle
material, pet or glass,etc
After service
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance
service.
Factory Show
Contact Supplier
Q1: What drink will you need to fill?
A1: Water or juice or beer or carbonated drink or wine ?
Q2: What is your bottle size?
A2: 200ml? 330ml? 500ml? 600ml? 750ml? 1500ml? 2000ml? 5-10l? 3-5gallon?
Q3:What is your bottle type?
A3:PET bottle or Glass bottle or aluminum can?
Q4: What is your filling speed?
A4:1000 bottles per hour? or 2000 bottles per hour? or 3000 bottles per hour? or 5000 bottles per hour or .......
Q5: Will you need sole filling machine or the complete filling line?
A5: From water filters to preparation to filling to labeling to packing, also include bottle blowing
Q6:Are you a trading company or a manufactory?
A6:We are a manufactory,can give u best service .
Q7:What’s your guarantee or the warranty of the quality if we buy your machines?
A7:We offer you high quality machines with 1 year guarantee . we will give u spare part free
in 1 year
Q8:When can I get my machine after I paid?
A8:We will deliver the machines on time as the date we agreed both side.
Q9:How can I install my machine when it arrives?
A9:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q10:How about the spare parts?
A10:After we deal down all the things , we will offer you a spare parts list for your reference.
