EMHEATER Auto Drive Frequency Inverter Vfd/vsd ac Drive 220V/ 380V 5.5KW by CE

EMHEATER Auto Drive Frequency Inverter Vfd/vsd ac Drive 220V/ 380V 5.5KW by CE thumbnail-1
EMHEATER Auto Drive Frequency Inverter Vfd/vsd ac Drive 220V/ 380V 5.5KW by CE photo-1
US$ 70 - 100,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
EMHEATER
Model Number:
EM9-G3-7d5
Contact Supplier Request Quote Chat Now
Shenzhen EMHEATER Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name EMHEATER
Model Number EM9-G3-7d5
Output Power 1 - 200KW
Output Type Triple
Size 125/170/162 (mm)
Weight 4.5KG
Input Voltage 380V
Output Voltage 0~380V
Type Other, AC/AC inverter
Output Frequency 0~500Hz
Output Current 17A

Specifications

1: Built-in RS485 communication port
2: All model are integrated IGBT

EM9 Series Vector Control Inverter

Feature:

  • Input Voltage Range: 220V/380/460/690V+15%
  • Input Frequency Range: 47 ~ 63Hz
  • Output Voltage Range: 0 ~ rated input voltage
  • Output Frequency Range: 0 ~ 600Hz
  • Overload Capacity: 60s with 150% of rated current, 10s with 180% of rated current.
  • Self study motor parameter function
  • Control Mode: Sensorless Vector Control (SVC); Constant Torque; V/F Control.
  • Speed Accuracy: Sensorless Vector Control : -5% ~ +0.5% of maximum speed (SVC)
  • Starting Torque: 150% of rated torque at 0.5Hz (SVC).
  • Programmable Timing Running(Simple PLC)
  • All model are integrated IGBT
  • The malfunction ratio is 0.1% within 18 months warranty.

EMHEATER auto drive frequency inverter vfd/vsd ac drive 220V/ 380V 5.5KW by CE

Model Introduction:

EMHEATER auto drive frequency inverter vfd/vsd ac drive 220V/ 380V 5.5KW by CE

Specification:

Items

Specification

Input

Rated input voltage

Single phase 220 V/Three phase 220/380/460/690V + 15%,47~ 63 Hz

Output

Maximum output voltage

Maximum output voltage is same with input power

Output feature

100% continuous output

Basic control

function

Over-load capacity

150% rated current 1 minute, 180% rated current 10 seconds

Control mode

Sensorless vector control, V/F control, Torque control optimization vector PWM

Input mode

Frequency (speed) input. Moment input. Location input

Operation mode

Keypad. External terminal (2 line control. Three line control). RS485

Frequency setting mode

Digital input. Analog input. Multiple speed. PID set. Serial communication RS485 setting, etc

Frequency control range

0.00-600.00 Hz

The resolution of the input frequency

Digital: 0.01 Hz simulation: 0.05 Hz

Acc./ Dec. time

0-3600 seconds

Carrier frequency

0.5 K - 15.0 KHz

Voltage/frequency characteristic

Rated voltage 20% - 100% adjustable; The fundamental frequency of the 20 Hz ~ 600 Hz adjustable

Torque boost

Automatic torque boost. Fixed torque boost curve, arbitrary V/F curve optional

Start torque

0.5 Hz / 150% rated torque

Speed control ratio

1: 100(no sensor vector)

Moment control accuracy

Plus or minus 0.5% maximum speed

Output voltage adjustment

AVR function effectively, keep output voltage stable

Current automatic limiter

Automatic limit output current, avoid frequent over current trip

DC brake

Brake frequency: 0.1 ~ maximum frequency braking time 0 ~ 50 seconds brake current: 0 ~ 150% rated

Peripheral port function

Programmable digital input

6 channels programmable terminal input

Programmable analog input

AI1:0 ~ 10 V input, AI2:0 ~ 10 V or 0 to 20 mA input

Open collector output

1 channel output

Relay output

1 channel output

Analog output

Two ways of output, 0/4 ~ 20 mA and 0 ~ 10 V

Keyboard display

LED display

LED digital tube display frequency converter of relevant information

LCD display

LCD liquid crystal display converter code information

Parameter copy

Can upload and download converter code information, realizing fast parameter copy

Protection

Protection function

Short circuit, the flow, overvoltage, undervoltage, lack of phase, overheating, external fault, communication malfunction,PID feedback fault, brake unit fault, the motor self learning problem and so on 25 studies fault protection.

Use condition

Installation site

Less than 1000 meters above sea level, clean, no oil mist, no corrosive gas, no direct sunlight

Applicable ambient

-10 °C ~ +40°C, 20% ~ 90% RH (no frost)

Vibrate

Less than 0.5 g

Storage ways

-25 °C ~ +65°C

Installation ways

Wall (0.75 KW ~ 132 KW), floor type electric control cabinet (160 ~ 400 KW)

Protection level

IP20

Type of cooling

Forced air cooling (controlled)

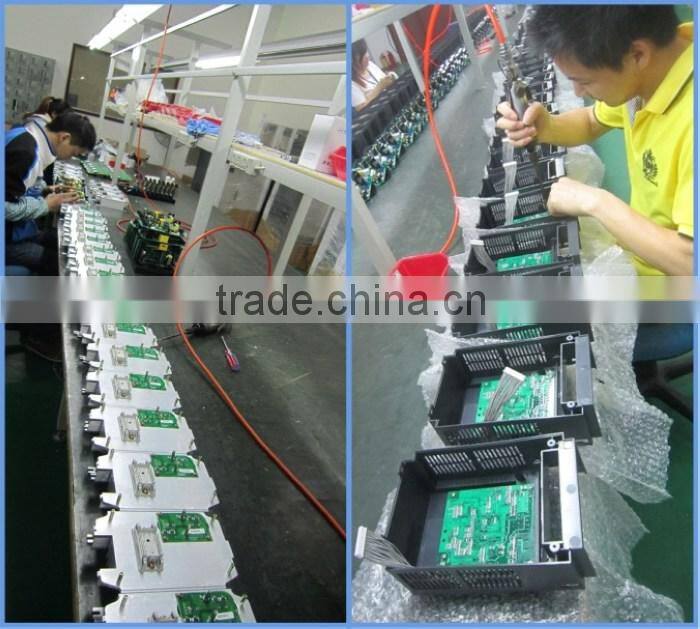

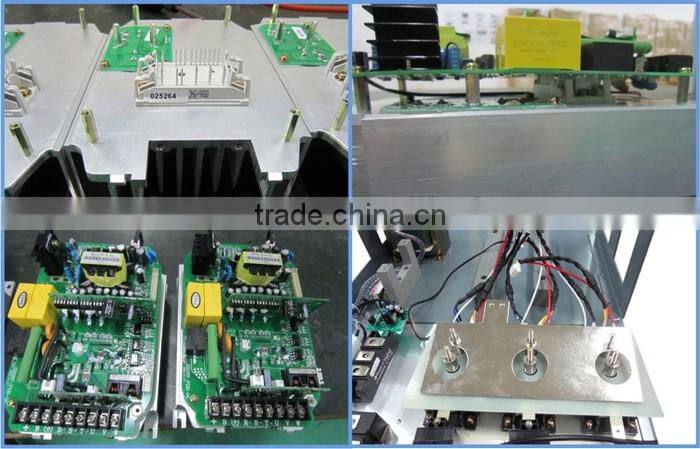

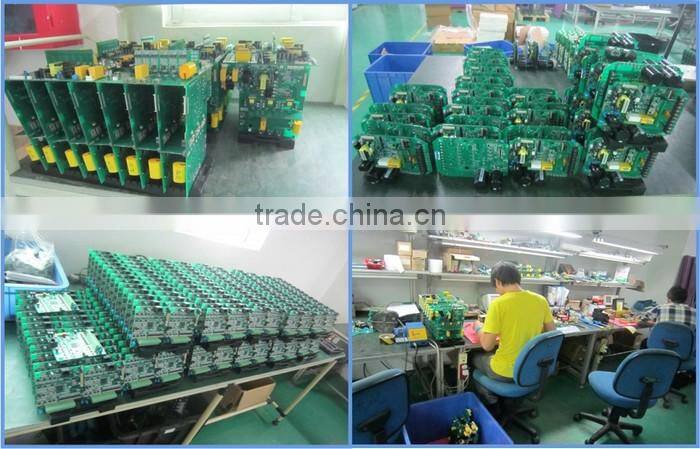

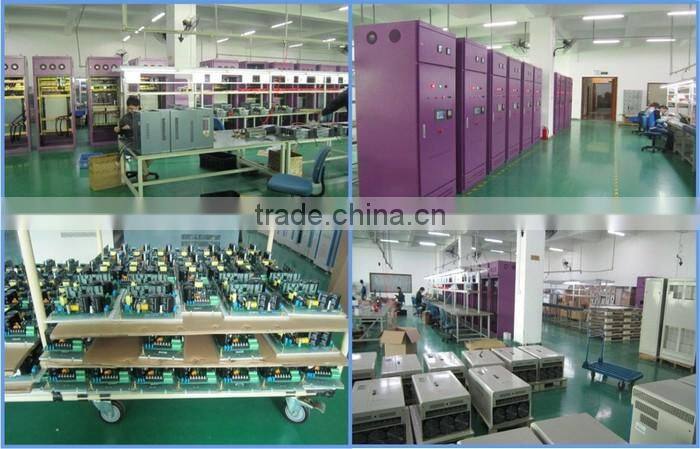

Factory to shoot:

EMHEATER auto drive frequency inverter vfd/vsd ac drive 220V/ 380V 5.5KW by CE

EMHEATER auto drive frequency inverter vfd/vsd ac drive 220V/ 380V 5.5KW by CEEMHEATER auto drive frequency inverter vfd/vsd ac drive 220V/ 380V 5.5KW by CEEMHEATER auto drive frequency inverter vfd/vsd ac drive 220V/ 380V 5.5KW by CEEMHEATER auto drive frequency inverter vfd/vsd ac drive 220V/ 380V 5.5KW by CE

Application:

Product series: EM9 - G1 / G3
Power range: 0.75 KW ~  630 KW
Areas of application: electronics, textile, light industry, building materials, food, machinery, printing and dyeing, petrochemical, paper, logistics transportation, Wire drawing machine, winding machine, blow molding, chemical fiber, tobacco, grinder, mixer, extruding machine, injection molding machine, chemical industry, etc.


Product series: EM9 - P3
Power range: 1.5 KW ~ 630 KW
Areas of application: water conservancy, electric power, municipal, chemical, mining, boiler fan, central air conditioning, sewage disposal blast Machine, iron and steel industry, mine water pump + fan exhaust system, cement industry, constant pressure water supply, etc

EMHEATER auto drive frequency inverter vfd/vsd ac drive 220V/ 380V 5.5KW by CE
