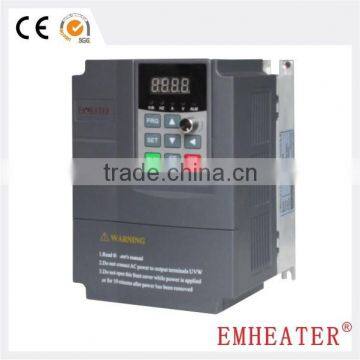

EM8-G1-1d5 Single Phase 220v 1.5 kW Variable Frequency Drive/VFD ac Frequency Inverter 50Hz/60Hz

EM8-G1-1d5 Single Phase 220v 1.5 kW Variable Frequency Drive/VFD ac Frequency Inverter 50Hz/60Hz thumbnail-1
EM8-G1-1d5 Single Phase 220v 1.5 kW Variable Frequency Drive/VFD ac Frequency Inverter 50Hz/60Hz thumbnail-2
EM8-G1-1d5 Single Phase 220v 1.5 kW Variable Frequency Drive/VFD ac Frequency Inverter 50Hz/60Hz photo-1
EM8-G1-1d5 Single Phase 220v 1.5 kW Variable Frequency Drive/VFD ac Frequency Inverter 50Hz/60Hz photo-2
US$ 70 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
EMHEATER
Model Number:
EM8-G3/P3
Contact Supplier Request Quote Chat Now
Shenzhen EMHEATER Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name EMHEATER
Model Number EM8-G3/P3
Output Power Other, 0.75kw-630kw
Output Type Triple
Size As per product
Weight As per product
Input Voltage 200V-240V;320V-480V;560V-690V
Output Voltage 200V-240V;320V-480V;560V-690V
Type DC/AC Inverters
Output Frequency 0-500Hz
Output Current 2.5A-1100A

Products Introduction:



EM8 series V/F control frequency inverter is a new high performance of products. This inverter can realize high torque, high precision, wide variable speed and low noise drive. And have wide application, EM8 series frequency inverter can meet most customer’s requirements.



EM8-G1-1d5 single phase 220v 1.5 kW variable frequency drive/VFD ac frequency inverter 50Hz/60Hz



Products Features:



1: Wide Voltage Range: 200~240V; 320 ~ 480V.



2: Input Frequency Range: 45 ~ 65Hz.



3: Output Voltage Range: 0 ~ rated input voltage.



4: Output Frequency Range: 0 ~ 500Hz.



5: Overload Capacity: 60s with 150% of rated current, 2s with 180% of rated current.



6: From 0.75 ~ 7.5KW Plastic house; 11 ~ 630KW is metal house.



7: Control Mode: High Quality V/F Control.



8: Speed Accuracy: V/F + 0.5% of maximum speed.



9: 20 channels for frequency setting.



10: Analog signal :0 ~ 10V,-10V ~ 10V,0 ~ 20mA.



11: Pulse setting input: 0~50Khz.



12: Built-in RS485 communication port.



13: All small KW model are integrated IGBT.



14: The malfunction ratio is 0.8% within 18 months warranty.



EM8-G1-1d5 single phase 220v 1.5 kW variable frequency drive/VFD ac frequency inverter 50Hz/60Hz

EM8-G1-1d5 single phase 220v 1.5 kW variable frequency drive/VFD ac frequency inverter 50Hz/60Hz

EM8-G1-1d5 single phase 220v 1.5 kW variable frequency drive/VFD ac frequency inverter 50Hz/60Hz

EM8-G1-1d5 single phase 220v 1.5 kW variable frequency drive/VFD ac frequency inverter 50Hz/60Hz

EM8-G1-1d5 single phase 220v 1.5 kW variable frequency drive/VFD ac frequency inverter 50Hz/60Hz



General Model Introduction:



Model No.

Voltage

Power

Current

G.W

Inverter size

G series

P series

(V)

(KW)

(A)

(KG)

H*W*D(mm)

EM8-G1-d75



1AC220V

-15% ~ +15%

0.75

5

3

170*108*145

EM8-G1-1d5



1.5

7.5

EM8-G1-2d2



2.2

10

EM8-G3-d75

EM8-P3-1d5

3AC380V

-15% ~ +15%



0.75

2.5

3

170*108*145

EM8-G3-1d5

EM8-P3-2d2

1.5

3.7

EM8-G3-2d2

EM8-P3-004

2.2

5

EM8-G3-004

EM8-P3-5d5

4.0

8.5

5

260*100*194

EM8-G3-5d5

EM8-P3-7d5

5.5

11

8

290*130*199

EM8-G3-7d5

EM8-P3-011

7.5

17

EM8-G3-011

EM8-P3-015

11

25

15

390*190*242

EM8-G3-015

EM8-P3-018

15

33

EM8-G3-018

EM8-P3-022

18.5

39

EM8-G3-022

EM8-P3-030

22

45

25

450*190*252

EM8-G3-030

EM8-P3-037

30

60

EM8-G3-037

EM8-P3-045

37

75

45

590*260*312

EM8-G3-045

EM8-P3-055

45

90

EM8-G3-055

EM8-P3-075

55

110

EM8-G3-075

EM8-P3-093

75

150

50

590*300*312

EM8-G3-093

EM8-P3-110

93

176

95

765*260*327

EM8-G3-110

EM8-P3-132

110

210

EM8-G3-132

EM8-P3-160

132

250

140

916*300*347

EM8-G3-160

EM8-P3-185

160

300

EM8-G3-185

EM8-P3-200

185

340

EM8-G3-200

EM8-P3-220

200

380

EM8-G3-220

EM8-P3-250

220

415

300

1172*790*397

EM8-G3-250

EM8-P3-280

250

470

EM8-G3-280

EM8-P3-315

280

520

EM8-G3-315

EM8-P3-350

315

600

EM8-G3-350

EM8-P3-400

350

640

450

1828*981*496

EM8-G3-400

EM8-P3-500

400

690

EM8-G3-500

EM8-P3-630

500

860

EM8-G3-630



630

1100



EM8-G1-1d5 single phase 220v 1.5 kW variable frequency drive/VFD ac frequency inverter 50Hz/60Hz

Application fields:



mechanics, electronics, metallurgy, mining, petrochemical, transportation, building materials, municipal, metal processing, textile, printing and dyeing, paper making, Injection machine, central air conditioning, numerical control machine tool, air-compressor, extruding machine, fan and pump, blower, injection machine, air conditioner for large buildings; wastewater treatment system; water supply system for large buildings; public water supply system and other industries and fields.



Knitting Machine, compressor, extruding machine, injection machine,electrical motor,braiding machine,pressure fan, forced draught blower, blower,blowing machine,blow molding machine,root’s blower,film blowing machine,cutterbar, cut-off machine,slitter,Cutting machine,conveyor,pump,grinder, crusher,glazing machine, polisher, polishing machine,laundry-drier,drying machine,ball crusher,ball grinding mill,drawing machine.



EM8-G1-1d5 single phase 220v 1.5 kW variable frequency drive/VFD ac frequency inverter 50Hz/60Hz



EMHEATER----CE;SGS Approved good quality servo motor and drive/frequency inverter/soft starter with best prices !



Waiting for your kindly enquiry !
