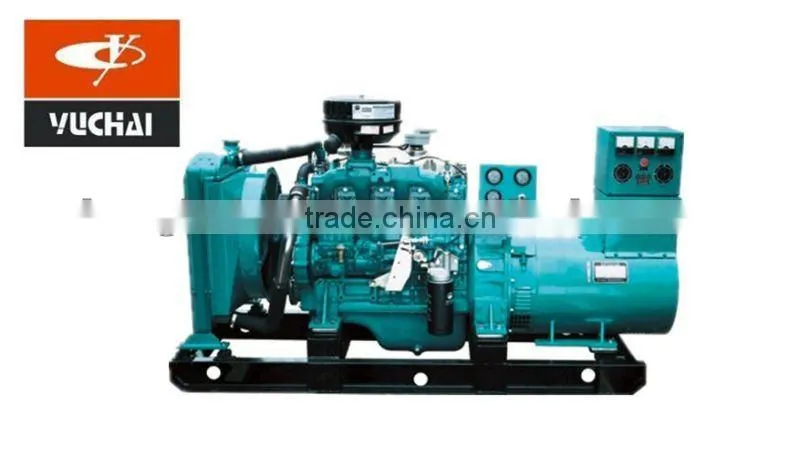

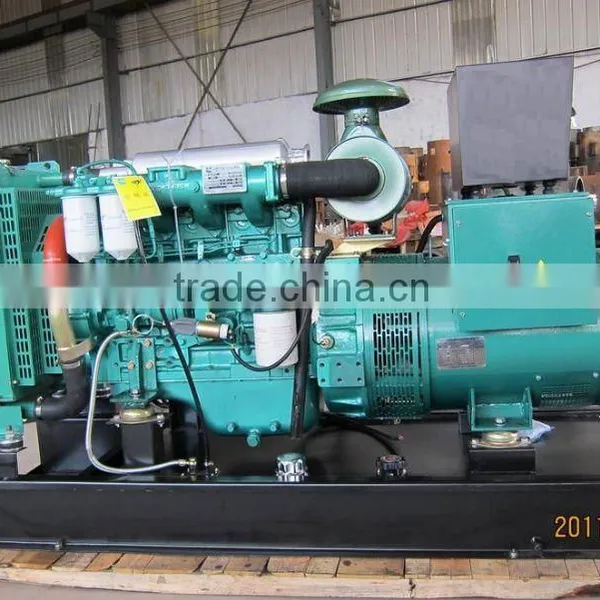

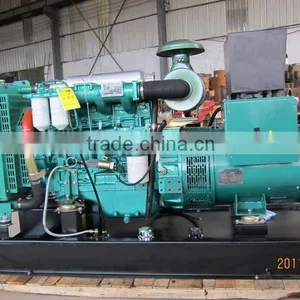

Kangbai Used Generator

Name: Kangbai Used Generator
Brand: Baihua FMW DD
SKU: 131672571

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Baihua FMW DD

Model Number:

Fuan Kangbai Motor Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou Mawei

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Baihua FMW DD

Model Number GF

Output Type AC Three Phase

Speed 1500/1800

Frequency 50/60

Rated Power 30KW-800KW

Rated Voltage 400V

Rated Current 54A-1445A

Specifications

1. Kangbai used generator----Water cooled
2.All kinds of alternators are available.
3.Good after-sales service.

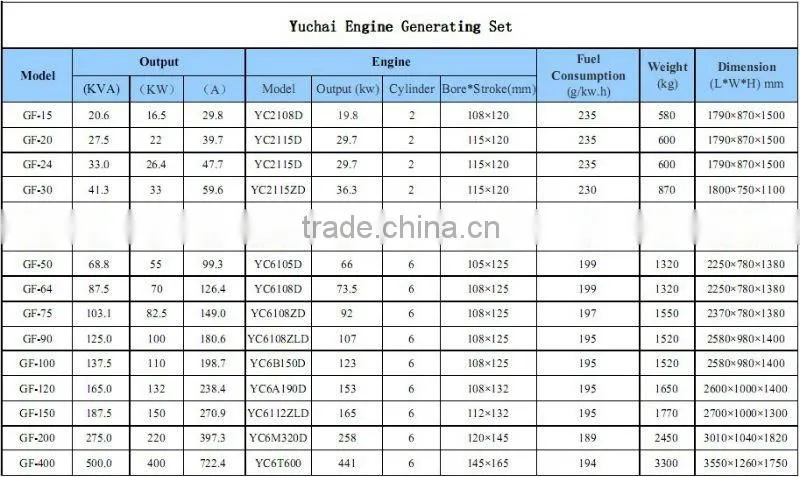

Main Technical Parameter of Kangbai used generator as follows:

Main Performance Index and Advantages
1.	10% overload for 1 hour work and 100% load for continuous work
2.	Alternator material: 100% copper wire, cold-rolling steel, H immersion lacquer
3.	Sound Level ≤70dB from 7 meters (in case of silent-type generators)
4.	Free-load voltage setting range≥(95-105)%Un
5.	Steady-state voltage regulation rate≤±1.0%
6.	Transient-state voltage regulation rate≤+20%/-15%
7.	Voltage recovery time≤1.0S
8.	Voltage fluctuation ratio≤±0.5%
9.	Steady-stage frequency regulation rate≤±5%
10.	Transient-state frequency regulation rate≤±10%
11.	Frequency fluctuation ratio≤0.5%
12.	Cold/Hot-state voltage ratio≤0.2%
13	Insulating resistance tested in accordance with GB5226.1-2002-19.3.
14.	Withstand-voltage tested in accordance with GB755-2000-8.1(With 1500V by 60S).
15.	All electric spares tested in accordance with GB5226.1-2002-19.6.
16.	Mechanical security tested in accordance with GB/T820.8-2002-6.3
17.	Stand-fire/fireproofing tested in accordance with GB/T2820.8-2002-6.4/6.5
18.	Whole production standards: ISO8528, ISO1105, ISO3046, GB/T2820, GB755, BS5000, NAMAMG-22, YD/T502.
19.	Our power station can be applied to :
	*National Defence Facilities,
	*Telecommunication Service,
	*Hotels and mansions,
	*Mining bases,
	*Hospitals,
	*Industrial Factories,
	*Computer Systems,
	*Metro Systems,
	*Schools, and so on.
