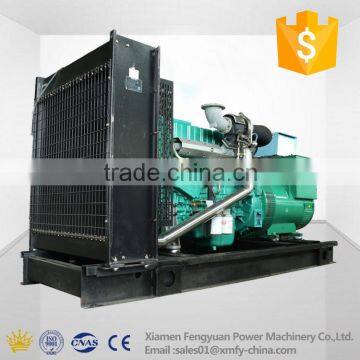

China Yuchai three phase brushless 400kw 500kva diesel genset with LCD protect system
USD $31,500 - $33,000
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- Fuzhou
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin: | Fujian, China | Brand Name: | Yuchai | Model Number: | GF-400 |
| Output Type: | AC Three Phase | Speed: | 1500rmp | Frequency: | 50/60HZ |
| Rated Power: | 400kw/500kva | Rated Voltage: | 400V/230V Adjustable | Rated Current: | 720A |
Product Description

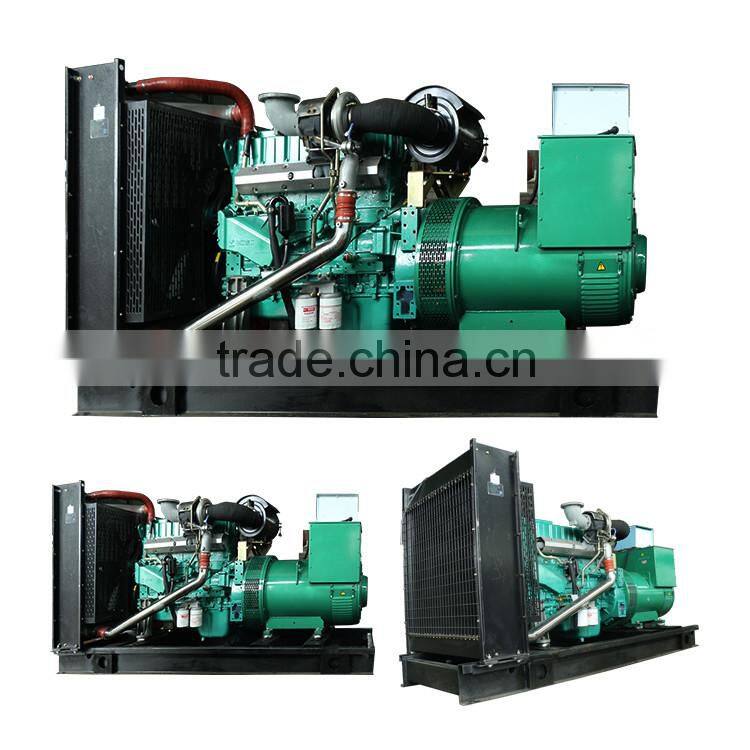

China Yuchai three phase brushless 400kw 500kva diesel genset with LCD protect system
| Genset Information | |||
| Model | GF-400 | Net dimensions (mm) | 3400*1390*1780mm |
| Prime Output(kw/kva) | 400kw/500kva | Gross weight (kg) | 3650kg |
| Rated voltage(V) | 400V/230V(adjustable) | Net weight (kg) | 3450kg |
| Rated current(A) | 720A | Noise (dB) | 95DB(A) |
| Electric Parameter | 50/60HZ,1500RPM,400/230V,Power Factor 0.8(Lagging),6 Pole | ||
| Generator configurations | |||
| Engine Brand: | Yuchai | Rated output(kw): | 400kw/500kva |
| Engine Model: | YC6T600L-D20 | Bore (mm) | 145*165mm |
| Induction System | Turbocharging | Cylinder No. | 6 |
| Cooling method | Closed circulating water cooling | Speed | 1500rpm |
| Compression Ratio | 15:01 | Governor | 110% |
| Alternator configurations | |||
| Alternator Brand: | YONGFENGSHENG | Protection Grade | IP22 |
| Alternartor Model: | TFW-400 | Output Type | Three phase four wire type y connection |
| Rated output (kw/kva) | 400kw/500kva | Excitation method | AVR(Automatic voltage regulator) |
| Rated voltage(V) | 400V/230V | Frequency (HZ) | 50/60HZ |
| Insulation Grade | H Class | Power Factor | COS=0.8 |
