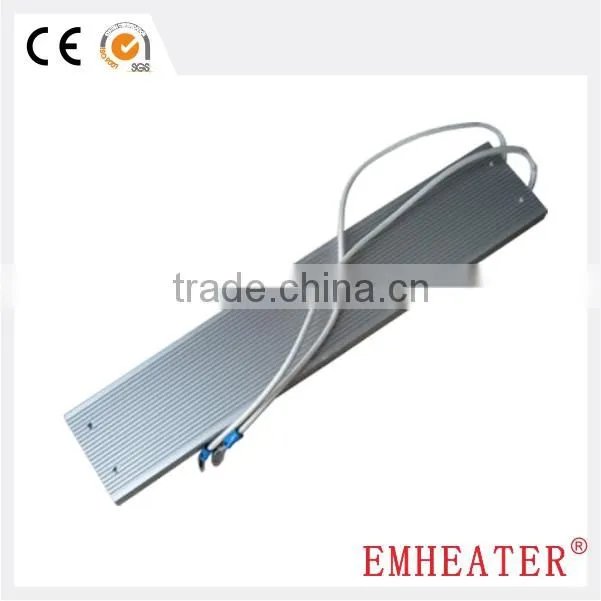

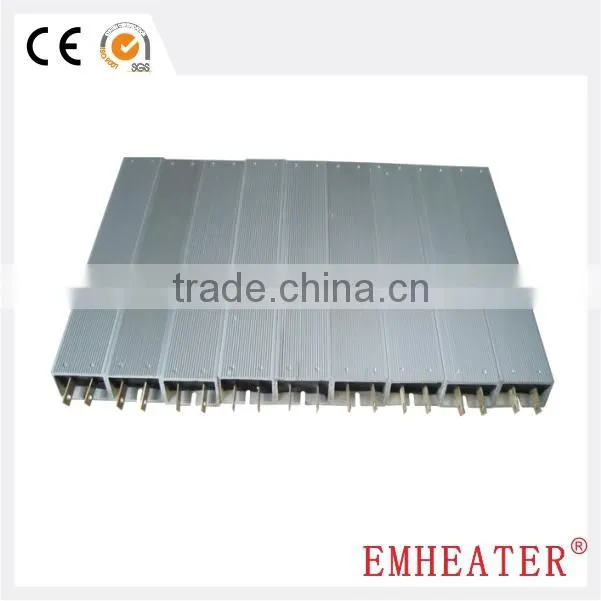

Aluminum Resistor, Ultra Aluminum Resistor, Aluminum Fixed Resistor

Name: Aluminum Resistor, Ultra Aluminum Resistor, Aluminum Fixed Resistor
Brand: EMHEATER
SKU: 131670513
Availability: InStock

Aluminum Resistor, Ultra Aluminum Resistor, Aluminum Fixed Resistor thumbnail-1

Aluminum Resistor, Ultra Aluminum Resistor, Aluminum Fixed Resistor photo-1

US$ 6.5 - 85 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

EMHEATER

Type:

Fixed Resistor

Contact Supplier Request Quote Chat Now

Shenzhen EMHEATER Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name EMHEATER

Type Fixed Resistor

Technology Thick Film

Package Type Surface Mount

Resistance 0.01Ω-100KΩ

Resistance Tolerance ,±1%

Rated Power 0.5W-12000W

1. Material Feature:

The resistor material is superior high quality alloy wire.

Encapsulation material is Low temperature performance quartz sand.

The aluminum type is high quality industrial 6063 type aluminum.

2. Technical Specification (Aluminum Resistor):

1.OEM
2.ISO 9001:2008
3.Prodcts Diversity.
4.Strict production process and professional sales.

Production name	Aluminum resistor, wire wound resistor, Ultra aluminum resistor, Aluminum Fixed Resistor, Braking Resistor
Power rating	0.5W-12000W
Resistance value	0.01Ω-100KΩ
Resistance tolerance	±0.1%,±0.5%,±1%,±5%,±10%
Features	1.High insulating capacity, encapsulation by Low temperature performance quartz sand material, good performance in vibration ,humidity and heat and good dissipation. 2.Thickness:5mm,8mm,10mm,12mm,15mm,20mm (For customer requests, length and width can be changed). 3.Widely used in power supply, transducer, elevator, arena audio and Lifting, Braking, Ship ,Load equipment, high requirement equipment Industry, etc. 4.Multi connection form will be easily to fix
Common specification	60W50Ω, 60W100Ω, 80W20Ω, 100W100Ω, 200W50Ω, 300W, 500W, 1000W, 2000W, etc.
Performance	Test item	Test condition	performance
	Temperature coefficient	JIS-C-5202 5-2	±250PPM/°C Max
	Power rating load	JIS-C-5202 5-4 40°C,power rating 1H	ΔR≤±(1%+0.1Ω)Surface temperature ≤350°C
	Short-term overload	JIS-C-5202 5-5 1000% rated power 5s	Free or appearance or structural irregularity ΔR≤±(2%+0.1Ω)
	Insulation resistance	JIS-C-5202 5-6 1000V DC	100 MΩ Min
	Dielectric withstanding voltage	JIS-C-5202 5-7 1500V DC 60s	Free or appearance or structural irregularity ΔR≤±(0.1%+0.05Ω)
	Vibration	JIS-C-5202 6-3 1.5mm,10-50-10Hz/min	Free or appearance or structural irregularity ΔR≤±(1%+0.05Ω)
	Thermal shock	JIS-C-5202 7-3 Room temp 30 min ON-55°C 15 min OFF	Resistor free of structural irregularity crack of silicon cement surface ΔR≤±(2%+0.1Ω)
	humidity	JIS-C-5202 7-5 40°C 90%RH 240H	Free or appearance or structural irregularity ΔR≤±(3%+0.1Ω)
	Load life	JIS-C-5202 7-10 90Min ON-30Min OFF 500H	Free or appearance or structural irregularity Discoloration of marking ΔR≤±(3%+0.1Ω)
Cooperation partner	SAMSUNG,LG, TAIDA,CHANGHONG,TCL,KONKA ,ECT
NOTE	For customer specifications, please contact us to discuss the details. Different power rating owning multi weight, dimension and packing. More details, please contact us.
