Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > High Quality Diesel 6 Cylinders Engine by Shanghai Diesel 650kw 812kva 60HZ

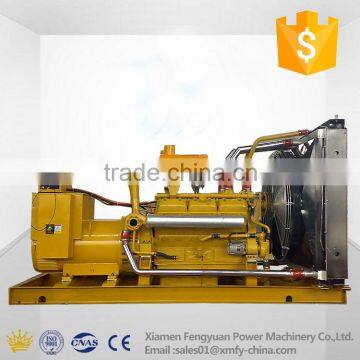

High Quality Diesel 6 Cylinders Engine by Shanghai Diesel 650kw 812kva 60HZ
US$ 46,200 - 47,888
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Shangchai
Model Number:
GF-650
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Promotional 100% Copper 700kw 875kva Genset Price From Direct FactoryUS$ 51,000 - 52,000MOQ: 1 Set -
China Shanghai Engine Open Type 80kw 100kva Genset SC4H115D2 CE Approved With Good QualityUS$ 5,290 - 5,400MOQ: 3 Sets
-
AC Three Phase Output Shangchai Cheap 120kw 150kva Oil Power Plant With 4 CylinderUS$ 6,350 - 6,600MOQ: 5 Sets
-
Factory Wholesale Professional Made in China Diesel Generator Set Price List 150kw 187kvaUS$ 8,900 - 9,150MOQ: 5 Sets
-
Wholesale 63kva 50kw Low Price Soundproof Diesel Generator for Home by China Engine 3phase OutputUS$ 6,100 - 6,300MOQ: 3 Sets
Place of Origin
Fujian, China
Brand Name
Shangchai
Model Number
GF-650
Output Type
AC Three Phase
Speed
1500rmp
Frequency
50/60HZ
Rated Power
650kw/812.5kva
Rated Voltage
400V/230V Adjustable
Rated Current
1170A

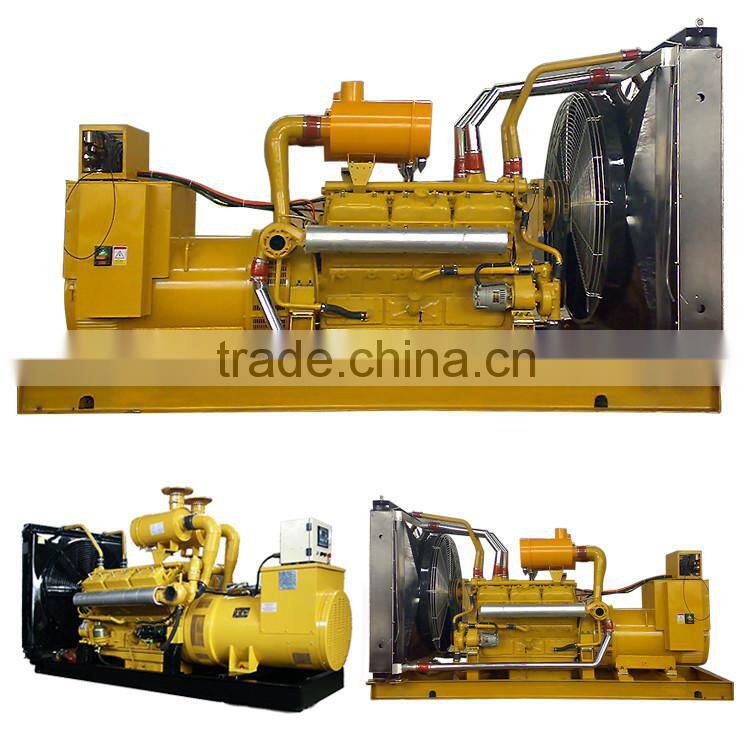

High quality diesel 6 cylinders engine by shanghai diesel 650kw 812kva 60HZ
| Genset Information | |||
| Model | GF-650 | Net dimensions (mm) | 4300*1550*1900mm |
| Prime Output(kw/kva) | 650kw/812.5kva | Rated current(A) | 1170A |
| Gross weight (kg) | 7800kg | Net weight (kg) | 7600kg |
| Rated voltage(V) | 400V/230V | Noise (dB) | 100dB(A) |
| Fuel Comsuption (g/kwh) | 207g/kwh | Frequency (HZ) | 50HZ/60HZ |
| Steady voltage adjusting rate | ≤±1% | ||
| Transient voltage regulation | +20~--15 % | ||
| Voltage settling time | ≤1s | ||
| Steady State rate adjustment frequency | ≤±1% | ||
| Frequency fluctuation rate | ≤±0.5% | ||
| Transient frequency regulation | +10~-7% | ||
| Frequency recovery time | ≤3s | ||
| Generator configurations | |||
| Engine Brand: | Shangchai | Fuel Injection | Direct Injection |
| Engine Model: | SC33W990D2 | Bore (mm) | 180*215mm |
| Intake System | Turbo charging | Cylinder No. | 6/L |
| Cooling method | Closed circulating water cooling | Speed | 1500rpm |
| Compression Ratio | 16.4:1 | Governor | 110% |
| Starting mode | DC24V electrical starting | Speed adjustment mode | Electronic speed control |
| Alternator configurations | |||
| Alternator Brand: | Fengfengsheng | Protection Grade | IP22 |
| Alternartor Model: | TFW-650 | Connect method | Three phase four wire type y connection |
| Rated output (kw/kva) | 650kw/812.5kva | Excitation method | AVR(Automatic voltage regulator) |
| Rated voltage(V) | 400V/230V | Frequency (HZ) | 50HZ/60HZ |
| Insulation Grade | H Class | Power Factor | COS=0.8 |
