RM6300 MultiViewer sever

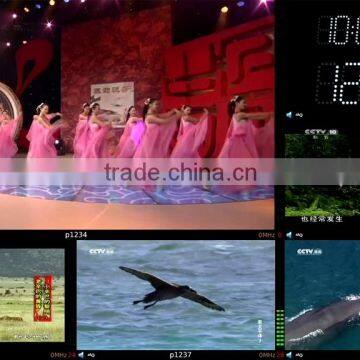

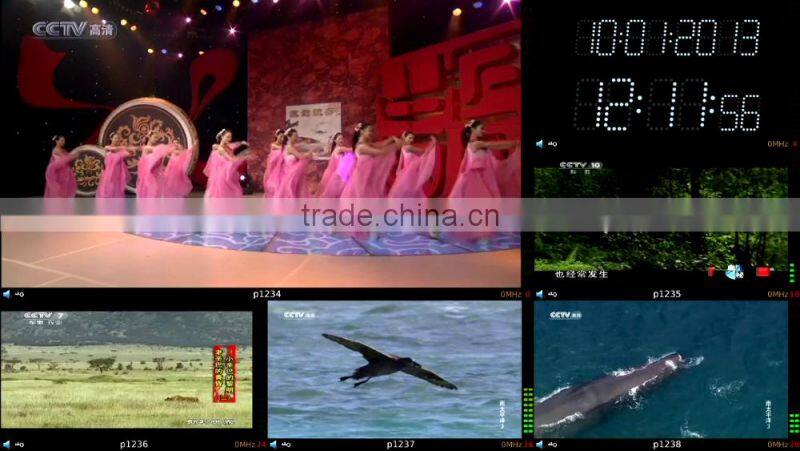

RM6300 MultiViewer sever is a new generation multi-viewer system. It offers extreme integration with up to 48 SD or 16 HD monitoring screen connections in a single 1RU chassis. It is combined with the transport stream (TS) monitoring, channel monitoring, multiviewer monitoring and center network management system. It also support remote Multi Viewer display by embedded encoder; MultiViewer sever can be widely used for broadcasting TV network company, monitoring center, TV station, broadcasting station, transmission station, etc.
Key Features
- Supports 48 SD or 12 HD video program Multi Viewer decoding simultaneously
- Supports video encoding of MPEG2, H.264, AVS
- Supports audio encoding of MP1, MP3, AC3, AAC
- Supports SPTS and MPTS
- Supports display of digital and analog clock, supports display of flash and static picture
- Audio volume : in Colored UV meter
- Supports real time audio and video monitor of :video loss, freeze frame, black burst and color bars, audio loss, overflow and underflow of audio volume
- Supports trigger of alarms,: record alarm, voice alarm, SNMP alarm and database records
- Supports OSD function. The error message will be displayed on the picture with red flash alert
- Supports local one-way audio output
- Supports dual screen output
- Support remote program Multi Viewer display
- Powerful and convenient MultiViewer user defined configuration, which allows you to combine pictures individually, flexible layout, fullscreen viewing of each program
- Random combination display of multi pictures, with support of self-defined template
- Recording detailed operation logs during the entire progress
- Supports centralized management of the network management system
Video Encoding Format
- MPEG2
- MPEG4
- H.264
- WMV
Audio Encoding Format
- MPEG2/3
- AAC
- AC3
- MP3
Input interface
- Two 100/1000M TS Over IP input
Output Interface
- Two VGA
- Two DVI(optional)
- Two HDMI(optional)
Physical and Power
- Size:1RU,
- Weight:4Kg
- Power:100-240 VAC Auto-ranging
- Power Consumption: Max 300W
Warranty: 1 year
Technical support service: 7*24 hours
Realmagic Technology Co., Ltd is a leading provider of complete solutions for Digital TV Head-end System and IP-based solution.
Realmagic targets to Research & Development for over 10-year experiences and provide professional and salable DVB devices, DTV system and IPTV solution. The Digital TV Head-end System provided by Realmagic has filled in many gaps and has accepted by clients from all over the world with its stability and reliable quality.
Realmagic has always concentrated on providing the best products and service to ensure the development of Digital TV with clients.
The 1U 4-channel HD & SD Encoder/Transcoder, 1U 8-channel/16 channel Multi-frequency Transcoder have wined the praise and recognition of system operators and broadcast users from all over the world.
