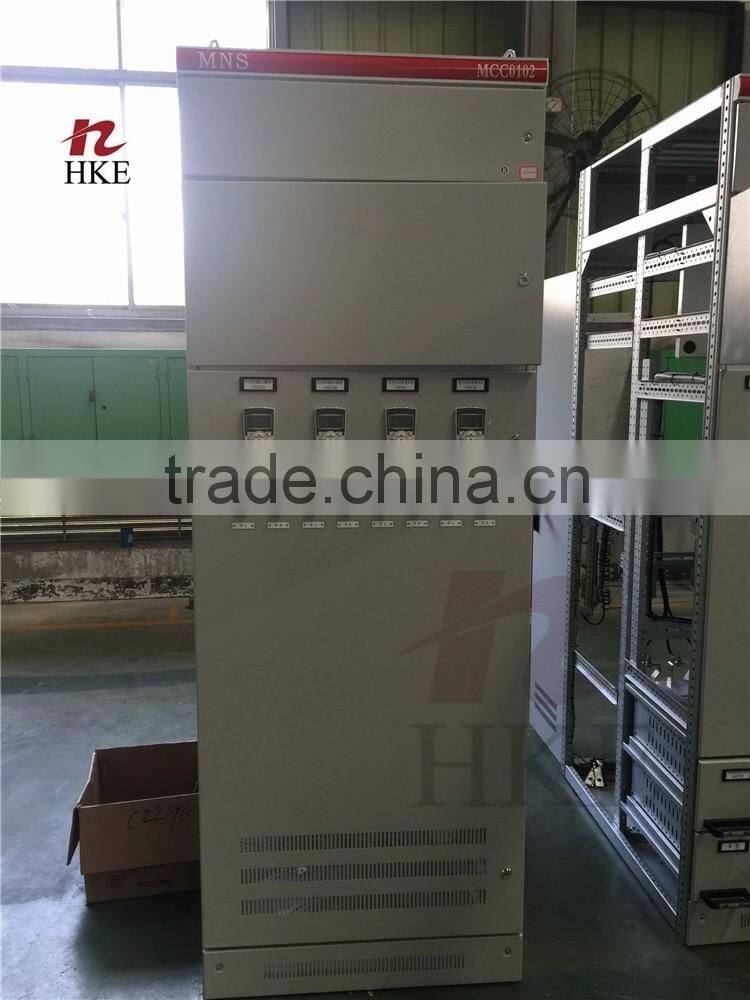

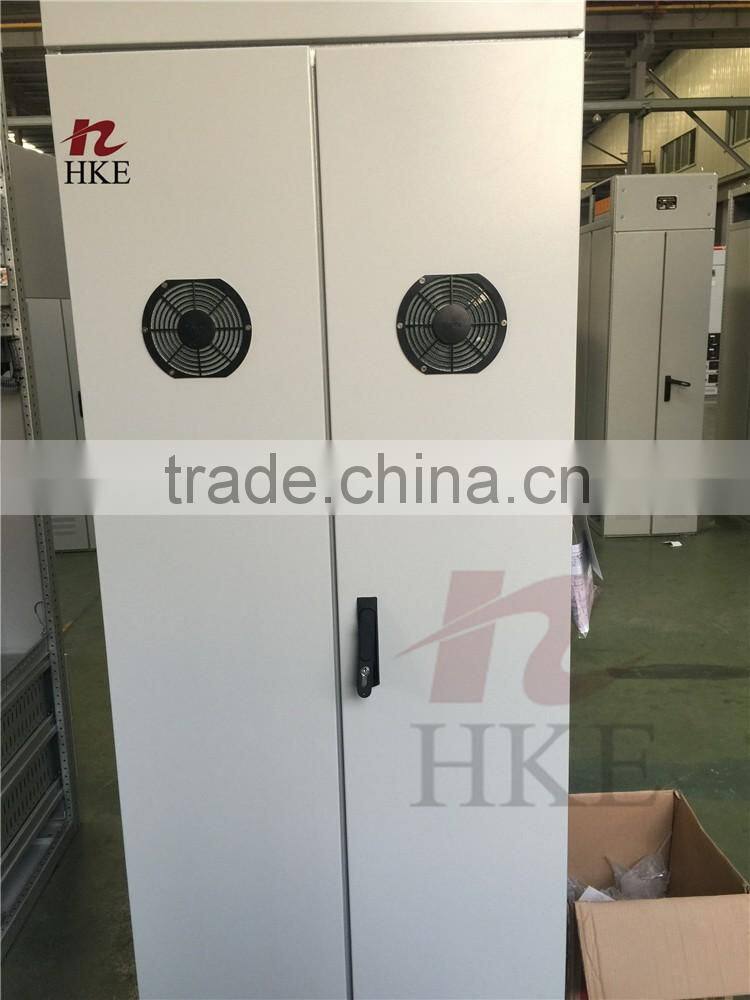

Help CenterMNS 3/3.3kV/4.16kV/6/6.6kV/10/11kV Variable Frequency Drive VFD Cabinet
Related Products
-
MNS Network Switch Cabinet With CapacitorUS$ 1,000 - 1,000MOQ: 1 Set -
Electrical PLC Controller Cabinet With Siemens or Omron Inside OEM/ODMUS$ 1,000 - 1,000MOQ: 1 Set
-
GCK (GCL) Indoor Low Voltage Draw-out Switch CabinetUS$ 1,000 - 1,000MOQ: 1 Set
-
GCS Low Voltage Draw Out Switch CabinetUS$ 1,000 - 1,000MOQ: 1 Set
-
MNS Indoor Low Voltage Drawout Switch Cabinet Electrical EquipmentUS$ 1,000 - 1,000MOQ: 1 Set
MNS Variable Frequency Switch Cabinet
MNS model LV switchgear is suitable for AC 50~60Hz, 660V and below power system. It is applied into power plant, substation, oil field, chemistry industry, metallurgy, mineral enterprise etc. To receive and distribute power with the function of control, protection and monitor. Different types of switch is used inside the cabinet.
The LV Switchgear conforms to IEC60439 and GB/7251.1 standard.

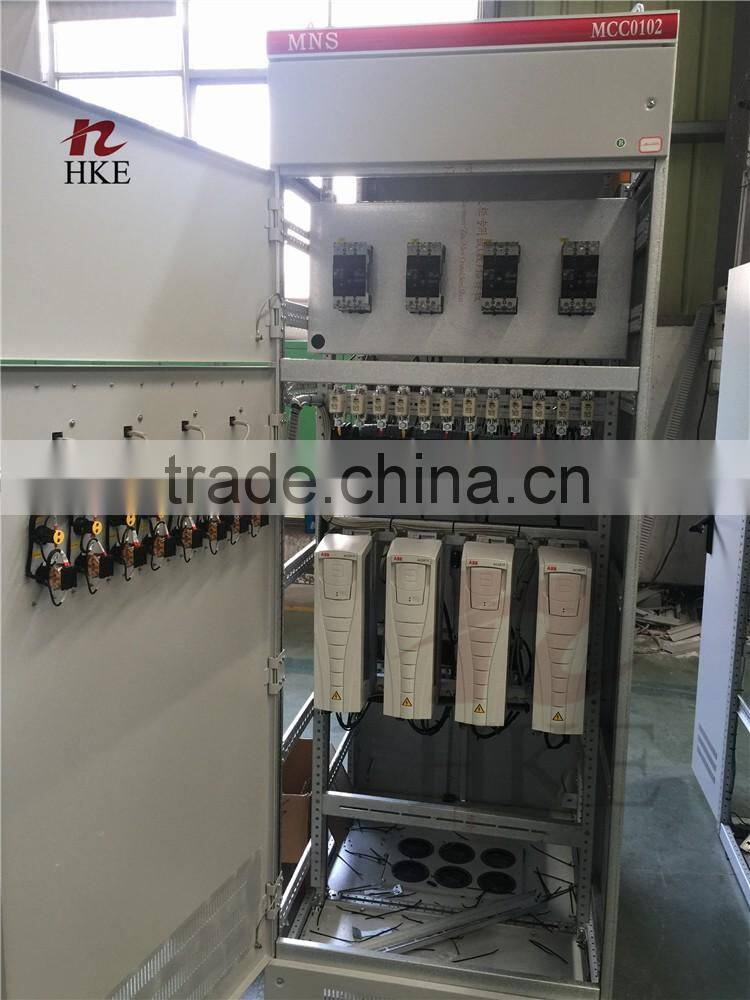

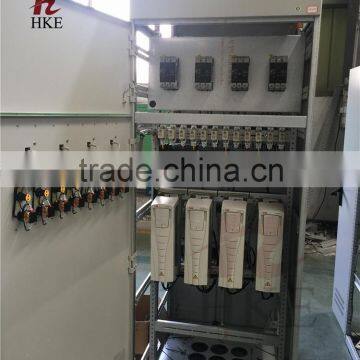

Sample: MNS Variable Frequency Cabinet
| No. | Item | Unit | Parameter |
| 1 | Rated operating voltage | V | AC400 |
| 2 | Rated insulation volatge | V | AC690 |
| 3 | Rated frequency | Hz | 50/60 |
| 4 | Horizontal busbar rated current | A | up to 6300 |
| 5 | Horizontal busbar peak withsatnd current | kA | up to 220 |
| 6 | Horizontal busbar short-time withstand current | kA | 100 |
| 7 | Vertical busbar rated current | kA | up to 2000 |
| 8 | Vertical busbar peak withstand current | kA | 176 |
| 9 | Vertical busbar short-time withstand current | kA | 100 |
| 10 | Rated impulse withstand voltage Uimp | kV | 8 |
| 11 | Enclosure protection degree | IP30,IP40 |

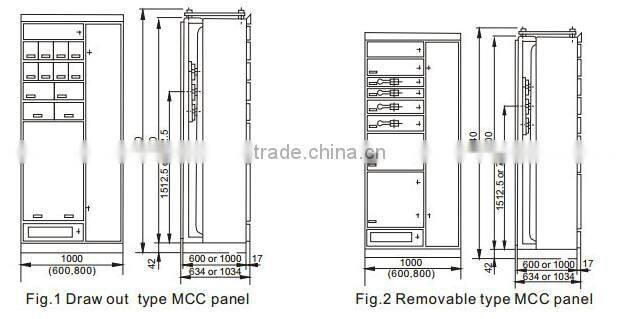

Structure of MNS Low Voltage Withdrawable Switchgear:
Compact design: containing more function units with smaller space
Higher structure versatility and flexible assembling: with 25mm modular design facilitates the space division of inner cabinet and meets the needs of different structure, protection level and service environment
Standard modular design: standard unit for protection, operation, switching, control, regulation, measurement or indication can be formed according to different needs. Users can freely choose from which to assemble what they want. With over 200 assembly components, different frame configurations and drawer units can be formed.
Safer: strong safety protection by using high strength flame retardant engineering plastic. Higher technical performance: main technical parameters meets advanced international standards.
Less covering space: both in transportation and storage, maximum use of space in distribution room.
Easier installation: no need of special complex tools.
| Packaging Details: | Standard export package(in wooden case ) suitable for long-distance ocean transportation and tough handling . |
| Delivery Detail: | depends on ordered quantity |
1. Q: How to order the products?
A:Send the inquiry with detailed key technical data or information you requested or with Model number.If there is no packaging request we will take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for us to exactly understand what you mean .
2. Q: What about lead or shipping time?
A: The lead time depends on quantity you ordered,but generally within 25 days upon receipt of advance payment.
3.Q: Can I expect a quality product?
A: Yes. All our activities are accredited to ISO 9001:2008 ,both in products and services, meanwhile, professional design, mature technology and strict testing procedure ensures high quality and performance you can trust.
4.Q: Is OEM and ODM available?
A: With 60 years proven experience in distribution equipment manufacture, we supply reliable customized products to our clients at home and abroad. For special technical parameters and service environment, you are expected to provide us with detailed information to facilitate our manufacture of exact product you requested.
5.Q: What about terms of payment?
A: T/T and L/C are acceptable,with T/T being more appreciated. You are expected to pay 30 percent of full invoice cargo value as advance payment to facilitate our arraging manufacture; balance payment can be either paid by T/T or sight irrevocable L/C payable against copy of B/L.
6. Q: How long does it take for me to get the quotation.
A: For customized products, we will quote after you provide the requested product detailes within 48 hours beacuse we need the time to calculate cost, but we will quote the soonest possible. for our standard product posted here we can quote in 24 hours.
7. Q: What about discount?
A: We expext long-term cooperation with any honest client, so for our first transaction we will quote at a competitive price , for further transactions in the future we will give you even lower quotation.
8. Q: Can i visit your comapny?
A: You are most welcomed to vist our company and workshop, we will arrage a pleasant trip for you here .
