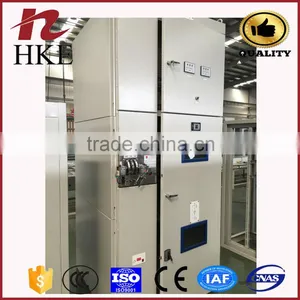

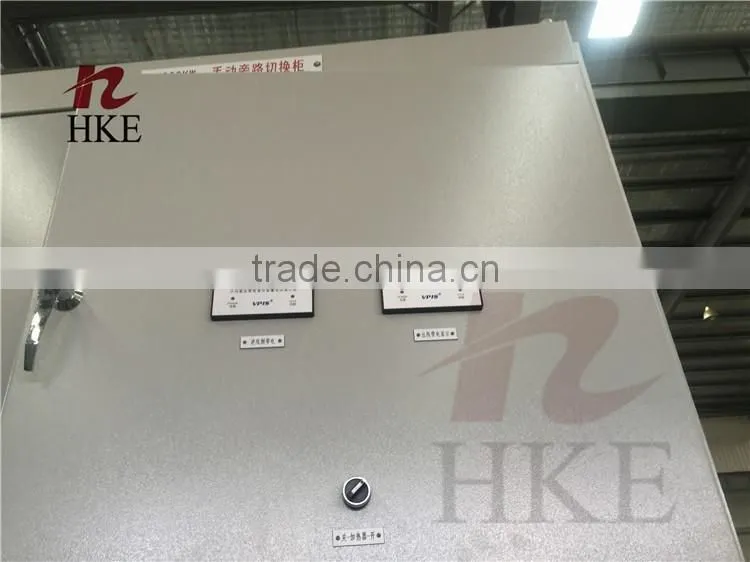

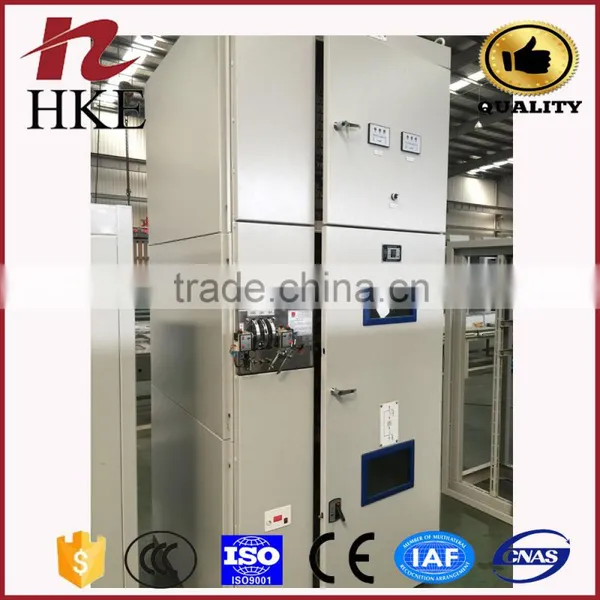

XGN2-12(Z)Box Type Elctrical Fixed Metal Enclosure
XGN2-12 Medium voltage AC switchgear fixed metal-enclosed switchgear applied to the 3.6kV~12kV three phase AC 50/60Hz system to receive and distribution power energy, and suitable for continually operation and rebuilding the switchgear which install oil switch. The busbar is single busbar system and double busbar subsection system. XGN2-12(G) is suitable for high altitude area which is developed on base of general switch.

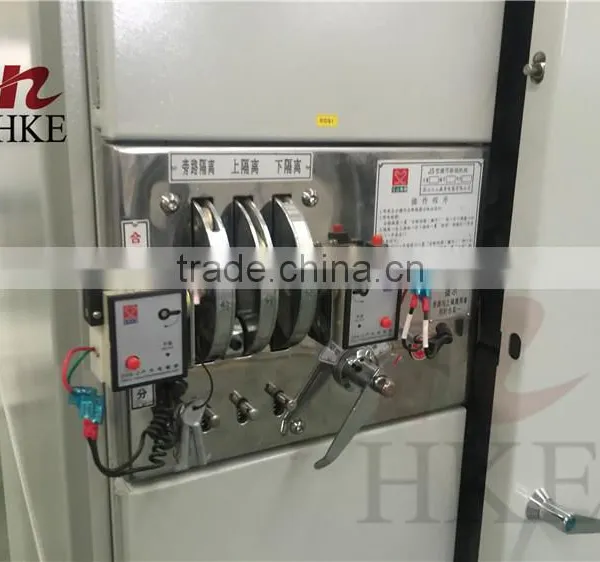

The switchgear conforms to GB3906 " 3~35kV AC Meta l-enclosed Switchgear " and IEC62271-200 standard, and with function of five protections locking. The main switch of panel is ZN28A-12 series vacuum circuit breaker, equip with CD10 series and CD17 electromagnetism, CT8, CT17/CT19 series spring operating mechanism.
| No. | Item | Parameter |
| 1 | Rated Voltage(KV) | 12 |
| 2 | Rated Current(A) | 630~3150 |
| 3 | Rated frequency(Hz) | 50/60 |
| 4 | Rated Short-time Withstand Current (KV) | 25,31.5,40 |
| 5 | Rated Peak Withstand Current (KA) | 25,31.5,40 |
| 6 | Rated Main Busbar Current(A) | 630~3150 |
| 7 | Weight(KG) | 450 |
| 8 | Protection degree | Enclosure IP2X |

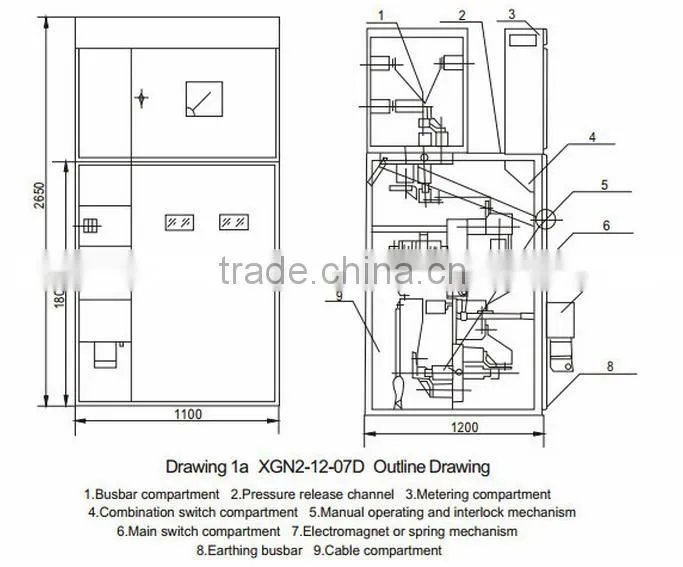

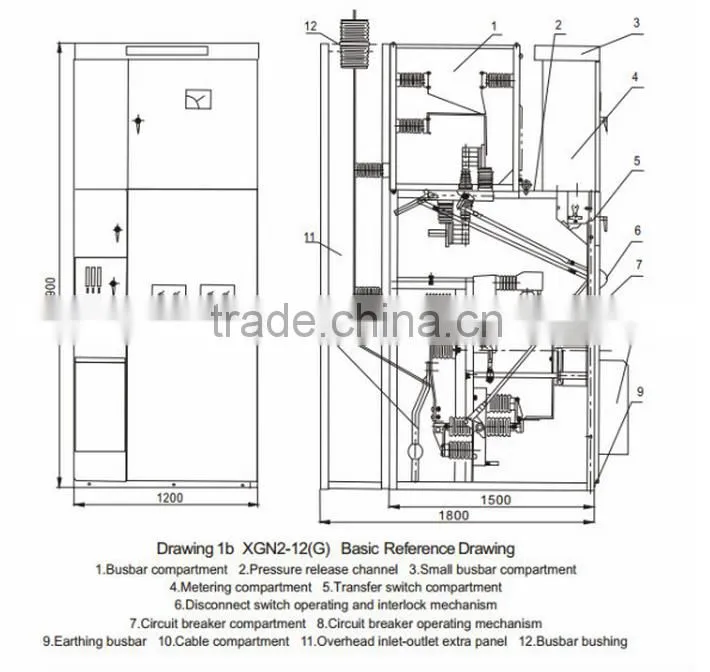

Structure of XGN2-12 Medium Voltage Switchgear:

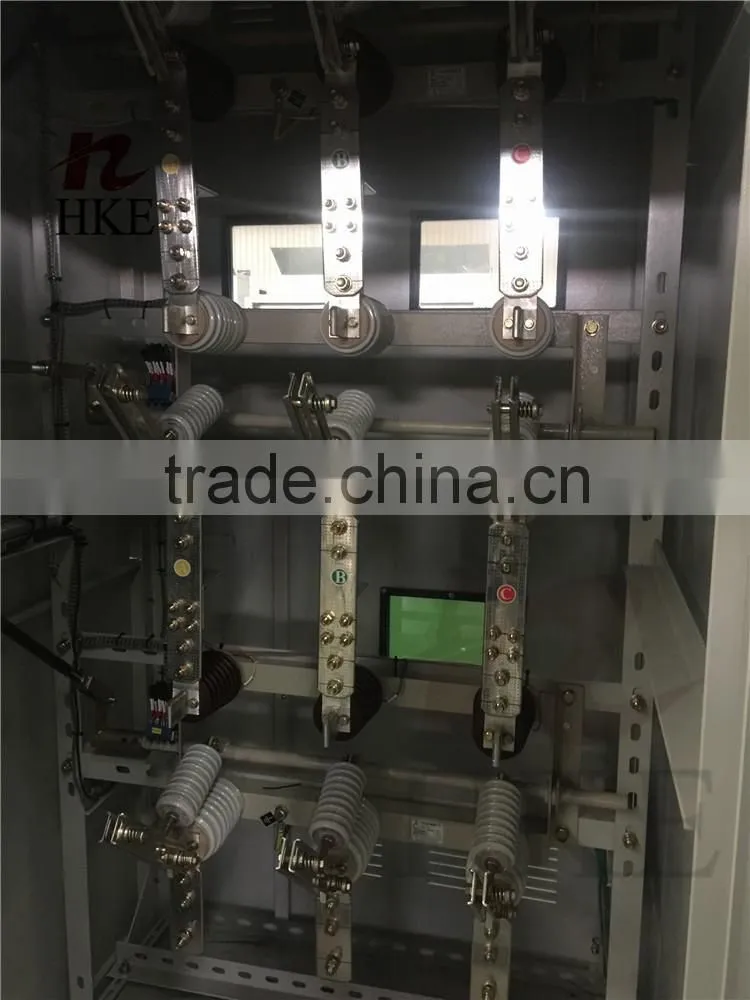

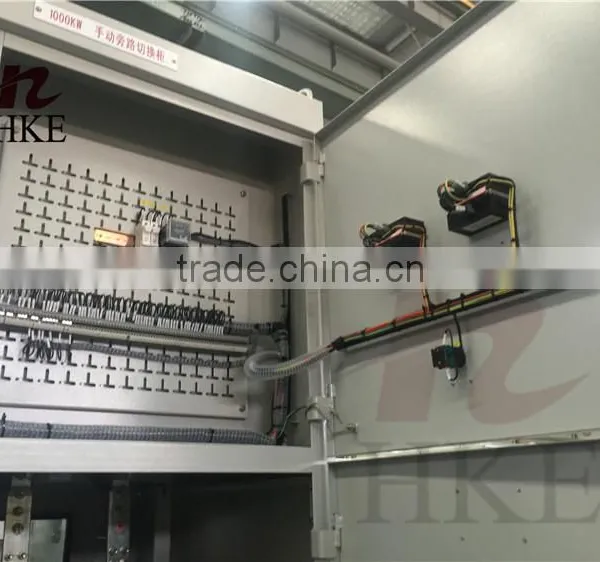

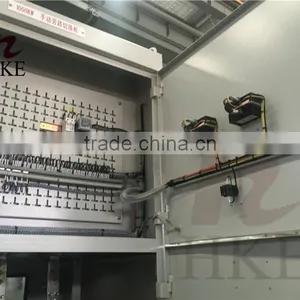

Metal-enclosed cabinet structure, and is divided into compartments thus separating different functional areas
| Packaging Details: | Standard export package(in wooden case ) suitable for long-distance ocean transportation and tough handling . |
| Delivery Detail: | depends on ordered quantity |
1. Q: How to order the products?
A:Send the inquiry with detailed key technical data or information you requested or with Model number.If there is no packaging request we will take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for us to exactly understand what you mean .
2. Q: What about lead or shipping time?
A: The lead time depends on quantity you ordered,but generally within 25 days upon receipt of advance payment.
3.Q: Can I expect a quality product?
A: Yes. All our activities are accredited to ISO 9001:2008 ,both in products and services, meanwhile, professional design, mature technology and strict testing procedure ensures high quality and performance you can trust.
4.Q: Is OEM and ODM available?
A: With 60 years proven experience in distribution equipment manufacture, we supply reliable customized products to our clients at home and abroad. For special technical parameters and service environment, you are expected to provide us with detailed information to facilitate our manufacture of exact product you requested.
5.Q: What about terms of payment?
A: T/T and L/C are acceptable,with T/T being more appreciated. You are expected to pay 30 percent of full invoice cargo value as advance payment to facilitate our arraging manufacture; balance payment can be either paid by T/T or sight irrevocable L/C payable against copy of B/L.
6. Q: How long does it take for me to get the quotation.
A: For customized products, we will quote after you provide the requested product detailes within 48 hours beacuse we need the time to calculate cost, but we will quote the soonest possible. for our standard product posted here we can quote in 24 hours.
7. Q: What about discount?
A: We expext long-term cooperation with any honest client, so for our first transaction we will quote at a competitive price , for further transactions in the future we will give you even lower quotation.
8. Q: Can i visit your comapny?
A: You are most welcomed to vist our company and workshop, we will arrage a pleasant trip for you here .
