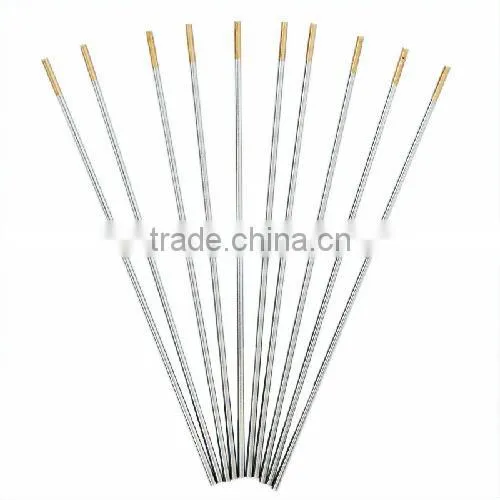

Lanthanated Tungsten is a non-radioactive material with good welding performance. Its electric conductivity is most closed to that of 2% Thoriated Tungsten. Welders can easily replace Thoriated Tungsten Electrodes with Lanthanated without any changes of welding program. In Europe and Japan, Lathanated Tungsten has been the most popular alternative to 2% Thoriated Tungsten for most applications. This tungsten is used primarily for DC welding but will also show good results for AC welding.
| Designation | Oxide Addtive | Impurity % | Tungsten % | Color Sign | |
| category | content % | ||||
| WL10 | La2O3 | 0.8~1.2 | <0.20 | Balance | Black |
| WL15 | La2O3 | 1.3~1.7 | <0.20 | Balance | Golden yellow |
| WL20 | La2O3 | 1.8~2.2 | <0.20 | Balance | Sky blue |
We supply all kinds of tungsten electrodes including Thoriated Tungsten, Ceriated Tungsten, Lanthanated Tungsten, Zirconiated Tungsten, Yttriated Tungsten and Pure Tungsten electrodes . Any kind and any size of tungsten electrode are available upon the demands from customers.
Product Standard: ISO 6848 ANSI/AWS A5.12/A5.A2M-98
Size:
Diameter: 0.5-25mm
Length: 150mm, 175mm, 178mm and any other length at customer's request.
Recommended Tungsten Electrodes for Various Welding Currents:
| Diameter | DC(A) | AC(A) | |||
| in | mm | Straight Polarity(-) | Reverse Polarity(+) | Unbalanced Waves | Balanced Waves |
| 0.04" | 1.0 | 15~80 | 10~80 | 20~60 | |
| 1/16" | 1.6 | 60~150 | 10~18 | 50~120 | 40~100 |
| 0.079" | 2.0 | 100~200 | 12~20 | 70~160 | 60~130 |
| 3/32" | 2.4 | 150~250 | 15~25 | 80~200 | 80~150 |
| 1/8" | 3.2 | 220~350 | 20~35 | 150~270 | 120~200 |
| 5/32" | 4.0 | 350~500 | 35~50 | 220~350 | 170~260 |
| 3/16" | 4.8 | 420~650 | 45~65 | 240~420 | 220~340 |
| 1/4" | 6.4 | 600~900 | 65~100 | 360~560 | 250~450 |
|
