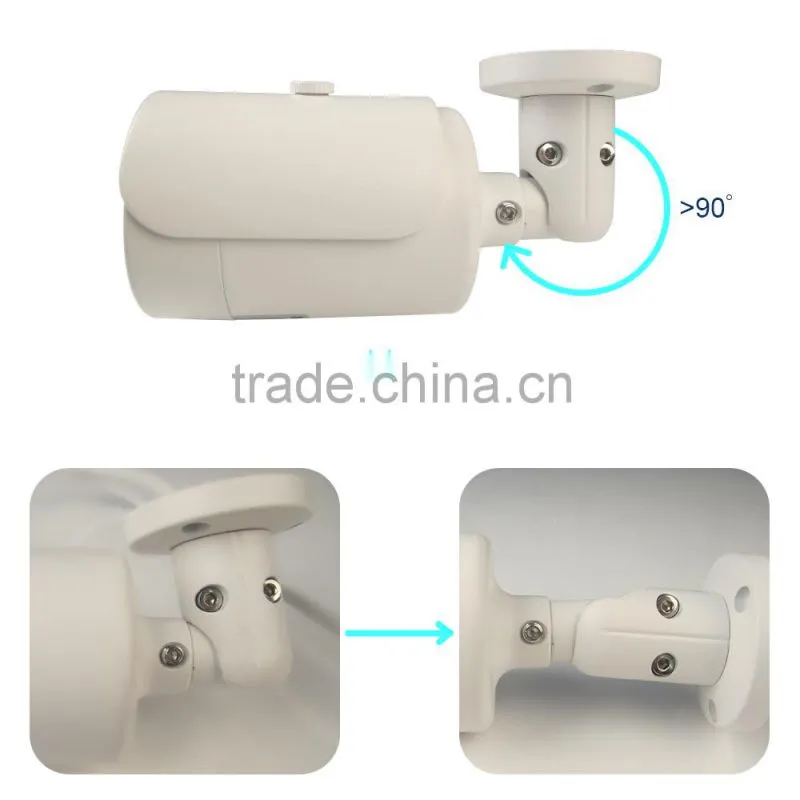

Help CenterLS VISION 8Ch For Project 1080P Full Hd Ip Camera Kits
Related Products
-
LS VISION High Quality Camera Poe Onvif 8 Ch Hd 1080P Cctv KitNegotiableMOQ: 1 Piece -
LS VISION 8Ch P2P Nvr Kit Camara Ip 2Mp Security Camera SystemNegotiableMOQ: 1 Piece
-
LS VISION Low Cost Onvif NVR 4 Ch Camera Security System Camera System With P2P FunctionNegotiableMOQ: 1 Piece
-
LS VISION HVR/NVRr/DVR Linux H.264 NVR Kits NVR 8ch Poe CCTV System Kits SurveillanceNegotiableMOQ: 1 Piece
-
LS VISION Top Notch Onvif 3MP POE Home Security Camera System Pictures NVR KitsNegotiableMOQ: 1 Piece
Key Features:
Support ONVIF 2.4 protocol
Plug and play, support P2P function, cloud services and cloud storage is provided.
Supports Iphone,Windows Mobile,Symbian,Andriod,Blackberry
Module |
LS-NF7108P |
|
OS |
Embedded Linux |
|
master chip |
Hi3535 |
|
Access Bandwidth |
64M |
|
Video&Audio input |
Bidirectional Talk |
1 CH(Line in,2Vpp,1Kohms) |
IPC Input |
up to 8ch D1@ 30fps(2Mbps) or 8ch 3MP@ 20fps(8Mbps) or 8ch 5MP@ 10fps(8Mbps) |
|
Video&Audio output |
CVBS Output |
1CH,BNC(1.0Vp-p,75ohms) |
VGA |
1CH,Resolution 1920×1080,1280×1024, 1280×720,1024×768,800×600 |
|
HD |
Standard 1.3a |
|
Resolution 1920×1080, 1280×1024,1280×720,1024×768,800×600 | ||
Audio Output |
1CH,BNC(Line out,2Vpp,300ohms) |
|
Video&Audio encoding |
Audio Compression |
G711A |
Audio Bit Rate |
64Kbps |
|
Video&Audio codecs |
IP Resolution |
Main stream:up to 5632x4224 |
Video bitrate |
Up to 2Mbps@ D1, 4Mbps@ 720P, 8Mbps@ 1080P |
|
Video decoding |
MPEG-4/H.264(Up to High Profile@ Level4.2) |
|
Synchronous Playback |
Up to 8CH |
|
resource capacity |
D1 Play back |
8CH |
720P Play back |
8CH |
|
1080P Play back |
6CH |
|
switch for 3.0MP IPC |
8CH 3MP@ 20fps(8Mbps) |
|
3.0MP Play back |
4CH |
|
switch for 5.0MP IPC |
8CH 5MP@ 10fps(8Mbps) |
|
5.0MP Play back |
2CH |
|
Other Function |
Bidirectional Talk |
Two-way voice intercom function |
Motion Detection |
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest) |
|
Picture Capture |
Local Capture&Web Capture |
|
HDD Interface |
SATA |
1 |
ESATA |
0 |
|
POE |
POE interface |
8CH RJ45 10M/100M adaptive Ethernet interface |
External Interface |
Network Interface |
1 RJ45 10M/100M/1000M adaptive Ethernet interface |
USB |
2 USB 2.0 Interfaces |
|
General |
Dimensions |
215x235x50mm(W×D× H) |
Weight |
1.5Kg(without HDD) |
|
Power Supply |
DC 48V/1.875A |
|
Working Temperature |
-10℃--+55℃ |
|
Working Humidity |
10%--90% |
|
Consumption |
7W(without HDD,without POE) |
|
Product Details:

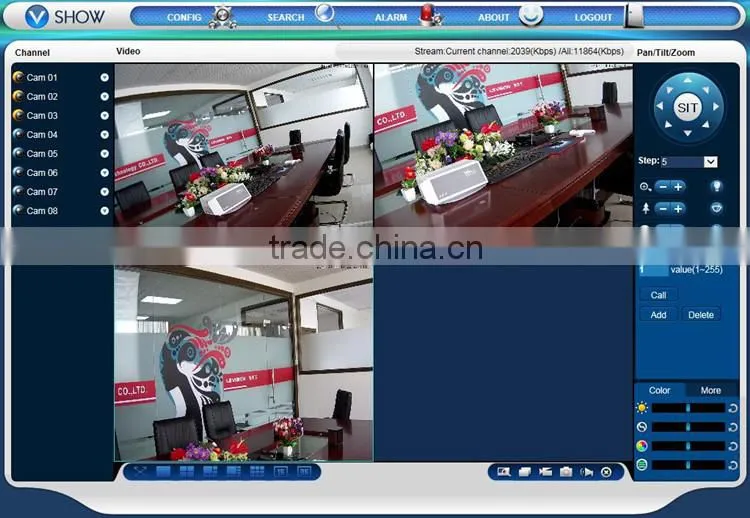

| IE Interface |
|

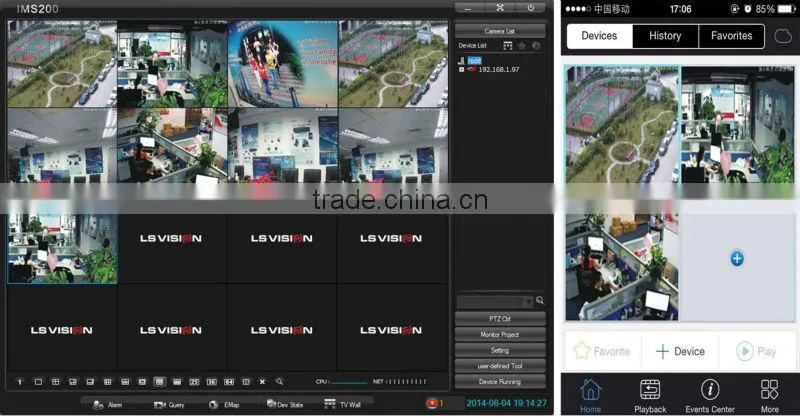

| CMS / Free APP |
|
| HD IP System |
|
|
1. One year quality guarantee
2. OEM service to meet all your need.
3. Popular model will be suggested,keep our customer updated for the information about the products..
4. 7*24 Technical support
NOTE: The RMA code will be given with the response email. Return shipping charges will be the buyer`s responsibility.
Customers all over the world
Trading Process
Why LS VISION will be your first choice in the market?
1.Shenzhen LS Vision Technology Co., Ltd., established with the purpose of serving the house ware with professional quality products.
2.We have more than years export experience with a turnover more than 16 million US dollars.
3.We win a high reputation with our great ideas of creation and High quality products. LS VISION has exported our products all around the world, like USA, European countries.
4.We are also OEM&ODM manufacturer.
5.We own a professional engineering team and with our own factories to service different need of customers.
6.We believe with the permanent quality and reasonable price and excellent service, we are devoting to built pleasant business relationship with customers from all over the world. LS Vision Technology will be your first choice in the market.
1.Packaging Details:CTN
2.Shipping Details:dhl, fedex, ups
3.Payment Terms: Paypal , Western Union , T/T
4.Delivery Time:Within 7 working days
