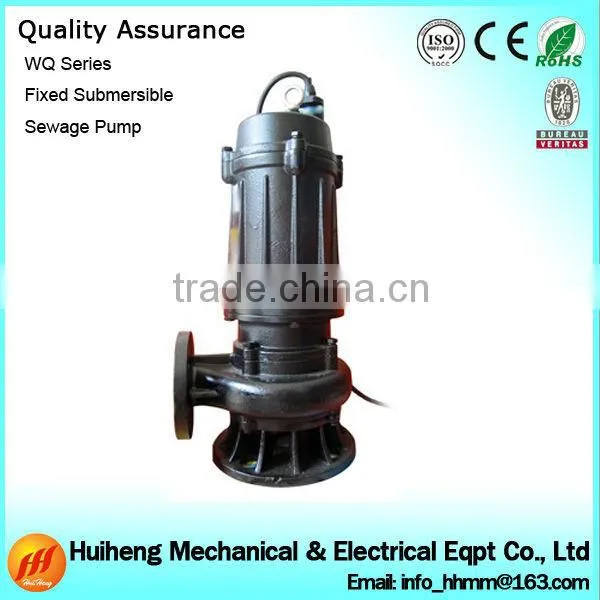

Introduction:
This submersible sewage pump is mainly composed of the impeller, pump body and the base of submersible motor.
Pump and motor are on the same line of root axis.
it can maximize the amount of suctked sewage water, because the pump is located at the bottom of the pump.
The impeller is designed with 2 channels. It can greatly improve the flow capacity of the dirt.
The solid particles whose diameter is 50% the size as the diameter of the pump go through easily.
This product meets Q/TBJW2-2003, Ssewage Submersible Pump standard.
Features:
1. Durable, waterproof and stain resistant cable, heavy cabtyre cables, resin filling, fixed and stable, no marathon, durable and reliable.
2, Double seal and double protection.
Double machine sealed with series configuration. It makes sure the motor is safe.
3, Multi-channel detection and multi protection.
Real-time detection with water probe and float switch.
It can alarm, shutdown and preserve the function of the fault signal, so that the submersible motor is safe and reliable.
4. High efficiency and no blockage.
5. Easy maintain.
Application:
1. Conveys sewage and dirt with particles for industrial and urban.
2. Be able to effectively pass pump's diameter of 5 times of fiber material and pump's diameter of about 50% of the solid particles.
Structure:
| No. | Parts Name | No. | Parts Name |
| 1 | Electric machinery | 5 | Base |
| 2 | Mechanical seal | 6 | Pump body |
| 3 | The oil chamber | 7 | Stirring device |
| 4 | Inside the pump | 8 | Impeller |
submersible sewage pump
Parameters:
| Flow | 2 - 1500m³/h |
| Head | 3 - 45m |
| Rotational speed | 970 - 2900r/min |
| Ambient temperature | ≤+40℃ |
| Medium temperature | -15℃~+60℃ |
| Medium density | ≤1.3X103kg/m³ |
| Medium pH range | 5 - 9 |
| Maximum working pressure | ≤0.6Mpa |
Shipping:
By sea, by air.
Packing:
Wooden Case.
1. Check before shipping.
2. Reply in 12 hours.
3. Professional team.
4. Factory price and good quality.
5. Excellent after-service.
6. OEM service.
Guangzhou Huiheng Mechanical And Electrical Equipment Co., Ltd.
We specialize in submersible sewage pump.
Competitive price, efficient production time and good after-sales service.
Factory:
Please contact me for submersible sewage pump.
Question 1: What's the payment terms?
T/T, Western Union, Paypal.

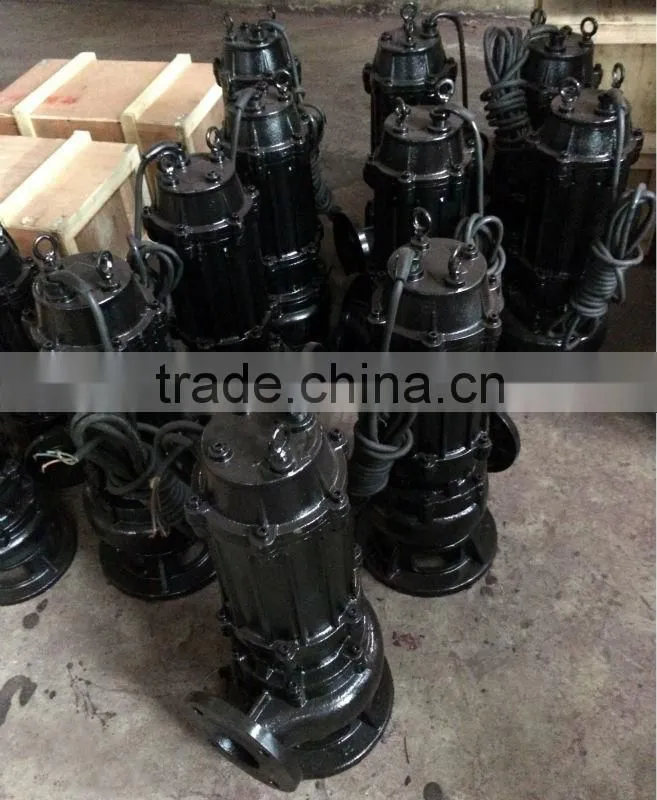

Question 2: How is the production line?
Please check this photo.
Question 3: Do you any other pump?
Yes. Please contact me for detail.
