Ns Series Self-Priming Pump (NS-80) With Diesel Engine

Ns Series Self-Priming Pump (NS-80) With Diesel Engine thumbnail-1
Ns Series Self-Priming Pump (NS-80) With Diesel Engine thumbnail-2
Ns Series Self-Priming Pump (NS-80) With Diesel Engine photo-1

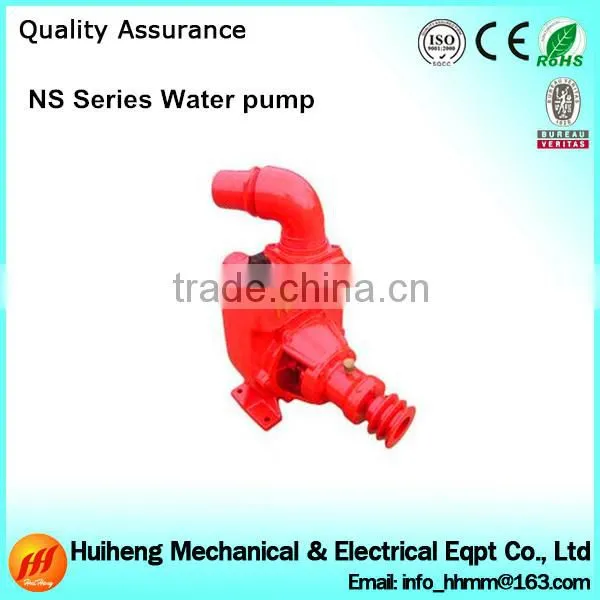

Ns Series Self-Priming Pump (NS-80) With Diesel Engine photo-2
US$ 30 - 350 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HH
Model Number:
NS-80
Contact Supplier Request Quote Chat Now
Guangzhou Huiheng Mechanical And Electrical Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HH
Model Number NS-80
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Other, Electric, 4kw
Standard or Nonstandard Standard
Fuel Diesel
Pressure Low Pressure
Application Other, Irrigation
Product Description

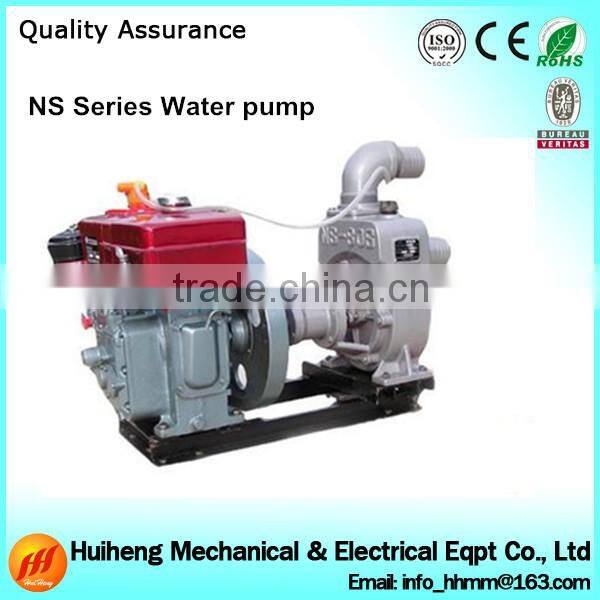

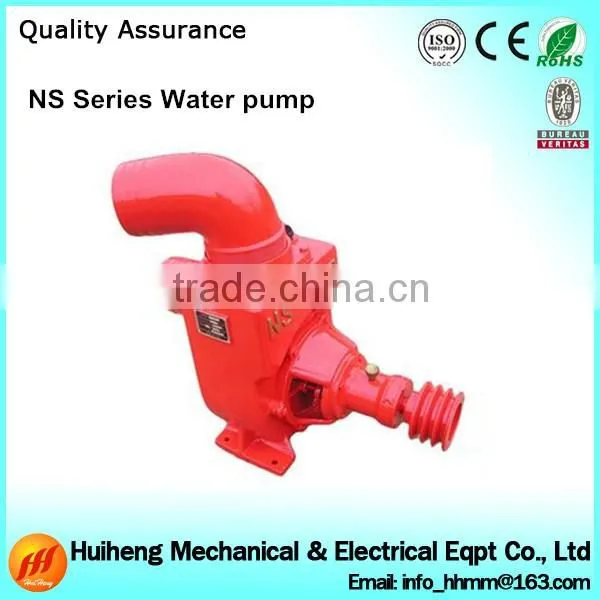

Ns Series Self-Priming Pump (NS-80) With Diesel Engine



Water pump NS 50/80/150 features simple structure, big flow, reliability and portability.

It doesn't need foot valve.

This water pump has wide use range for water supply. For example, industrial, irrigation, landscape architecture and civil engineering,



Specification

Model Max flow(m3/h) Max head(m) Speed(r/min) Power(kw)
NS-50 33 21 2000 3
NS-80 78 23 2000 5
NS-100 102 25 2000 7.5
NS-125 120 25 2000 8.82
NS-150 215 32 2200 18.5
NS-200 380 16 1000 22-30
NS-200S 510 32 1450 37
Self-priming Lift(m) 8 6

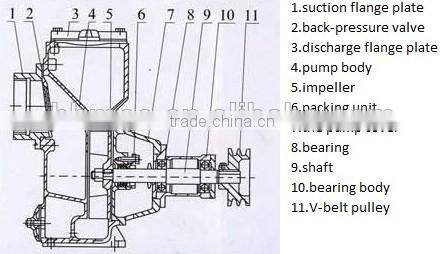

Structure

 Ns Series Self-Priming Pump (NS-80) With Diesel Engine

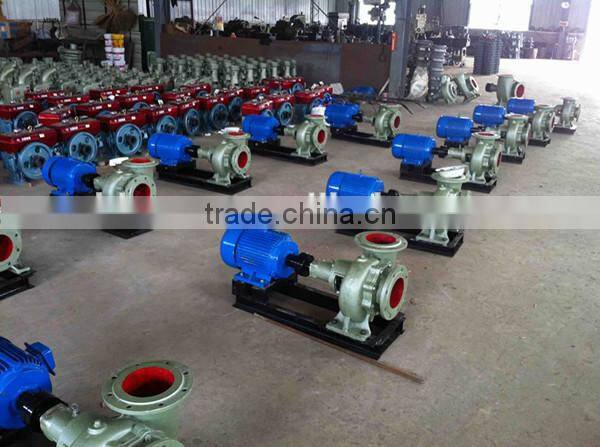

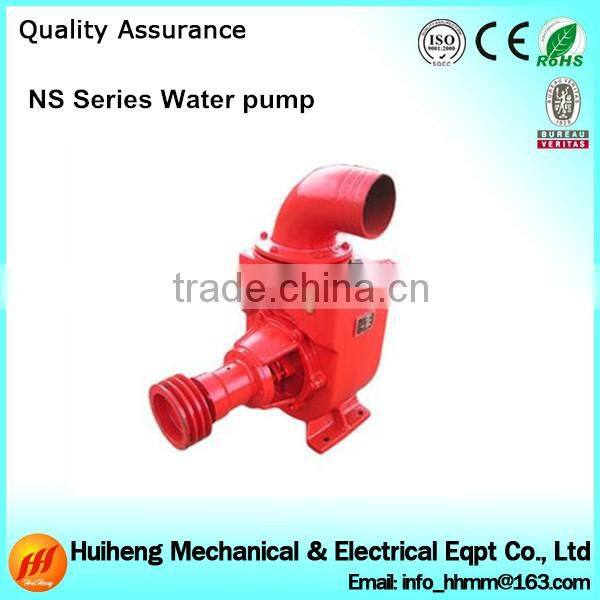

Product Show

Ns Series Self-Priming Pump (NS-80) With Diesel EngineNs Series Self-Priming Pump (NS-80) With Diesel EngineNs Series Self-Priming Pump (NS-80) With Diesel Engine



Application

1. Water pump NS 50/80/150 is with deep suction, high lift head, large flow rate and high efficiency etc..

2. Diesel water pump, the bearings should not add too much lubricating oil. if it is fever it because the small gap between the new machine element, but it will not affect the pump’s quality. It will be better out of the breaking-in period.

3. After 1000 hours’ working, the bearing should be cleaned and oil should be changed.

4. Long-term no use the pump, you should draw water off the pump, coated with anti-oil on the screw and move to the storage room.

5. Water pump NS 50/80/150 is widely used in well, river and it can be used for agricultural irrigation, industrial water supply and drainage, mining and construction projects, etc..

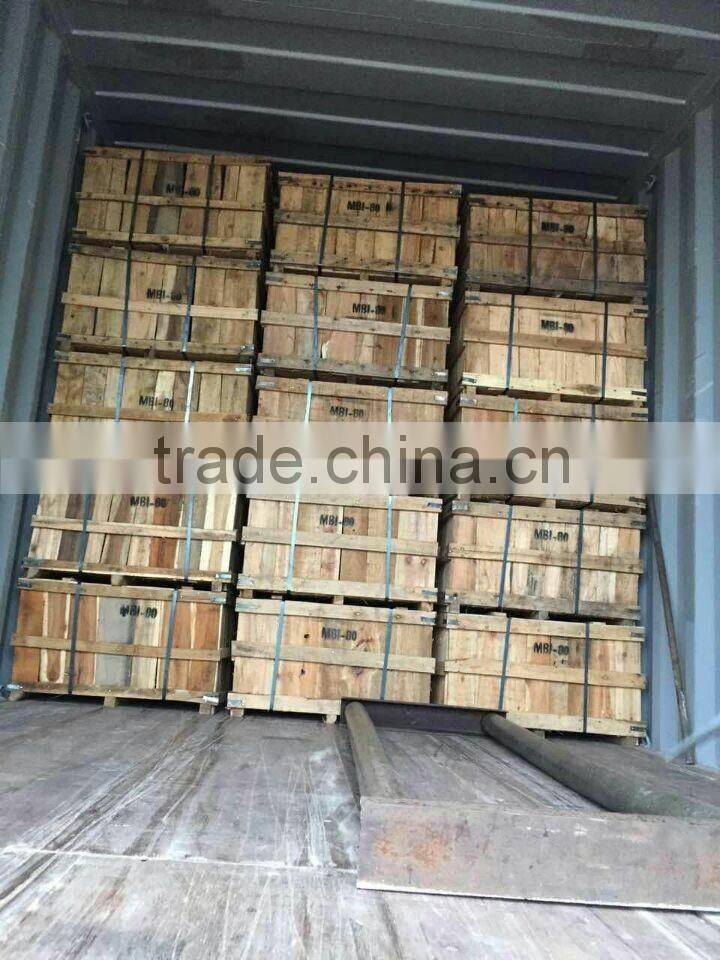

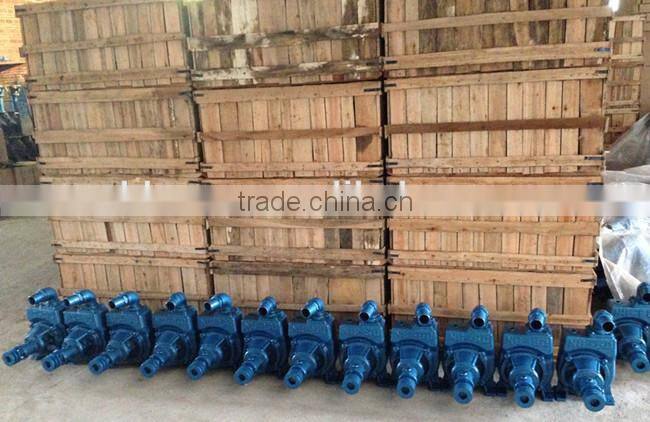

Packaging & Shipping



Packaging of water pump NS 50/80/150:

4/Wooden Case.

Ns Series Self-Priming Pump (NS-80) With Diesel Engine



Shipping time: About 15 days after receipt.

Ns Series Self-Priming Pump (NS-80) With Diesel Engine

Ns Series Self-Priming Pump (NS-80) With Diesel Engine

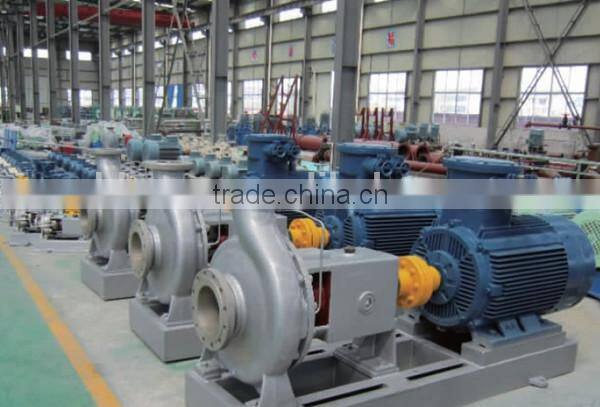

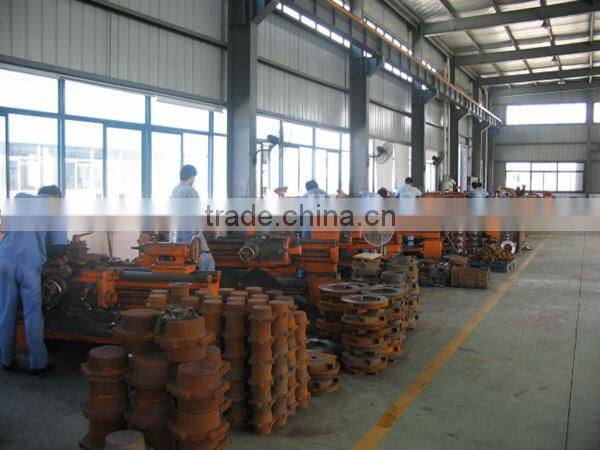

Company Information



Guangzhou Huiheng Mechanical And Electrical Equipment Co., Ltd. is a leading company which specializes in water pump,  water pump NS50/80/150 etc.

“Reasonable prices, efficient production time and good after-sales service”
Established in 2012, we are enjoying great reputation around the world. Hope to cooperate with you.

Welcome to contact us!

Ns Series Self-Priming Pump (NS-80) With Diesel Engine



Ns Series Self-Priming Pump (NS-80) With Diesel Engine

Ns Series Self-Priming Pump (NS-80) With Diesel Engine

Ns Series Self-Priming Pump (NS-80) With Diesel Engine



Ns Series Self-Priming Pump (NS-80) With Diesel Engine

Ns Series Self-Priming Pump (NS-80) With Diesel Engine

Ns Series Self-Priming Pump (NS-80) With Diesel Engine



Our company mainly sells each kind of type diesel engine, Diesel water pump,diesel engine



water pump,diesel irrigation water pump,diesel agriculture water pump,diesel slurry



pump,diesel mud pump. irrigation pump,fire pump,diesel pump etc.





If you are interest in this model, pls feel free to contact me!



                                                         Name : Candice Wu



                                                         Email: Candice_hhmm @163.com



                                                   Wechat/Whatsapp:+8613042031526



                                                  Skype: candice_hhmm @163.com



                                                            Tel: +86 20-82178721



                   Looking forward  to your inquiry! ! ! !
