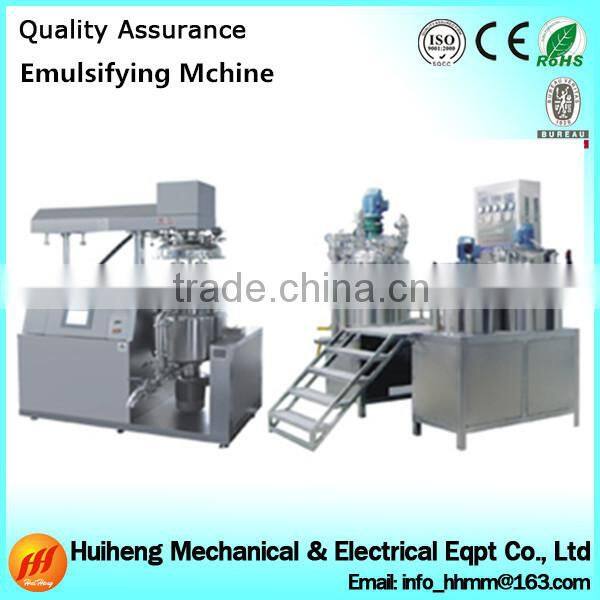

SUS304 Vacuum emulsifier mixer industrial peanut butter making machine
This is the internal and external circulation vacuum homogenizing emulsifier,it is high quality product newly researched and developed by us company through combining advanced international and domestic technologies. The greatest features is that the internal and external homogenizer can make the material work under the homogenizing status of internal circulation so as to achieve the effect of completely emulsifying the materials.
1. XJR series of lifting type vacuum emulsifying machine introduce advanced foreign technology, its
professional design according to the process of cosmetics, pharmaceutical ointment products etc.
2.This machine is consists of a preprocessing pot, vacuum emulsification stirring the pot, vacuum
pump, hydraulic system, pour material system, electric control system, working platform etc.
3. The machine has the advantages of simple operation, stable performance, homogeneous good
performance, high production efficiency, convenient cleaning, reasonable structure, small occupation
area, high degree of automation.
4.With a hydraulic lift system, It can freely lift the pot cover and inverted a pot reset.
5.Mixing system using two-way the stirring frequency control, which can meet the different
requirements of the production process.
6. Advanced homogenizer, the result is unique, reliable seal (mechanical seal for the German Bergman),
emulsifying speed is 0-2890 RPM (VVVF).
7. The material is imported SUS304 or SUS316L stainless steel, tank and pipeline for mirror polishing,
fully compliant with GMP standard.
8. Vacuum deaeration can reach sanitation asepsis requirement, and it can use the vacuum suction material,
especially for powder, it can prevent dust from flying.
9. According to the process requirements, the tank body can be heated or cooled material, the heating mode
can be selected according to the customer request steam or electric heating.
10. Advanced electric control system adopts PLC control (optional), and is equipped with color touch screen
(optional), full control of the material temperature, mixing and homogenizing speed and time data, and print
the data above (optional).
| Model | Working Volume(L) | Heating Method | Dimension(LxWxH)(m) | Weight(kg) |
| XJR-W-50 | 50 | Electric heating or steam heating | 2.6x2.4x2 | 650 |
| XJR-W-100 | 100 | 2.8x2.5x2.2 | 850 | |
| XJR-W-200 | 200 | 3x2.8x2.3 | 1100 | |
| XJR-W-500 | 500 | 3.3x3x2.5 | 1500 | |
| XJR-W-1000 | 1000 | 4.2x3.5x3.8 | 2500 |
Products Features:
1. High disposing capacity with continuous operation.
2. The material can be discharged through circulation and homogenization.
3. It is especially suitable for continuous treatment of products of single variety.
4. Simple operation and better emulsifying and homogenizing effect.
5. Water cooling type sealed structure for homogenizing conquers the problem of material leakage under ordinary sealing.

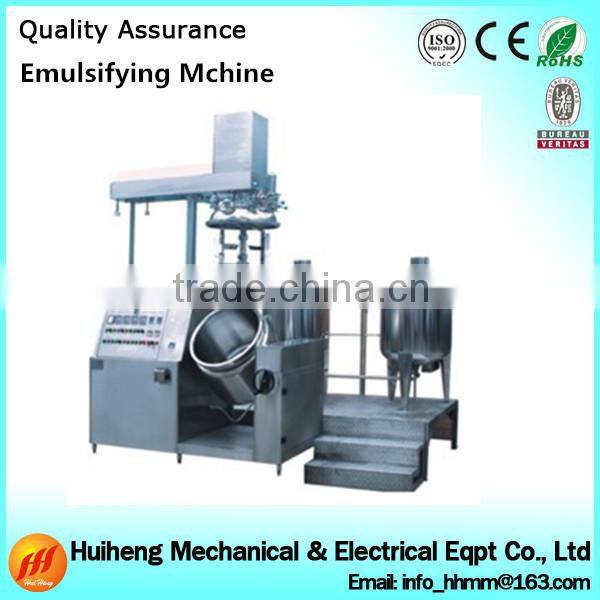

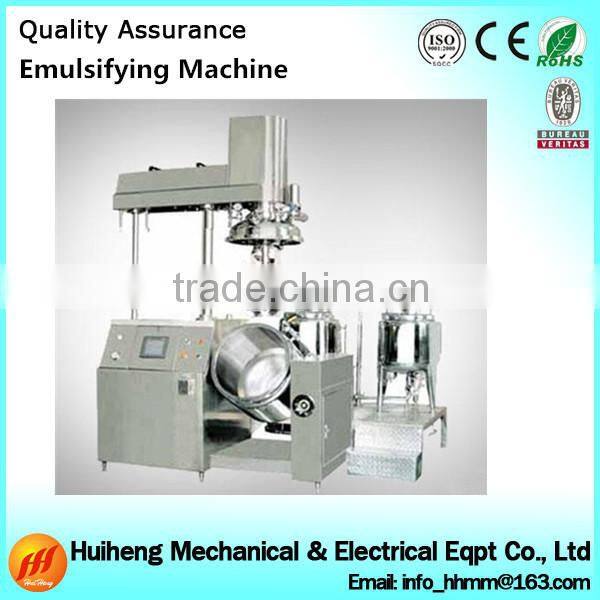

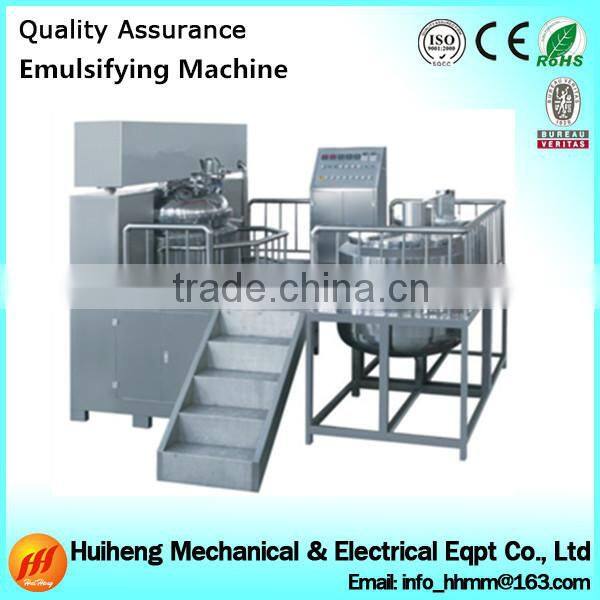

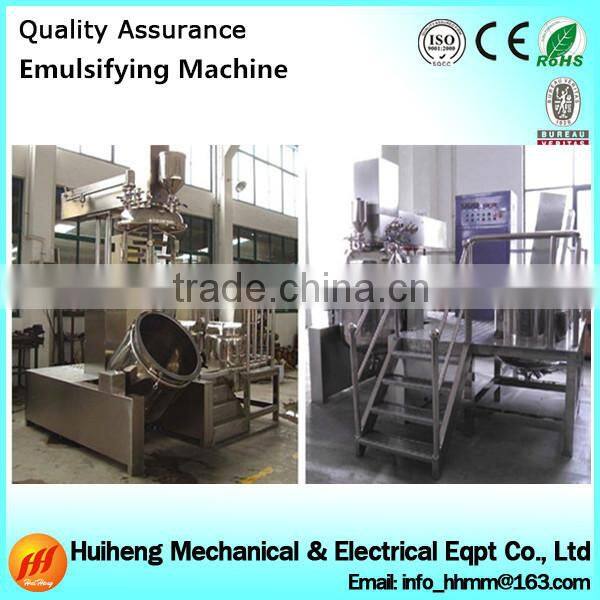

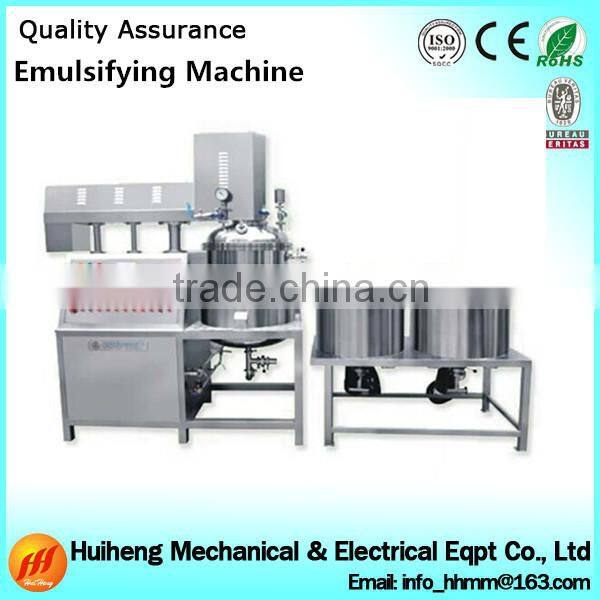

Product show:
Products Application:
It is suitable for cosmetics factory, pharmaceutical ointment, Cream category products
production, Especially it is more efficacy for high viscosity matrix and high content of
solid to emulsify and mixing.

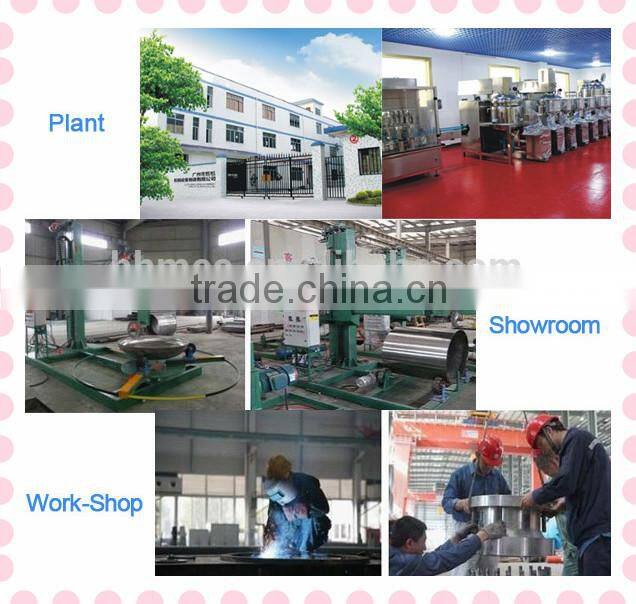

Our factory Show:
1. How about your advantages? 50~50000L Quality Assurance Stainless Steel Chemical Reactor
a. On time delivery. Chemical Tank Mixing Tank with Agitator
b. More than 10 years’ experience. Chemical Tank Mixing Tank with Agitator
c. Quality guaranteed and professional service. High Speed Dispersing Reactor Dispersing Mixing Tank
d. OEM & ODM. Various design based on client’s requirements.
Chemical Mixing Tank with Agitator Stainless Steel Mixing Tank
2. How to place order? 50~50000L Quality Assurance Stainless Steel Chemical Reactor
Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production ( 20-30 days)
→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale service.
Chemical Mixing Tank with Agitator Stainless Steel Mixing Tank
3. Any stock in factory?
Yes, some standard machines. Other models are designed and produced according to customer’s
requirements. While we can show you similar machines that we made for local customers.
Chemical Mixing Tank with Agitator Stainless Steel Mixing Tank
4. Will you send us drawing of required machine for checking?
Yes, we’d like to send you our draft drawing of the required machine . After you place order, will send you
details drawing and technical parameters. Then , will put into production once you confirm the production.
Chemical Mixing Tank with Agitator Stainless Steel Mixing Tank
5. Is there any quality warranty and after service?
The warranty period of mechanical portion of the equipment shall be a year after you received the equipment,
and help buyer installation and commissioning the equipment, and free training operator.
If you are interested in our machine, Do not hesitate to contact us directly.
