Go nogo Spline gauge measuring gauge

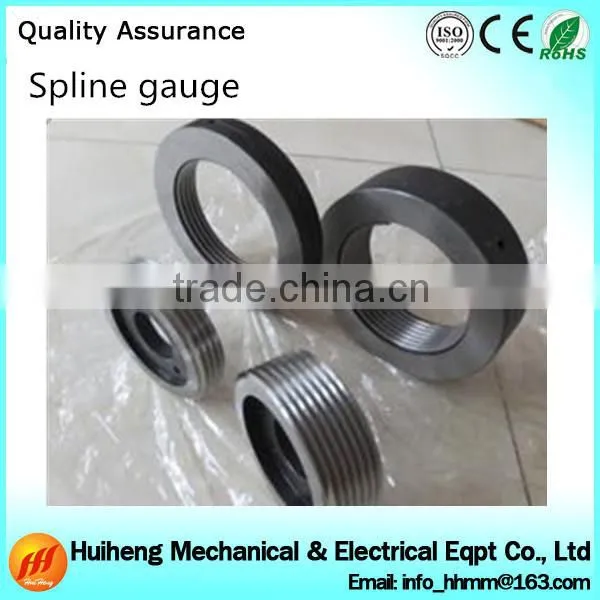

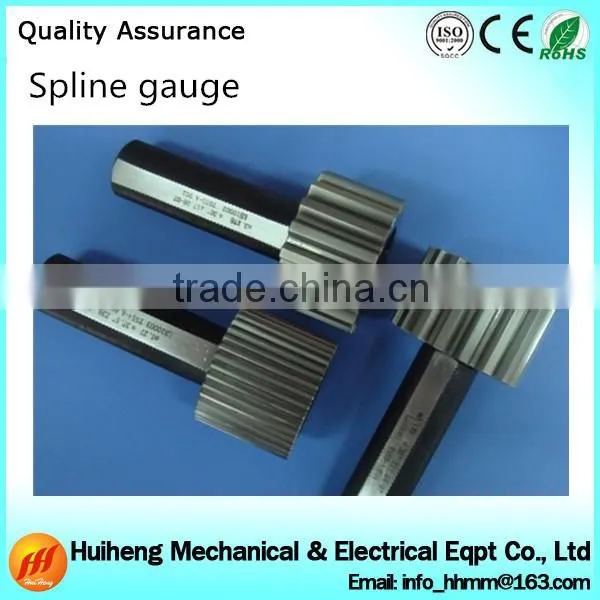

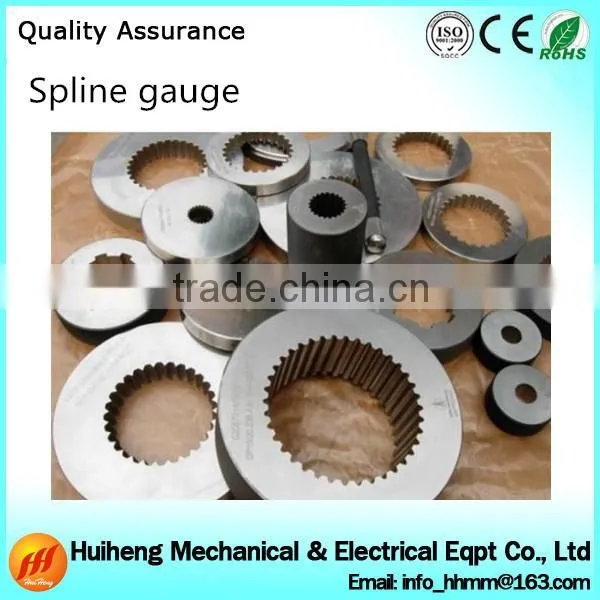

Spline gauge for internal and external spline processing or heat treatment after measurement, our company design and manufacture of spline gauge including involute spline ring gauge, rectangle spline ring gauge, triangular spline ring gauge, taper spline ring gauge. My company production of spline measuring, especially suitable for the production of internal and external spline spline qualified, unqualified judgment. To improve production capacity, improve product quality, reduce costs.
Taper spline ring gauge is used to judge internal taper spline workpiece pass / fail; according to the product drawing gauge design, also for users provide according to the German standard DIN, ANSI, Japanese Standard JIS standard design of spline gauge.
My company spline production, testing equipment are imported, the detection accuracy of up to 0.003mm, can meet the requirements of the highest standards of product testing.
Our Products' Classification:
Our company is a Professional design, production, sales and service of integrated manufacturing enterprises.
We are specializing in the production of precision measuring tools manufacturer as bellow:
1, Standard and non-standard limit ring gauge and plug gauge.
2, Screw thread gauge: metric, inch, thread ring gauge and plug gauge.
3, Metric, American ladder and special teeth type gauge.
4, All kinds of beta gauge, keyway plug gauge, Taper ring Plug.
5, Various fixture, tooling fixture.
6, All kinds of worm, mould rod, mandrel shaft.
7,The plug and ring gauge as BSP, NPT, UNC, UNF and metric and so on.
8,We can design and set up mold as your requirement,Welcome to ODM,OEM.
Regarding the inspection for the product.
Our factory has to cooperate powerful third party inspection agencies, It has the better guarantee of product quality.
The third party inspection agencies is the internationally recognized "CNAS' large calibration test center.
1. American standard thread pipe thread plug gauge
2. American standard thread pipe thread ring gauge
| Size code | Threads/inch | Taper | Plug gauge | Ring gauge | ||||
| L | N.W(kg) | D | L |
N.W(kg)
|
||||
| 1/16 | 27 | 1:16 | 59 | 0.01 | 32 | 5.005 | 0.04 | |
| 1/8 | 5.043 | |||||||
| 1/4 | 18 | 79 | 0.02 | 38 | 7.197 | 0.08 | ||
| 3/8 | 87 | 0.04 | 45 | 7.507 | ||||
| 1/2 | 14 | 101 | 0.07 | 9.942 | 0.13 | |||
| 3/4 | 112 | 0.10 | 53 | 10.425 | 0.19 | |||
| 1 | 11.5 | 117 | 0.19 | 63 | 12.369 | 0.29 | ||
| 1 1/4 | 0.27 | 71 | 12.877 | 0.38 | ||||
| 1 1/2 | 118 | 0.30 | 85 | 12.877 | 0.56 | |||
| 2 | 130 | 0.56 | 100 | 13.283 | 0.73 | |||
| 2 1/2 | 8 | 141 | 1.17 | 125 | 20.498 | 1.23 | ||
| 3 | 143 | 1.74 | 140 | 22.631 | 1.96 | |||
| 3 1/2 | 144 | 2.31 | 160 | 24.028 | 2.70 | |||
We have specialized in produce the plug and ring gauge as TR, BSP, NPT, UNC, UNF, TR, API, Spline and metric and so on for 7 years.
We have own factory, professional sales team and rich production experience.
Our mission:Providing customers with quality products, excellent service, favorable price and prompt delivery.
Our exclusive brand “Huiheng” becomes more and more popular in the market of Europe, USA, South America, Middle East, Africa etc.
Now we are looking forward to even greater cooperation with overseas customers based on mutual benefits.
Our Customers:
Packaging:
(1) Plastic box (2) Wooden box (3) Cartons
Shipping:
1. Small Order: By Express,DHL,FedEx,TNT,UPS or Air etc.
2. Large Order: By Sea.
A : Payment Terms?
Q : Paypal, T/T, Western Union Others.
A: Whether it can OEM/ODM?
Q: Yes.
A: How about the Leadtime for production ?
Q : 30 working days.
A : How about the warranty for your Thread Gauge?
Q : 1 year.
If any Item Interested in you, please don't hesitated to
contact us, we will reply you immediately.
Send Inquiry to This Supplier
