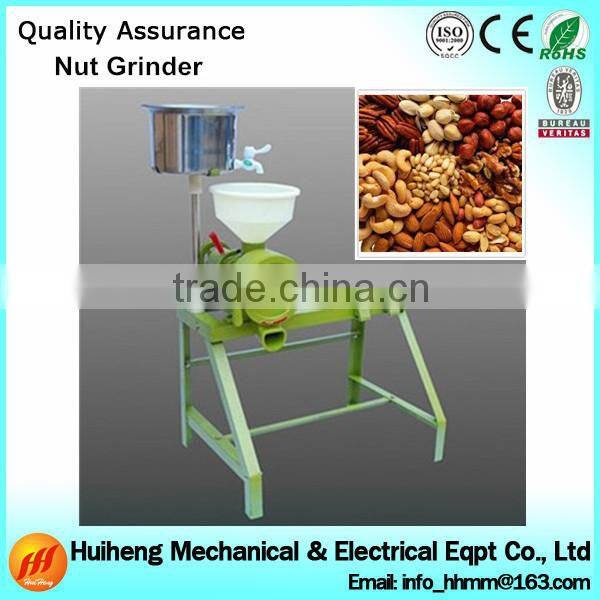

Grain Cereals Grinding Machine HHM Series Nut Grinder
HHM series grain cereals and edible pulp grinding machine mainly used for grinding chilli,and it can aslo grind bean,rice,peanut,wheat,etc.if used with emery roller,which is used in the catering field.It is easy to operate,safe,durable and healthy,it has high working efficiency.It is the ideal machine for grinding.
| Model | Productivity(kg/h) | Grinding Wheel Diameter(inch) | Motor Power(W) | Voltage/ Frequency | Pulp Temperature(°C) |
| HHM-5 | 30 | Φ5 | 370 | 220V/50HZ | Surrounding temperature+5 |
| HHM-6 | 40 | Φ6 | 550 | 220V/50HZ | |
| HHM-8 | 60 | Φ8 | 1100 | 220V/50HZ | |
| HHM-10 | 100 | Φ10 | 1500 | 380V/50HZ | |
| HHM-12 | 120 | Φ12 | 2100 | 380V/50HZ |
| Model | Parts name | Qty | G.W.(KG) | N.W.(KG) | Dimension(CM) |
| HHM-6 | mainmachine | 1 set | 25 | 24 | 44.5*32.5*33.5 |
| frame | 1 set | 9 | 8.5 | 68*8.5*50 | |
| bucket | 10pcs | 6.5 | 6 | 31*31*51 | |
| hopper | 10pcs | 4 | 3.5 | 26.5*26.5*44.5 |
| Model | Parts name | Qty | G.W.(KG) | N.W.(KG) | Dimension(CM) |
| HHM-8 | mainmachine | 1 set | 36 | 35 | 52.5*40.5*38.5 |
| frame | 1 set | 11 | 10.5 | 74*9*50 | |
| bucket | 10pcs | 9 | 8.5 | 33.5*33.5*60 | |
| hopper | 10pcs | 5 | 4.5 | 29.5*29.5*53.5 |
| Faults | Cause | Elimination |
| 1.Pulp is too coarse | 1.The clearance between grinding is too big. 2.The grinding wheels are damaged. 3.The grinding wheels are not parallel. |
1. To adjust the clearance. 2.To regrind or replace the wheels. 3. To reset it. |
| 2.Pulp"Burning" | 1.The water is insufficient. 2.The clearance between grinding wheels are too small. | 1.To add the water discharge. 2.To add the clearance. |
| 3.Low output |
1.The grinding wheels are dull. 2. The belts are too slack. |
1.To regrind or replace the wheels. 2.To adiust the distance between the motor and body or replace the belts. |
Product Instructions
1.Before use,first check whether the power supply corresponds to that required by the machine.check if the external ground wire is reliable connection.(Warning:Electrical outlet must be grounded.)
2.You must check that the new machine rotates in the direction indicated by the rotation mark,if not,get it right.
3.Please clean and soak the rice or bean into water for four hours.
4.Please put water into the bucket.then open the tap and turn on the machine.
5.Loosen the nut-locker,rotate the hand wheel slowly,adjust the clearance between the grinding wheels until the grinding wheels contact each other slightly.Then rorate the nut-locker lightly.
6.Feed the rice or bean into the funnel,open the feeding lock slowly.When the pilp flow out from the outlet normally.you could adjust the water discharge to control the thickness of the pulp.
Maitenance
1.Every few days,please add a few drops of cooking oil to the door-ear,the bolt and the bearings to prevent rusted.
2.After use,should be clean and dry the machine in time,open the machine cover to keep well ventilating to ensure hygiene.
1,All goods will be checked carefully before shipping.
2,We usually ship within 25 days of payment cleared(expect weekends and holiday).
3,Your address on account will be used as shipping address unless you inform us different address in advance. So please make sure that your address is up-to-minute.
4,If your order is very large,we can supply to free sample, you just need to bear the shipping costs.
5,Reply within 24 hours.
6,Quick delivery.
7,The brand can do yours and we accept OEM.
8,Our transports as follows,we also can transport as your requirements.
Guangzhou Huiheng Mechanical And Electrical Equipment Co., Ltd. is a leading company which specializes in manufacturing the mixers,reactors, kneaders and dispersers. Our company establishes in 2012,and enjoys great reputation in the world.
Our Main products are Mechanical Equipment,Hydraulic Equipment,Pump,Ring Gauge,Food&Beverage Machinery and Computer Accessories.
Our company introduced the advanced technology and imported advanced equipment to product our machine.Currently, our machines already exported to America, Italy, Australia, Turkey, Canada, France and 20 other countries and regions, Our Company has always focused on research, development and innovation new product.Therefore, our company is your best choose.
Our company regards “reasonable prices, efficient production time and good after-sales service” as our tenet.We hope to cooperate with more customers for mutual development and benefilts.We welcome potential buyers to contact us.
