Introduce:

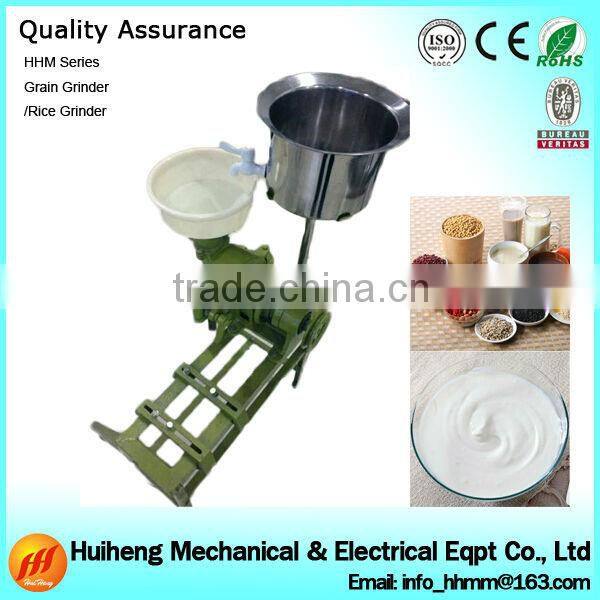

This grain grinding machine is used for grinding grain, rice, wheat, bean and peanut. It can make nice rice paste.
Advantages:
1. Stronger ABS hopper.
2. 410 stainless steel bucket.
3. Thicker frame.
4. Copper faucet.
It is easy to use with classic style.
It is automatic and safe.
It has high productivity, 30 to 120kg/h.
It is the ideal machine for grinding wet grains and making paste.
Specifications:
| Model | Productivity(kg/h) | Grinding Wheel Diameter(inch) | Motor Power(W) | Voltage/ Frequency | Pulp Temperature(°C) |
| HHM-5 | 30 | Φ5 | 370 | 220V/50HZ | Surrounding temperature+5 |
| HHM-6 | 40 | Φ6 | 550 | 220V/50HZ | |
| HHM-8 | 60 | Φ8 | 1100 | 220V/50HZ | |
| HHM-10 | 100 | Φ10 | 1500 | 380V/50HZ | |
| HHM-12 | 120 | Φ12 | 2100 | 380V/50HZ |
Packaging: Wooden Case.
Packing List for refrence:
Shipping:
By sea or by air.
1. Good before and after service.
2. professional team to solve the problems.
3. Best price and good quality.
Guangzhou Huiheng Co. Ltd.
We specialize in grain grinding machine.
Please contact me for grain grinding machine.
Here are the common questions:
| Faults | Cause | Solution |
|
1. Pulp is too coarse |
1. The clearance between grinding is too big. 2. The grinding wheels are damaged. 3. The grinding wheels are not parallel. |
1. To adjust the clearance. 2. To regrind or replace the wheels. 3. To reset it. |
|
2. Pulp"Burning" |
1. The water is insufficient. 2. The clearance between grinding wheels are too small. |
1. To add the water discharge. 2. To add the clearance. |
|
3. Low output |
1. The grinding wheels are dull. 2. The belts are too slack. |
1. To regrind or replace the wheels. 2. To adiust the distance between the motor and body or replace the belts. |
How to operate?
1. Before use, check if power supply corresponds to that required by the machine, check if the external ground wire is reliable connection. (Warning: Electricaloutlet must be grounded.
2. You must check that the new machine rotates in the direction indicated by the rotation mark. If not, get it right.
3. Please clean and soak the rice or bean into water for four hours.
4. Please put water into the bucket, then open the tap and turn on the machine.
5. Loosen the but-locker, rotate the hand wheel slowly, adjust the clecarance between the grinding wheels until the grinding wheels contact each other slightly. Then rotate the nut-locker lightly.
6. Feed the rice or bean into the funnel, open the feeding lock slowly. When the pulp flow cut from the outlet normally you could adjust the water discharge to control the thickness of the pulp.
grain grinding machine
Maitenance:
1. Once a few days, please oil the door-ear, the bolt and the bearings to prevent rusted.
2. After use, clean and dry yhe machine throughout, open the machine cover to keep well ventilating to ensure hygiene.
Please send inquiry for grain grinding machine.
