P12 full color led display module Hot sale RGB outdoor led module waterproof P12 led panel for display
- We have specifically designed the outdoor LED display for outdoor high defintion applications.Outdoor SMD/DIP LED display has protection class greater than IP65.
- Stable and reliable outdoor LED displays have excellent characteristics including high brightness,wide viewing angle great heat dissipation,environmental protection,and energy conservation.
- With a faultless display effect,outdoor led display can present gorgeous and colorful dynamic pictures and static pictures in real time.It supports high definition video signal inputs such as VGA,DVI,HDMI and others.
| Outdoor DIP Full Color LED Display | ||||
| Pixel Pitch | 10mm | 12mm | 16mm | 20mm |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Pixel Density | 10000dots/m2 | 6944dots/m2 | 3906dots/m2 | 2500dots/m2 |
| Module Resolution | 16*16 Pixels | 16*16 Pixels | 16*8 Pixels | 16*8 Pixels |
| Module Size | 160*160mm | 192*192mm | 256*128mm | 320*160mm |
| Cabinet Resolution | 96*96 Pixels | 80*80 Pixels | 64*64 Pixels | 48*48 Pixels |
| Cabinet Size | 960*960mm | 960*960mm | 1024*1024mm | 960*960mm |
| Driving Mode | Constant Current | Constant Current | Constant Current | Constant Current |
| Scanning Mode | 1/4 Scan | 1/4 Scan | Static | Static |
| Brightness | 7500~8000cd/m2 | 7000~7500cd/m2 | 6500~7500cd/m2 | 5500~6000cd/m2 |
| Power Consumption | 1000w/m2 | 800w/m2 | 1000w/m2 | 600w/m2 |
| Best Viewing Distance | >12.5m | >15m | >20m | >25m |
| LED Types | DIP346 | |||
| Viewing Angle | Horizontal:120° Vertical:60° | |||
| Refresh Rate | 600Hz | |||
| Life Time | 100,000 hours | |||
| Display MTBF | 10,000 hours | |||
| Blind Pixels Rate | < 0.3‰ | |||
| Control Method | Synchronous or Asynchronous | |||
| Input Voltage | AC220V/110V±10%, 47~63Hz | |||
| Cabinet Material | Cold rolled steel or Aluminum | |||
| Waterproof Grade | IP65 | |||
| Working Environment | -20°C~+60°C, 15%~95%RH | |||

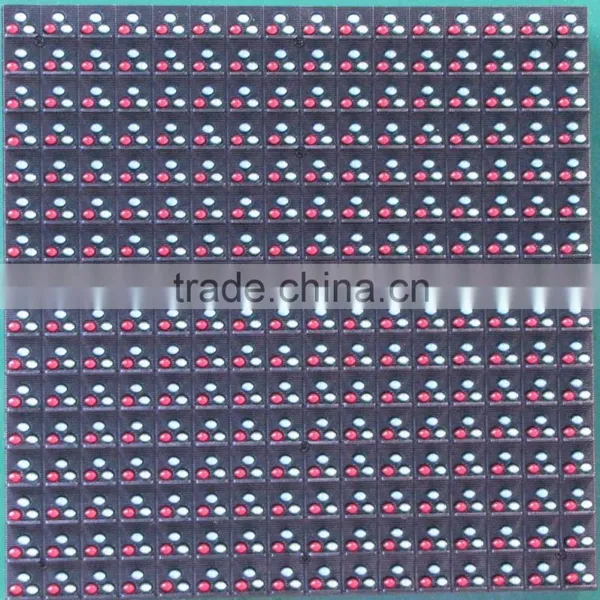

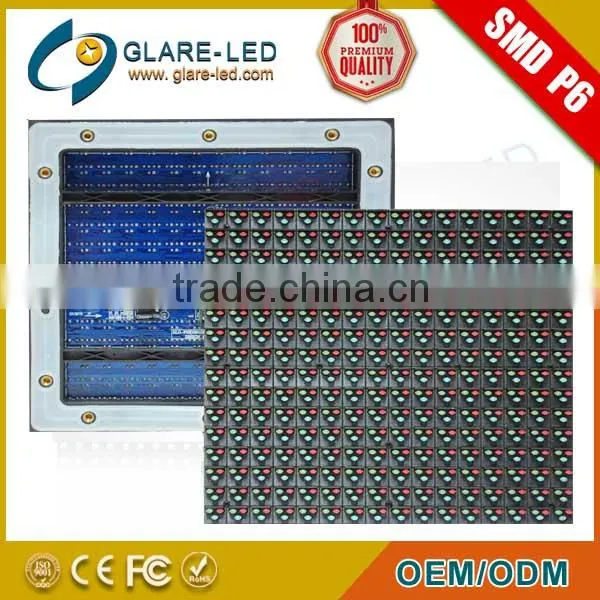

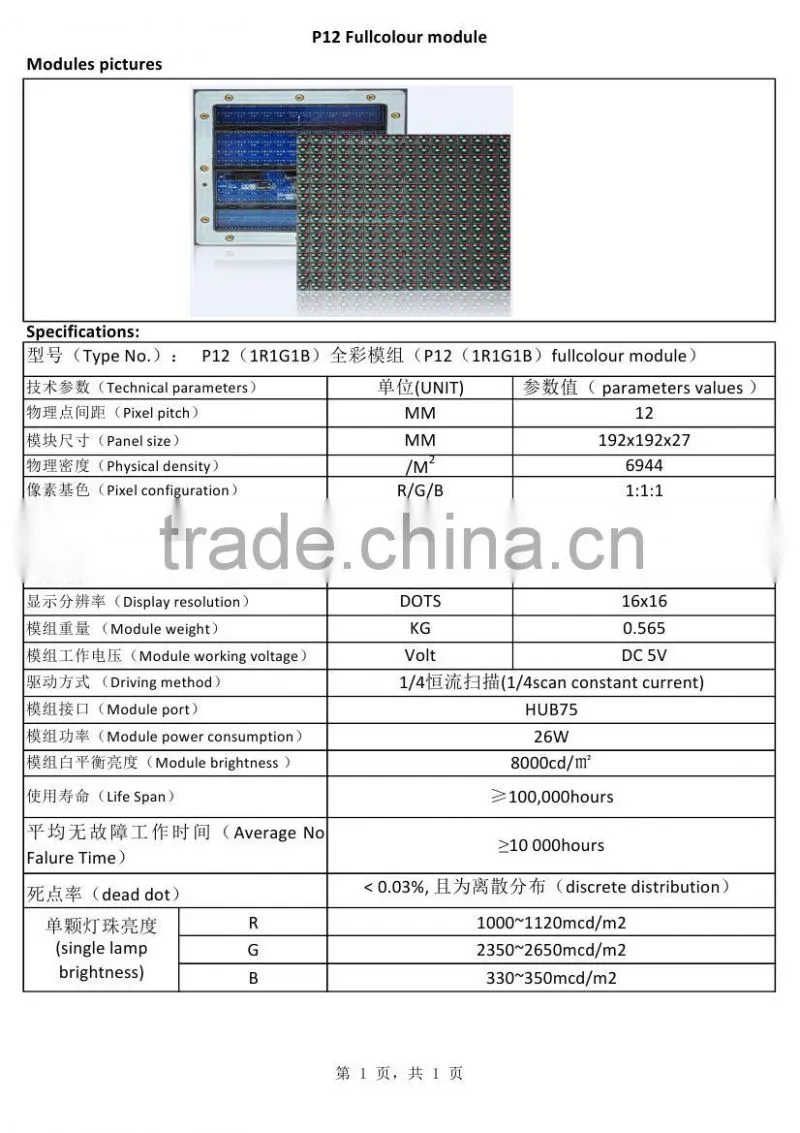

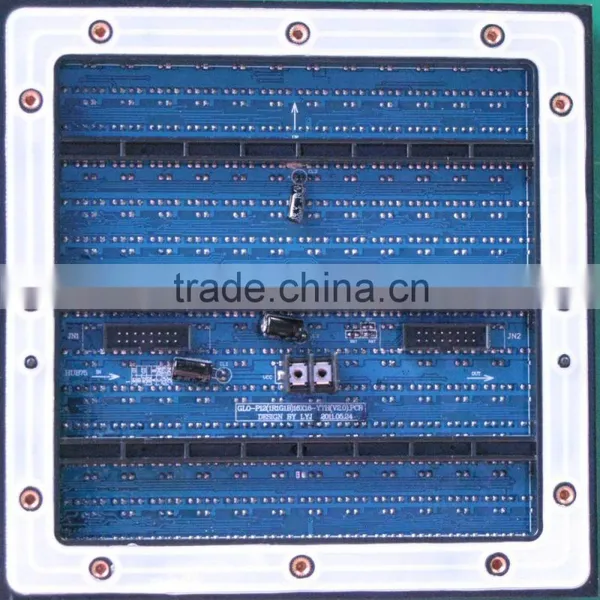

Module Picture
| LED specification: | ||||||
| Item | Luminous Intensity | Viewing Angle | Wavelength | Test Condition | Origin | Remark |
| Red LED | 300~500mcd | H/V: 120º/60º | 620~630nm | 25°C,20mA | Epistar | DIP346 |
| Green LED | 1800~2200mcd | H/V: 120º/60º | 620~630nm | 25°C,20mA | Silan | |
| Blue LED | 250~500mcd | H/V: 120º/60º | 465~475nm | 25°C,20mA | Silan |
Communication methods:
Application:
Outdoor LED display range offer many different resolution options that are suitable to a variety of applications
in the rental & staging market as well as for fixed Outdoor installations: Entertainment venues, Sports stadiums,
Outdoor advertising, etc.
Packing & Shipping:
Packing: 1) Three-ply wooden case. 2) 2pcs per box. 3) Built-in foam.
Shipping: 1) By International Express, 3-5 days. 2) By Air, one week. 3) By Sea, one month.
Certificates:
About Glare-LED:
Q: What's the best message to capture the attention of passers by?
A: Simple information (such as time and temperature) turns your LED Screen sign into a landmark, or message center, that people will use on a regular basis. LED signs are also great for promoting timely information such as events and/ or special offers. The ways you choose to format and display messages on your LED sign are up to you - from videos to animation to EasyArt images!
With LED Displays, content is king. Just as you would carefully design an ad in a magazine to convey just the right message... Choosing the right content from your LED display is important. The difference being that with your LED Display, you can change and alter your messages on a moment by moment basis with no extra cost. Monitor the effectiveness of the messages displayed and build future advertising on that basis. Ask customers what brought them in, track responses, create a LED Display only ad. There are many options when creating messages for your display to capture the most attention.
Q: How can I be sure I'm buying a quality product? How can I know I'm getting full value for my investment?
A: While almost any LED screen sign will get your message across for the next year or so, what about 5 years down the road-and longer? Glareled LED signs are rigorously tested for resistance and durability in extreme temperatures from -40° to 120° F. Just a small part of why we're so confident offering our standard warranty.
