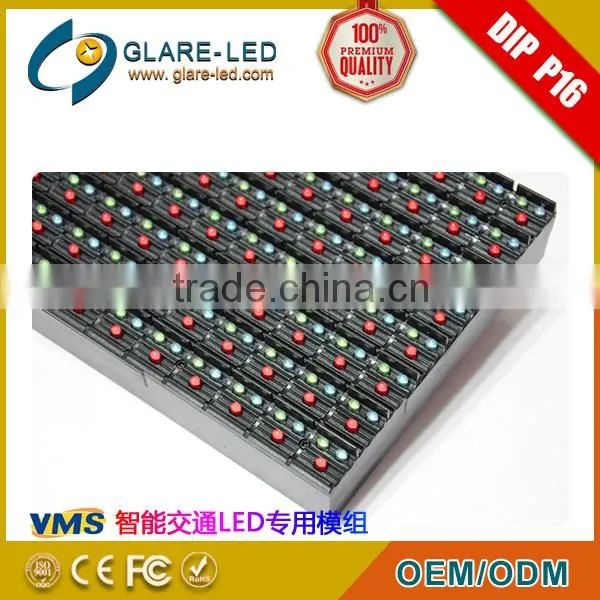

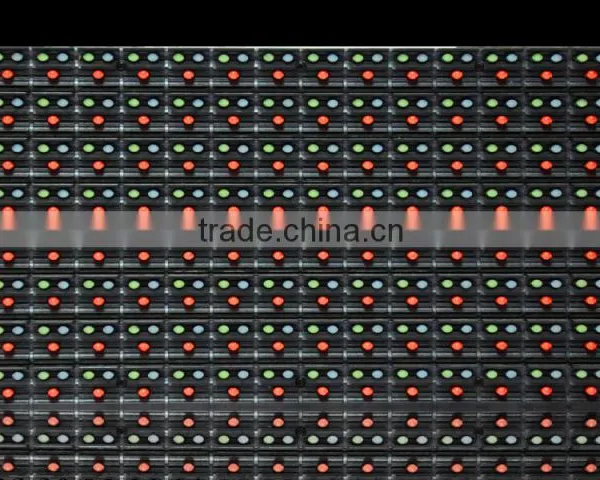

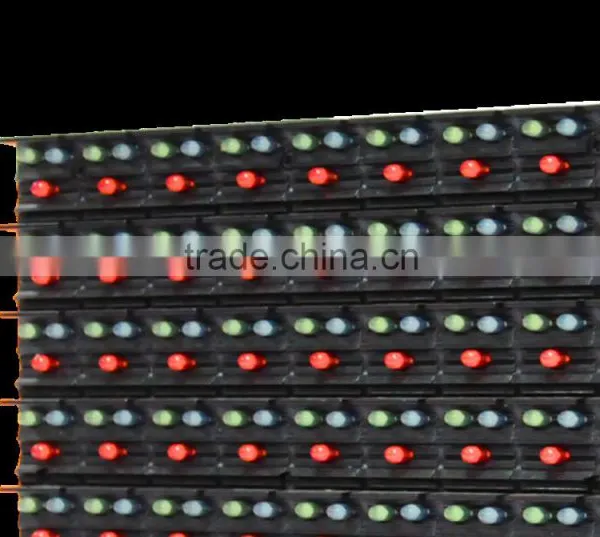

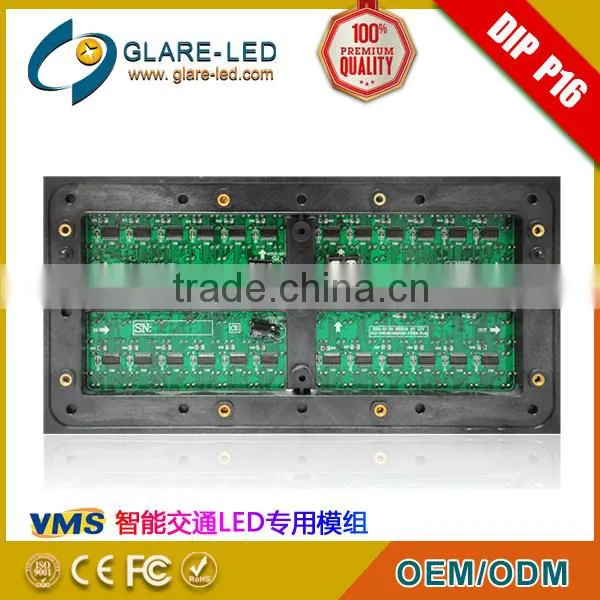

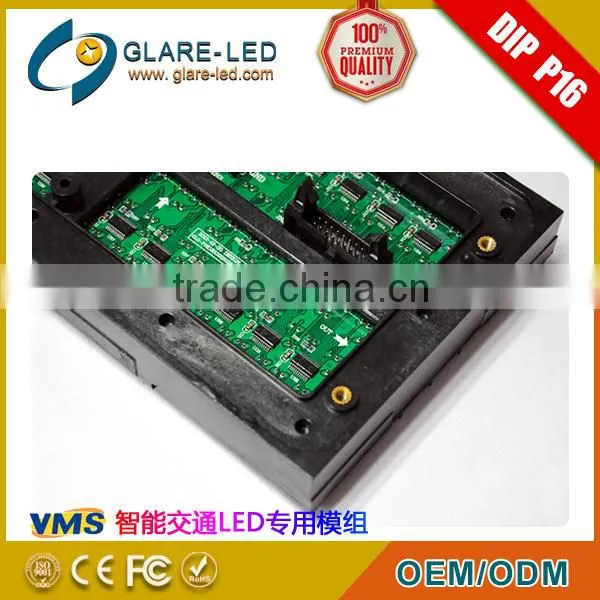

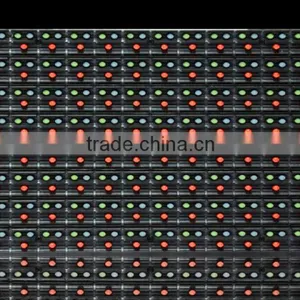

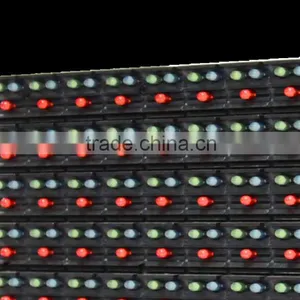

P16 module for led traffic display roadside guide indicate screen
Features
1 High brightness: use ultra-high brightness LED, the display are still visible when exposure to direct sunlight.
2 High uniformity: good performance in uniformity, color consistency and clarity.
3 Good flatness: the flatness of module mounting surface must be in the range of ±0.1mm
4 Good effect: adopts not line proofread technology, so that the photo is more clear and arrangement is stronger
5 Patent mask: a unique design of lower inclination, reduce waste and increase the effective viewing angle;
6 Strong Reliability: the use of a variety of scanning technology and modular design techniques, with higher reliability and stability;

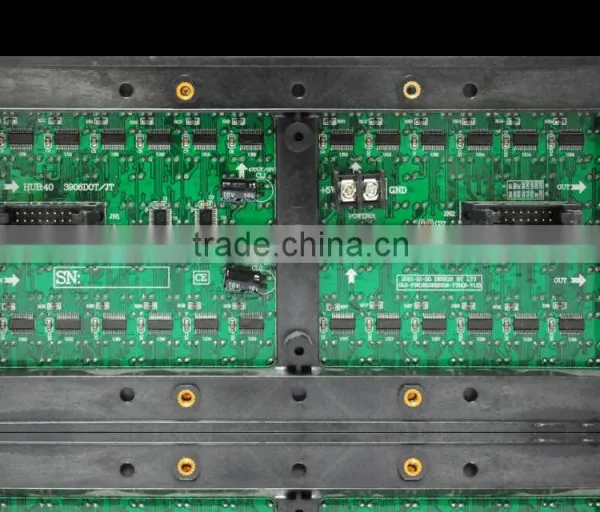

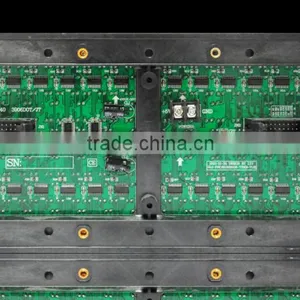

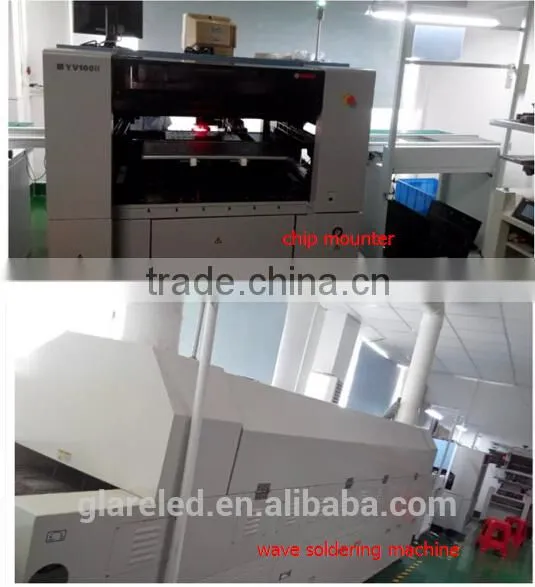

7 Stable board: PCB board using wave soldering process, with green oil and oxygen barrier, preventing the wet oxidation of the line, and improve the lifespan;
8 with 3-resisting lacquer: protect circuit boards and related equipment from the erosion of the environment; has good resistance to high temperature; after cured into a transparent protective film, with excellent insulation, moisture-proof, leak-proof, shock-proof dust, corrosion, aging resistance, corona and other properties;
9 Waterproof Glue: with automatic irrigation machines, to ensure the uniform, smooth, waterproof;
10 Rigorous testing: products through a series of strict inspection measures, such as raw materials inspection, production process inspection, product testing, and aging testing,etc.
| Product list | ||||||||
Product Type |
Pixel Pitch | Pixel Composition | Resolution | Encapsulation mode | Consumption | View Angle | Brightness | Module Size(mm) |
| W/m2 | ||||||||
| Amber | DIP346 | 350 | 100° | 3000cd/m2 | 128*256 | |||
| Single color | P16 | 2A | 8*16 | |||||
| Dual Color | P16 | 2R1G | 8*16 | DIP346 | 1000 | 100° | 7000cd/m2 | 128*256 |
| Full color | P16 | 1R1G1B | 8*16 | DIP346 | 1000 | 100° | 9000cd/m2 | 128*256 |
| Technical parameters | |
| Item | Parameter |
| LEDs | LED for Traffic Usage |
| Pixel | P16 |
| Dimension | Customized |
| Cabinet Material | Aluminum or Iron |
| Color | Mono color,Double color,Full color available |
| Density | 3906 dot/m2 |
| Brightness | Manual operation or Automatic different level adjustion |
| Watching Distance | Static 300M, Dynamic250M |
| Control Way | Asynchronous |
| Communication Interface | RS232/RS485/RJ45/GPRS/3G,,, |
| Rate of scan | >120hz |
| Lifespan | 100,000 hours |
| Malfunction dot rate | <1/10000 |
| insulation resistance | >100MΩ |
| Hi-pot test | 1500V/50Hz for 1 minute,No break,Pass |
| Crash test | Pass |
| Vibration Test | Pass |
| Driving Mode | Static constant current |
| IP Rank | IP65 |
| Working Humidity | 5%-95% |
| Working Temperature | -40℃~+75℃ |
| Power supply | AC220V±18% / 50Hz±10% |
| AC380V±18% / 50Hz±10% | |
| Certification | CE/FCC/ROHS… |
project for reference:
Standard Wooden Box Packing make this high way LED display in the best condition:
1)TT 50% As deposit +50% Balance before shipping after examine goods.
2)West union, L/C at sight etc. are all ok.
3)In general, 5~7 days after deposit, Accurate production time depends on production schedule .
4)Sample will be shipped by DHL.
5)Normal export wooden and Carton case package .
6)We will always tracking and helping you get the best Purchasing experience.
