Home > Electrical & Electronics > Telecommunication & Broadcasting > VoIP Products > Broadband Gateway HT-842R 4 Port VoIP Gateway 4-Port FXS Gateway

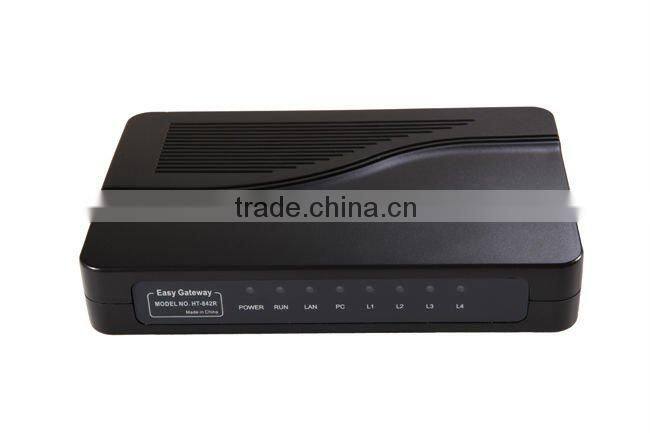

Broadband Gateway HT-842R 4 Port VoIP Gateway 4-Port FXS Gateway

Name: Broadband Gateway HT-842R 4 Port VoIP Gateway 4-Port FXS Gateway
Brand: SKYLINE
SKU: 131622389
Availability: InStock

Broadband Gateway HT-842R 4 Port VoIP Gateway 4-Port FXS Gateway thumbnail-1

Broadband Gateway HT-842R 4 Port VoIP Gateway 4-Port FXS Gateway photo-1

US$ 84 - 84.01 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SKYLINE

Model Number:

HT-842R

Contact Supplier Request Quote Chat Now

Skyline (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SKYLINE

Model Number HT-842R

Type VoIP Gateway

Specifications

1,ata/ VoIP FXS Gateway 4 FXS VOIP
2,Support H.323 and SIP
3,router function
4,VLAN and QoS
5,NAT Transversal

ata/ VoIP FXS Gateway 4 FXS VOIP Description

The four FXS Ports VoIP Gateway (HT-842R) is designed as a compact, high performance, and low cost Analog Terminal Adaptor (FXS Gateway). It comes with 4 FXS ports to interface with traditional analog phone sets or PBX trunk lines for VoIP communications. The HT-842R is a full featured FXS gateway and is designed for easy installation and configuration. It supports the two most widely used Open VoIP Standards (SIP and H.323). This allows the HT-842R to interoperate seamlessly with soft switches or IP PBXs made by various vendors. Its high performance offers toll quality voice, flexible networking, and feature-rich call functions. It is an ideal low cost solution for SME environment where multiple lines are required.

Key Features

Static IP support
Switch mold support
support DHCP,PPPOE
Open Standard VoIP Protocols (ITU H.323 V4 and IETF SIP V2)
Two 10/100 Ethernet for WAN / LAN connections
Peer-to-Peer IP Calls
Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
Line Echo Cancellation
VLAN and QoS support
NAT Transversal and Router functions
Voice prompts, HTTP Web, Auto Provision support for configuration and updates
Highly stable embedded Linux operating system in high performance ARM 9 Processor

Basic Features

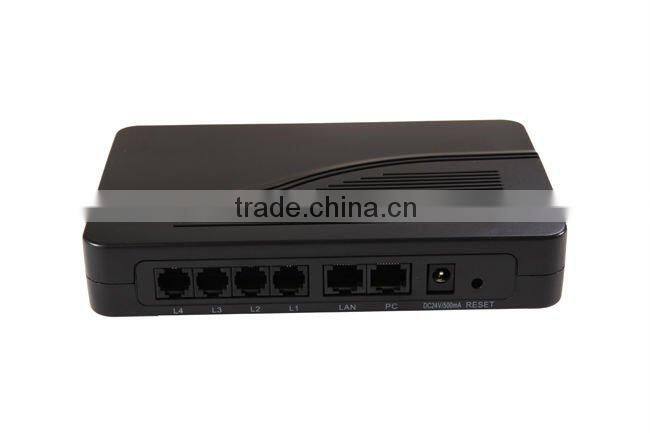

Four RJ-11 FXS port for traditional phone set or PBX's trunk line
LEDs for Power, Ready, Status, WAN, PC, FXS
Call Forward, Call Hold, Call Transfer
Dial Plan
Caller ID
3 times re-password
Billing support
Keyboard setting
IP voice enrollment

Enhanced Features

Dynamic selection of codec
Advanced jitter buffer
Automatic traversal of NAT and firewall
VLAN / Qos
Router
Echo cancellation for Speakerphone
Comfort noise generation (CNG)
Voice activity detection (VAD)
Auto provisioning (requires auto provisioning server)
On line firmware upgrade
Multi-language support: English and Chinese

Supported Standards

ITU: H.323 V4, H.225, H.235, H.245, H.450
RFC 1889 RTP/RTCP
RFC 2327 SDP
RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
RFC 2976 SIP INFO Method
RFC 3261 SIP
RFC 3264 Offer/Answer model with SDP
RFC 3515 SIP REFER Method
RFC 3842 A Message Summary and Message Waiting Indicator
RFC 3489 Simple Traversal of User Datagram Protocol (UDP) Through Network Address Translators (NATs)
RFC 3891 SIP “Replaces” Header
RFC 3892 SIP Referred-By Mechanism
draft-ietf-sipping-cc-transfer-04 Session Initiation Protocol Call Control - Transfer
Codec: G.711 (A/µ law), G.729A/B, G.723.1
DTMF: RFC 2833, In-band DTMF, SIP INFO

Hardware Specifications

Processor: ARM9E 133MHz
DSP: VPDSP101 95MHz
Memory: RAM 16MB/ Flash 4MB
Power: Input AC100V ~ 240V, output 24VDC / 300mA
Power consumption: 8W maximum
Network card: 100/10Base-T x2
LED: Operation and lines light
RJ11:four 24V feed 48V ring
Operating temperature: 10°C to 40°C (32°F to 104°F)
Storage temperature: 0°C to 50°C (32°F to 122°F)
Working Humidity: 40% ~ 90% Not congealed
Weight: 650 g (1 lb) (Including AC/DC Adapter)
Warranty: one year

Example:
peer to peer:it is a new function that you can use our voip without platform,what is more,it is free roaming for international call.you just pay the local call

Model 1:

Model 2:

Model 3:

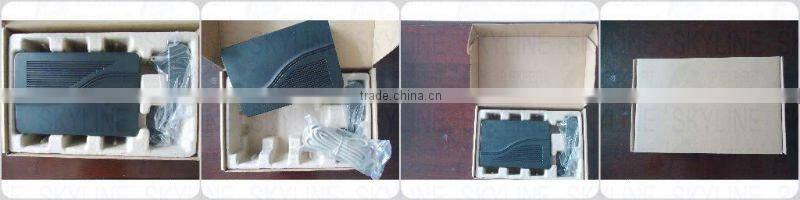

Pictures and Package:
