Help CenterMetal Sheet Hydraulic Shearing Machine, QC11Y-20X6000 Guillotine Shears With MD11 and E21S Controller
Related Products
-
QC12Y Sheet Metal Shear Machinery , Hydraulic Pendulum Plate Shears , Metal Cutting ShearsNegotiableMOQ: 1 Set -
Hydraulic Pendulum Plate ShearNegotiableMOQ: 1 Set
-
Sheet Metal Used Shearing MachineNegotiableMOQ: 1 Set
-
Small Shearing Machine,Hydraulic Sheet Metal Cutting Machine,cnc Sheet Metal Shearing MachineNegotiableMOQ: 1 Set
-
Mild Steel Plate Shearing MachineUS$ 7,000 - 12,000MOQ: 1 Set
Nanjing huangshi machine tool manufacturing co.,ltd
address:Mingjue industrial park.lishui district.nanjing city.jiangsu province
welcome to visit our factory!

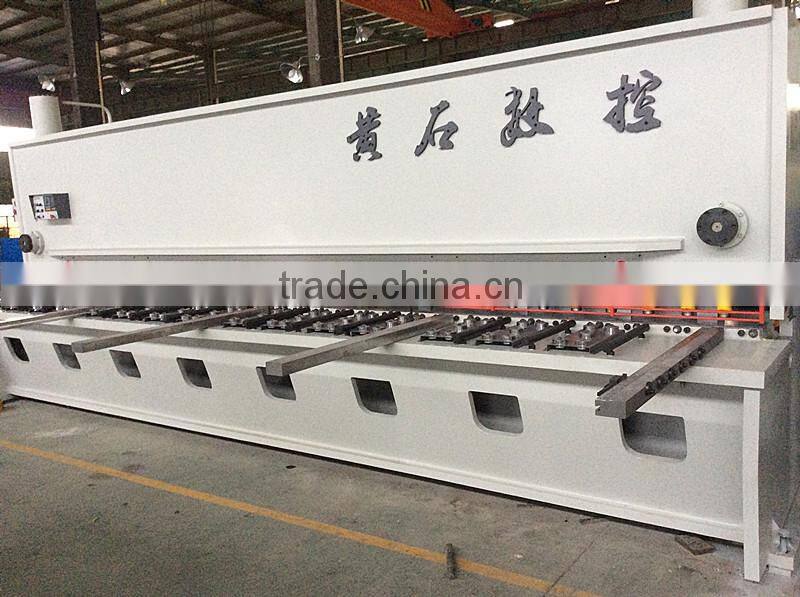

QC11Y20*6000 Metal Cutting Machine,cnc guillotine shear,cnc shearing machine
| TECHNICAL FEATURES | ||
| 1 | Type | CNC Guillotine type |
| 2 | Cutting length | 6200mm |
| 3 | Cutting thickness | 20mm |
| 4 | Shear angle | 0.5-2.5 degree adjusted |
| 5 | Number of stroke per minute | 5 |
| 6 | Throat depth | 100mm |
| 7 | Stroke back gauge | 10-1000mm |
| 8 | Main motor | 32kw |
| 9 | Main Electric elements in Cabinet | Schneider |

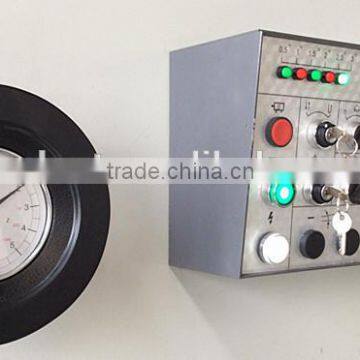

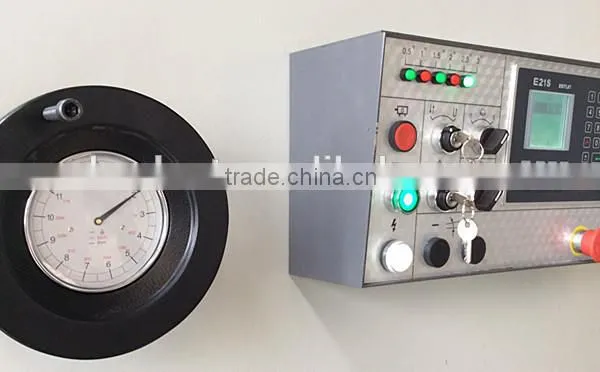

| 10 | Counter on back gauge | Delem DAC360,ESTUN E21S |
| 11 | control axis | X + 3 |
| 12 | control details | backgauge,stroke, blades clearance or pressure |
| 13 | G.W. | 47000 KGS |
| 14 | before packing size(mm) | 7350*3500*3400 mm |
1. Warranty: 14 months after delivery the goods.
2. Payment: 30% down payment and 70% paid after receiving the copy of the documents.
3. Delivery: 30 days after receiving 30% down payment.

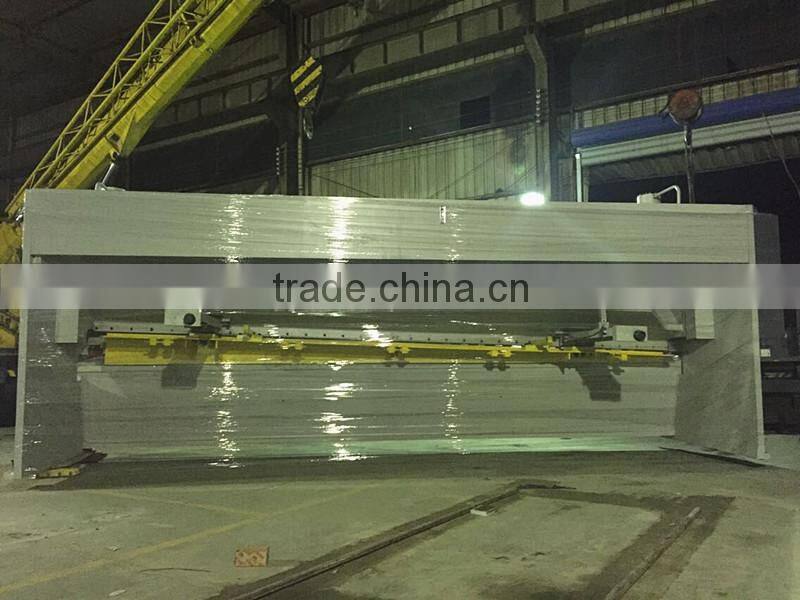

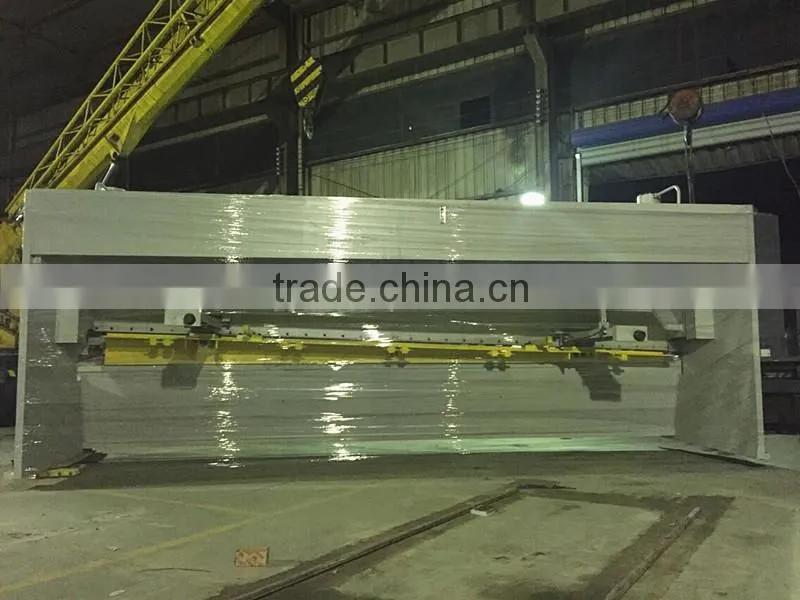

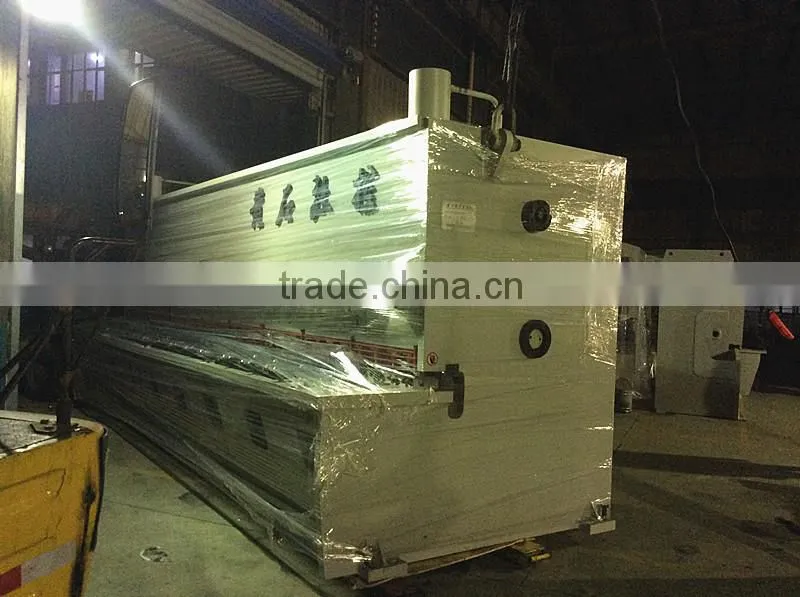

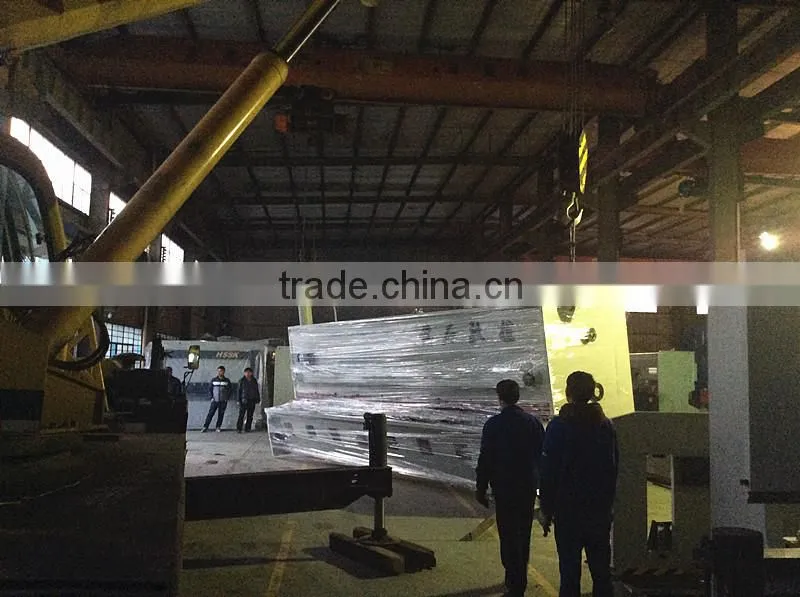

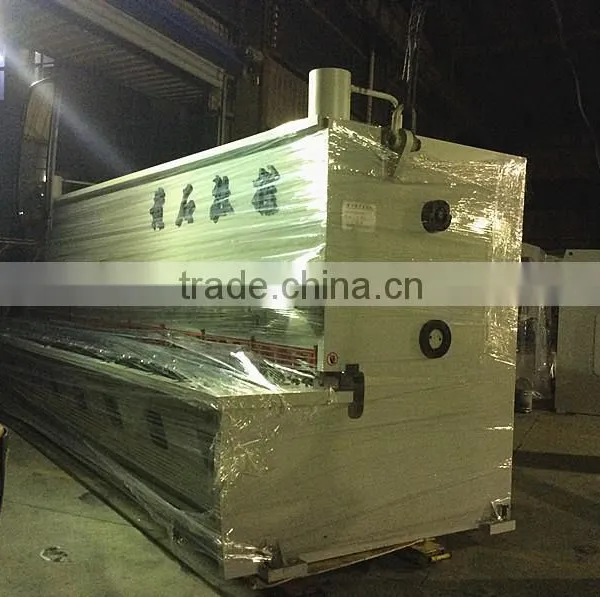

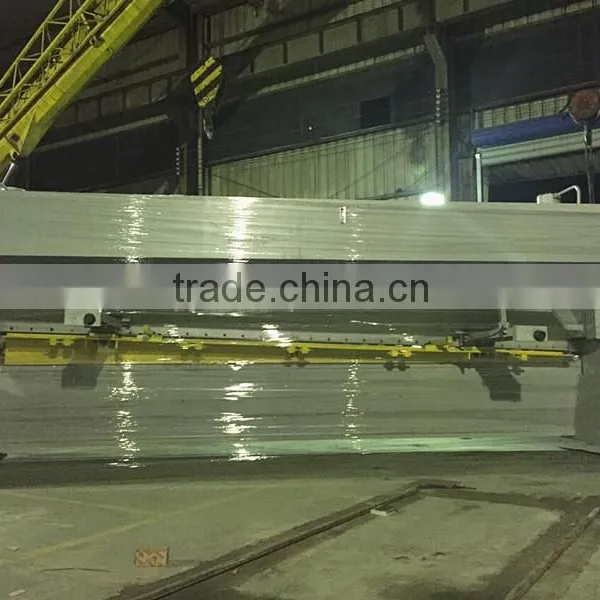

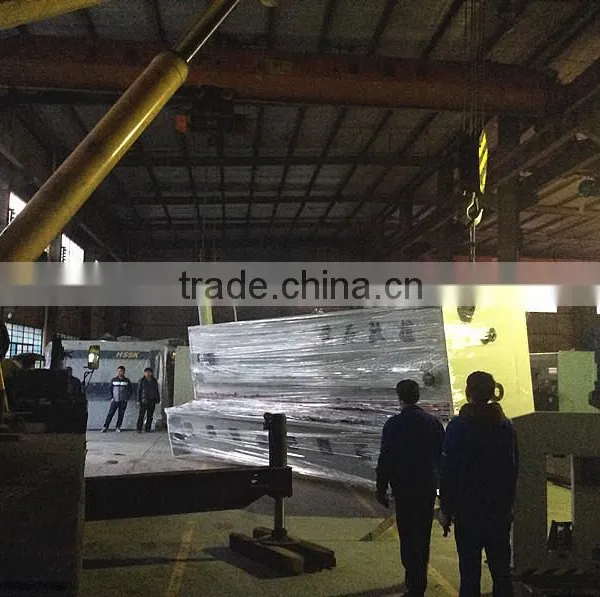

4. Loading: Plastic cover coat, through containers
5. Technique support and service: support twice operating training, first one is at my factory during the processing time, second one at the buyer’s factory during the re-installation/testing period. We will send our engineers go to buyer’s factory help to re-install this machine if customer required, and the customer need to pay for heir flight tickets(go and back), room and board, local travel cost.
