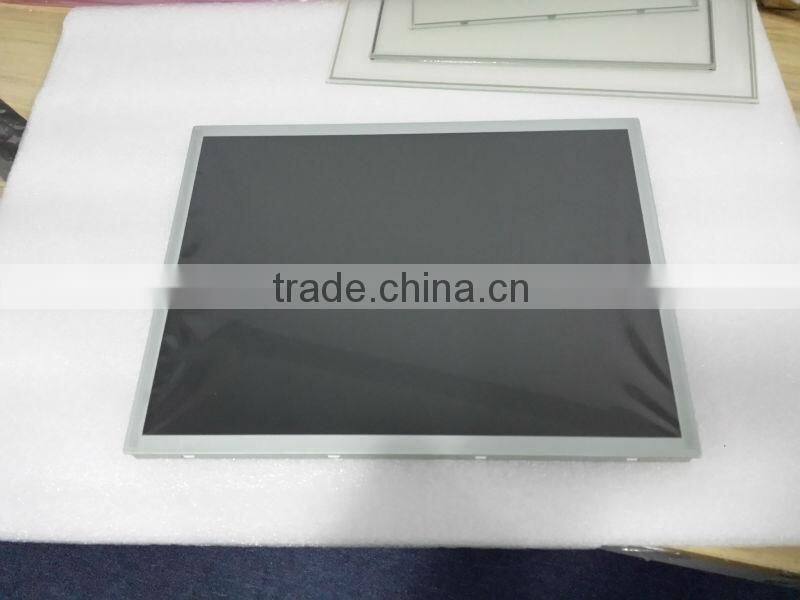

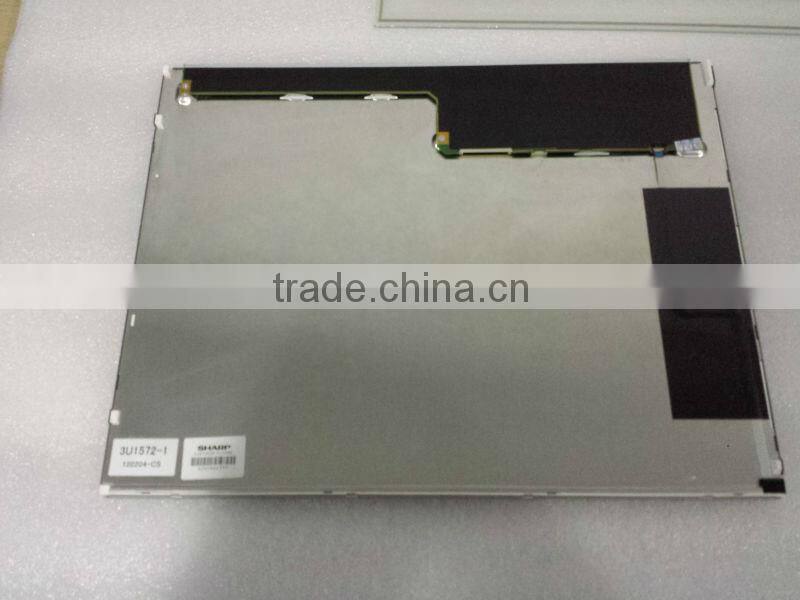

TFT lcd display 15 inch LQ150X1LG96 high brightness, price less us$60 :
Features:
1)Original guarantee;
2)Competitive prices;
3)Offer 12 months of warranty;
4)Original technology support.
5.) Replaceable lightbar
| Model | LQ150X1LG96 |
| Size | 15.0" |
| Resolution (pixel) | 1024x3(RGB) x 768 |
| Active Area(mm) | 304.1(H) x 228.1(V) |
| Pixel Pitch (mm) | 0.297 x 0.297 |
| Display Mode | TN, Normally White |
| Color Saturation (%) | 60 |
| Support Colors | 16.2M (6-bit + FRC) |
| Viewing Angle (R/L/U/L) | 80/80/65/80 |
| Brightness (cd/m²) | 1050 |
| Contrast Ratio | 800:1 |
| Response Time (ms) | 8 |
| Supply Voltage (v) | 3.3 typ. |
| Light Source | LED |
| Outline Dimension (mm) | 326.5(W)×253.5(H)×9.6(D) |
| Weight (g) | 950(Max.) |
| LED Life Time(H) | 30,000(min) |
| Temperature Range |
operating: 0 to +65 °C storage: -30 to +70 °C |
Surface Treatment |
Anti-glare, Hard coating(3H) |
| Electrical Interface | LVDS(1 ch, 6/8-bit) |
ROHS Compliance |
ROHS Compliance |
According to customers' various requests, we can match all accessories which inclusive of driver board, touch screen, LED backlight & LVDS cables.
Quality promised, 100% original,fast delivery,also enjoy one year guarantee !
Package details:
Main brand:
* Leehon is one of the main agents for AUO/Tianma/Innolux/Mitsubishi/CMI five brands tft lcd moulds in China from 2009, so from here you can get the most competitive price for real products;
Range of size:
* Leehon can provide the lcd from 2.2 inch to 24 inch with stable supplied;
Quality control system:
* All the panels are 100% original and brand new, no fake panels exists, quality promised; And also Provided 12 months of warranty, you can return any fake panels and charges by us, so from here you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check then;
The most competive price for real products:
* Here will send the products from the original factory directly to control the price and quality.
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from here you can get more convenient delivery;
Our parters:
* Products are sold to more than 20 countries, regular supplier of Marvell(USA), EUROCOMPOSANT(Franch), Jabert Italia srl(Italy), Russian Federation(OOO West-Ost ) etc., so from here you can get more stable supplying promise; to be continue......
* Application: Idea for Aviation, POS, ATM, Kiosk, Marine, Medical, MFP, facotry automation
After-Sale service:
*Leehon will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;
To choose the best TFT LCD solution:
*Pls choose your interested tft lcd with model number,size, resolution, brightness, operating temperature or life time in our alibaba website http://cnhzlh.en.china.cn,
*More products' info, pls welcome to visit our website
*To get the latest prices and delivery time, pls feel free to contact me.
