Help CenterFSTN or STN Type 122x32 Graphic Lcd Module
Related Products
-
12864K45G 128x64 Cog Type Dot Matrix DisplayUS$ 1 - 20MOQ: 500 Pieces -
HTN Positive Segment Lcd Display for Thermostat , Temperature LcdUS$ 0.9 - 1.2MOQ: 1000 Pieces
-
COG Type 128x64 Graphic Lcd Display With White on BlackUS$ 1 - 10MOQ: 500 Pieces
-
COG Type Graphic Lcd Module 128x64 With Yellow Green BacklightUS$ 1 - 4MOQ: 500 Pieces
-
COG Type 132x64 Graphic Lcd Module With Green or Blue BacklightUS$ 1 - 3.5MOQ: 500 Pieces

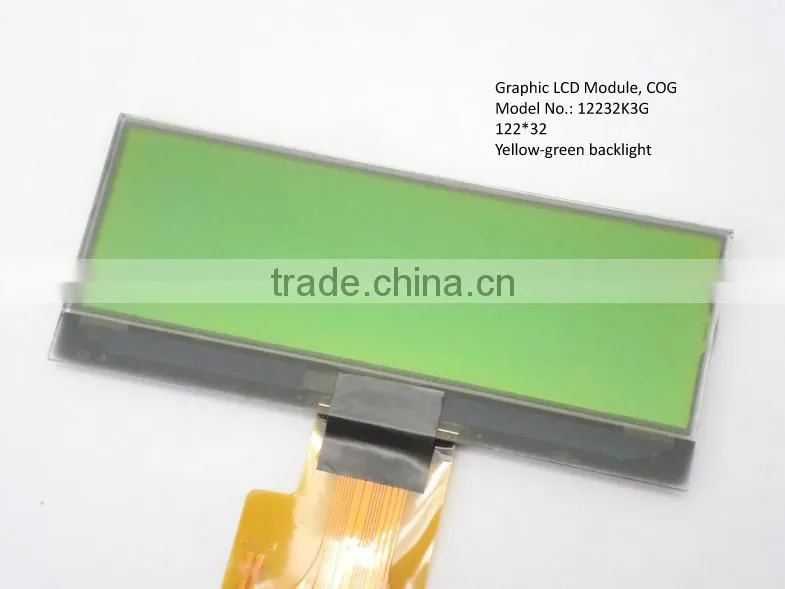

| product name.: | graphic lcd module, COG |
| Model NO.: | 12232K3G |
| Resolution | 122*32 |
| LCD Outline Size: | 62.9*26.6*4.90 mm |
| View Area: | 59.50*18.10 mm |
| Active Area: | 57.31*14.37 mm |
| Display Type: | STN |
| lcd glass color: | Yellow-green (Blue/Gray/Black, customize ) |
| Polarizer Type: | Transflective,positive |
| View Direction: | 6:0 O'Clock |
| VDD | +3.0V |
| Drive Method: | 1/33 Duty; 1/6 Bias, 7.7V |
| Controller IC: | ST7567 |
| interface: | Serial port |
| Backlight type: | green |
| Backlight Supply Voltage: | +2.7V, 10mA |
| Operating Temp: | –10ºC TO +60ºC |
| Storage Temp: | –20ºC TO +70ºC |

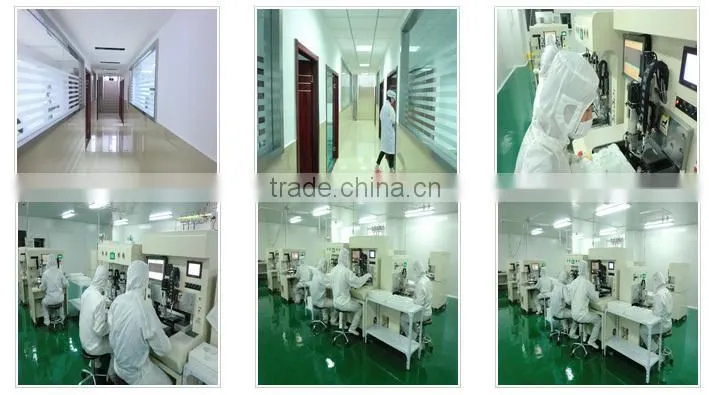

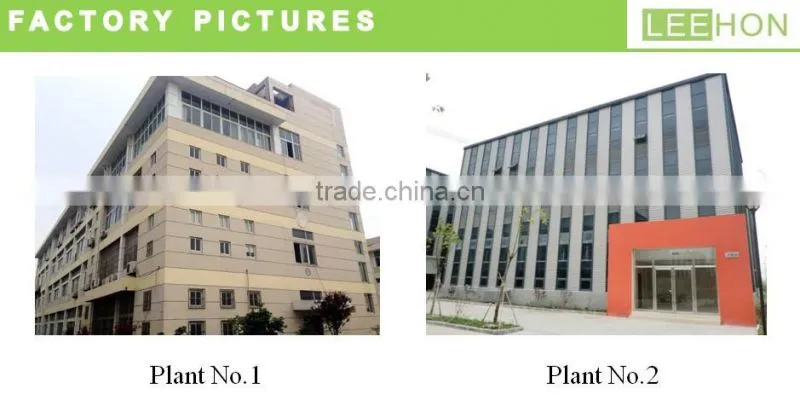

We are founded in Year 2009, being a manufacturer of liquid crystal display (LCD) and liquid crystal display module (LCM). with strong ability on R&D, production and marketing. Our Production plants are located in NanJing China, with floor space 3500/m2, and advanced equipments and a group of experienced, skillful industry elite.

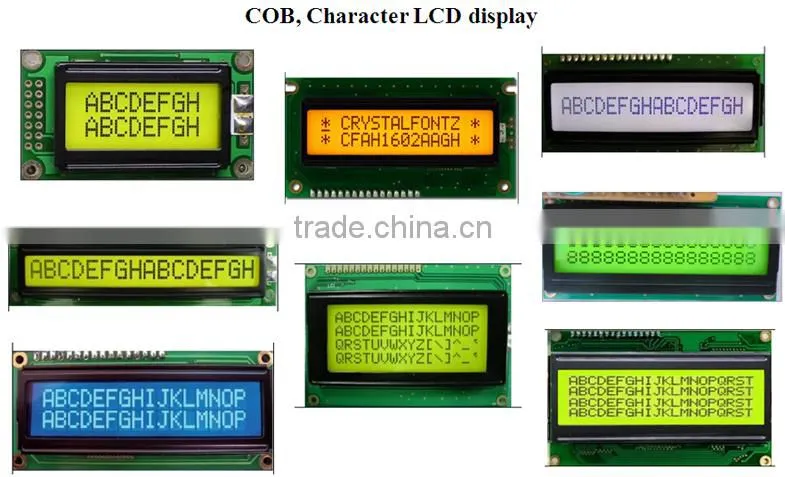

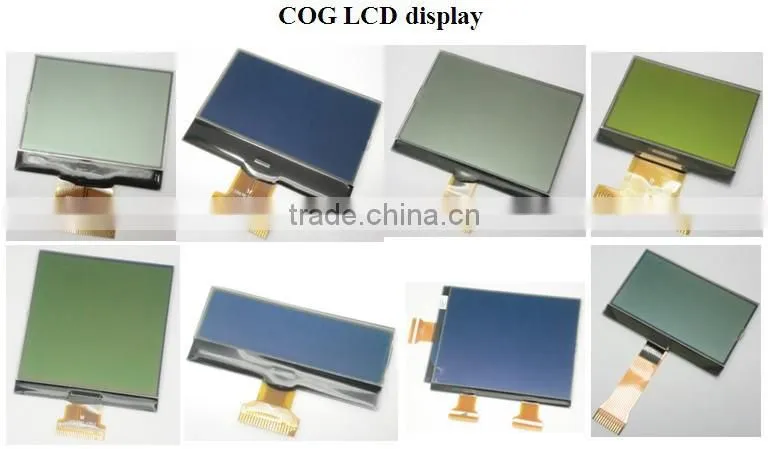

Our thousands of products covers LCD,LCM,COG,COB including 122x32,128x64,128x128,160x160,192x64,240x128,320x240,etc.We can also customize special needs for our customers . Those products have been widely used in medical , military , electric power , industrial control , aerospace , electronics , instrumentation , numerical control machine tools , automotive electronics , communications and other fields
We firmly believe that science and technology is the first productivity . These years we achieved rapid development through constant innovation and research . Each year, we invest 10% to develop new products to realize the company's sustainable development.
We already passed the approval of ISO9001/2008 and ISO14001/2004. our leading production facilities, a sound quality control system and advanced detection technology ensure our products of high quality and stable performance, providing customers with satisfactory service.
Welcome to customize product!
More products' info, welcome to visit our website: !
Or contact :
Susan Wang
Skype ID: leehon806
MP:0086-13136181392
