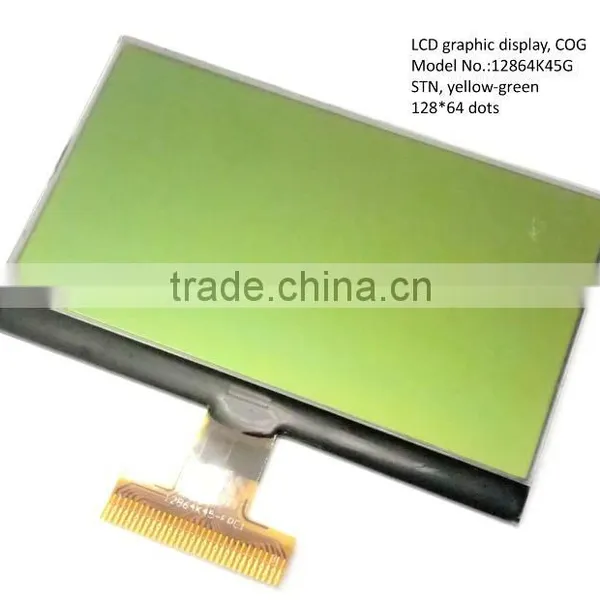

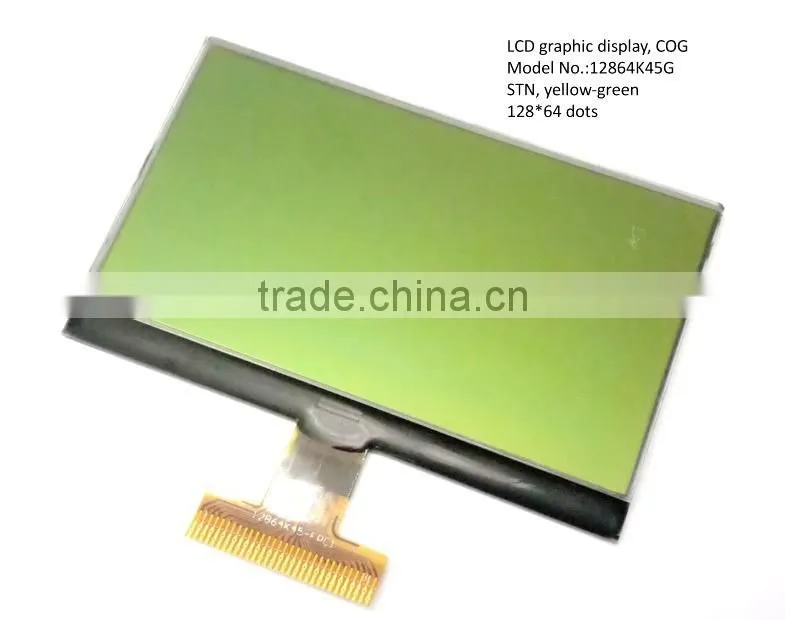

STN Type Graphic lcd module 128x64 with yellow green backlight
1.Features:
Resolution:128X64
STN,Yellow-Green background+black words
Cheap,high quality.high stability
| product name.: | graphic lcd module, COG |
| Model NO.: | LH12864K45G |
| Resolution | 128*64 |
| LCD Outline Size: | 78.0x49.0x2.85 0 mm |
| View Area: | 48.0*26.00 mm |
| Active Area: | 43.48*21.72 mm |
| Display Type: | STN, Yellow-green |
| Polarizer Type: | transflective, Positive |
| View Direction: | 6:0 O'Clock |
| VDD | +3.3V |
| Drive Method: | 1/64 Duty; 1/9 Bias |
| Controller IC: | ST7565R |
| interface: | Serial / parallel port, optional |
| Backlight type: | yellow-green |
| Backlight Supply Voltage: | +3.0V |
| Operating Temp: | –20ºC TO +70ºC |
| Storage Temp: | –30ºC TO +80ºC |
Our products are widely used in Communications, Household Appliances, Instrumentation, Medical Equipment, Power Equipment, Industrial Control, Military Industry and other fields
LCD capacity:
- 1/240 duty is available
- minimum thickness of ITO glass is 0.4mm
- minimum line width & distance is 10µm
- Production capacity of 14 "x16" LCD can reach 2000K
PCB capacity:
- minimum aperture 0.2 mm
- minimum line width, line distance is 0.12 mm
- annual output 100K square meters
- processing technology : tin with lead and lead-free tin, nickel and gold.

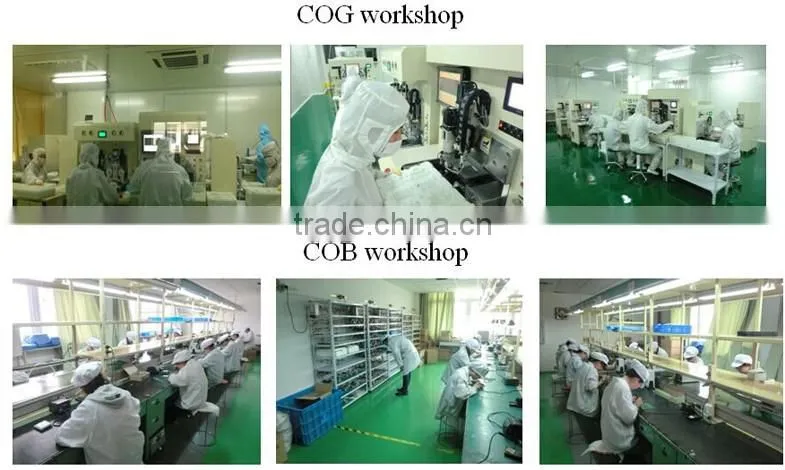

We are founded in Year 2009, being a manufacturer of liquid crystal display (LCD) and liquid crystal display module (LCM). with strong ability on R&D, production and marketing. Our Production plants are located in NanJing China, with floor space 3500/m2, and advanced equipments and a group of experienced, skillful industry elite.
Our thousands of products covers LCD,LCM,COG,COB including 122x32,128x64,128x128,160x160,192x64,240x128,320x240,etc.We can also customize special needs for our customers . Those products have been widely used in medical , military , electric power , industrial control , aerospace , electronics , instrumentation , numerical control machine tools , automotive electronics , communications and other fields
We firmly believe that science and technology is the first productivity . These years we achieved rapid development through constant innovation and research . Each year, we invest 10% to develop new products to realize the company's sustainable development.
We already passed the approval of ISO9001/2008 and ISO14001/2004. our leading production facilities, a sound quality control system and advanced detection technology ensure our products of high quality and stable performance, providing customers with satisfactory service.
Welcome to customize product!
