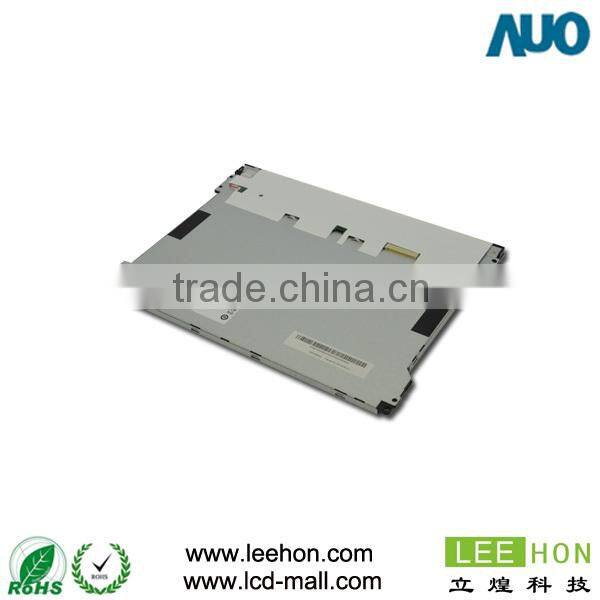

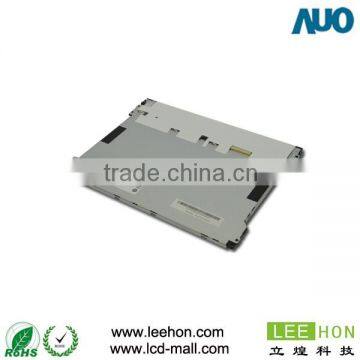

Auo 12.1 inch wide temperature tft lcd panel for industrial grade use G121XTN01.0
| Module number | G121XTN01.0 |
| Type | a-Si TFT LCD |
| Panel Size | 12.1 inch |
| Resolution | 1024*768 |
| Width:Height | 4:3 |
| Pixel Pitch | 0.24×0.24(mm) |
| Active Area | 245.76×184.32(mm) |
| View angle | R/L/U/D 80/80/80/80(Deg) |
| Mode | TN, normally white, transmissive |
| LCD Surface | Anti-glare, Hard coating(3H) |
| Number of Colors | 262K/16.2M(6 bit/6 bit+FRC) |
| Electrical Interface | LVDS(1ch, 6/8 bit) |
| Brightness | 500 cd/m2 |
| Contrast ratio | 700:1 |
| Panel Weight | 495g(Typ.) |
| Outline dimension | 279x209x9.0mm(Typ.) |
| Backlight | WLED |
| Power Consumption | TBD |
| Supply Voltage (V) | 3.3V |
| Response time | 25/10 (ms) |
| Backlight lifetime | 30K hrs(Min.) |
| Operate temperature | -30-85 (°C) |
| Storage temperature | -30-85 (°C) |
| Product features | -- WLED backlight & Backlight replaceable & LED driver integrated; |
| -- Wide view angle; | |
| -- Wide temperature; | |
| -- Long backlight lifetime 50K hrs(Min.); | |
| -- 180 Deg. rotation view support; | |
| -- 6/8 bit optional; | |
| -- SAG surface. | |
| Application | Special for industrial grade use |
We also can provide total set such as lcd panel + touch +ad board +osd board + cables, quality promised.
Why you choose us:
-- We're one of the main agents of AUO/Tianma/CMI/Innolux/Mitsubishi TFT- LCD module in China mainland. On price matters, we surely have the advantage as we have the direct source for original panels;
-- Quality promised. We promise, all the panels are 100% original and brand new, no fake panels exists, and A/A+ grade for all AUO panels(as only auo has grade standard for the five brands). Also Provide 12 months of warranty, you can return any fake panels and charges by us;
-- Strict package. All the products are in original package from original factory, and all the packages have labels and serial number from original factory, you can check then;
-- Quick delivery. As we have huge stock, orders usually takes 24 hours to 7 working days before shipment;
-- Various Express supported. We also have long cooperation relationship with DHL/UPS/EMS/FedEx/TNT Express companies AND we can get the most competitive freights from them;
-- Convenient delivery. We also have international logistic center in Hongkong to support your orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you;
-- Original factory technical support;
-- Superior After-Sale service. Your purchase is not the end, it's the beginning of our service.
