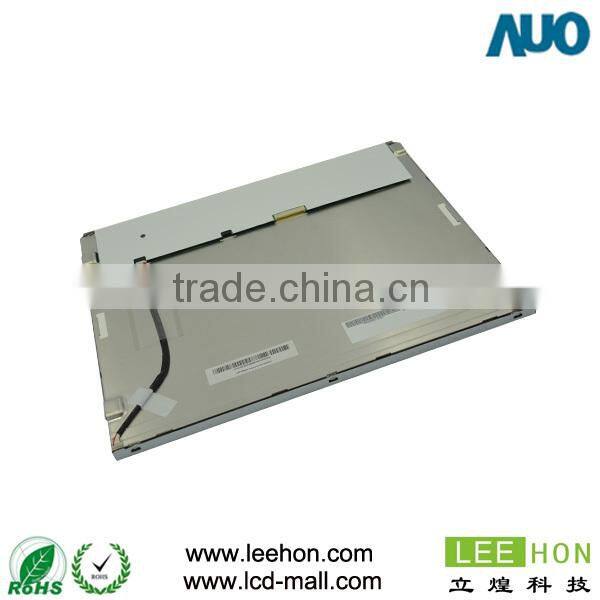

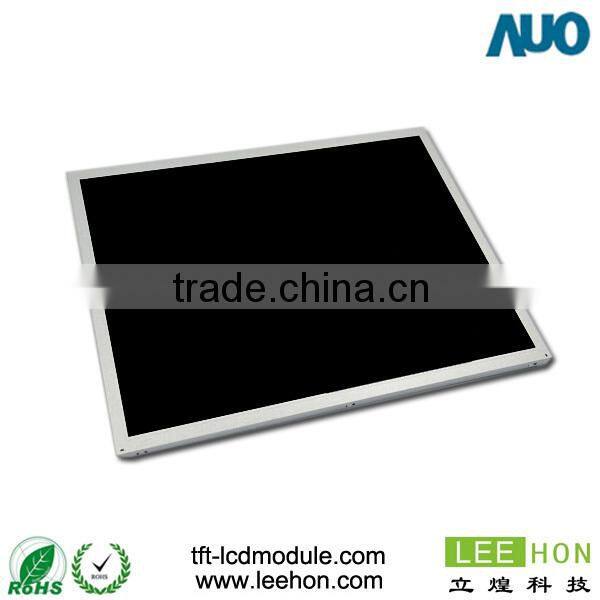

Auo tft lcd panel 1024x768 G150XTN06.0 with 700:1
| Module number | G150XTN06.0 |
| Resolution | 1024x768 |
| Pixel Pitch | 0.297 x 0.297 (mm) |
| Active Area | 304.128(H)x228.096(V) (mm) |
| View angle | R/L/U/D 80/80/70/70 (Deg) |
| Mode | TN |
| LCD Surface | Anti-glare,3H |
| Number of Colors | 262K/16.2M |
| Electrical Interface | Digital, LVDS(1ch, 6/8 bit) |
| Brightness | 400 cd/m2 |
| Contrast ratio | 700:1 |
| Outline dimension | 326.5(H)x253.5(V)x 12.0 (T) (mm) |
| Gross weight | TBD |
| Backlight | WLED |
| LED Life (hrs.) | 50K |
| Supply Voltage (V) | 3.3V |
| Response time | 5.7/2.3 (ms) |
| Operate temperature | -30 ~ 85 °C |
| Storage temperature | N/A |
| Operate humidity | 5-95 (%RH) |
| Storage humidity | 5-95 (%RH) |
According to customers' various requests, we can match all accessories which inclusive of driver board, touch-screen, LED backlight & LVDS cables. TFT LCD, LCD panel, LCD display,LCD screen, LCD monitor, LCD module from 2.2 inch to 24 inch.
Quality promised, 100% original,fast delivery,also enjoy one year guarantee !
How to order:

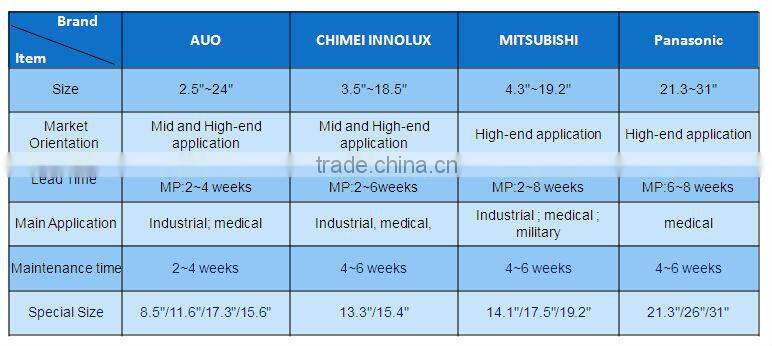

We are the one of the main agents of AUO/Tianma/Mitsubishi/CMI/Innolux, mainly deal with 2.2"-22" industrial lcds, we provide professional service for all of our customers, and for prices matters, we surely have the priority, and all the products came from original factory directly to save more cost for customers.
Please contact us to get newest price:
Attn:Lucy Liu
QQ: 3518678315
Tel: 0086-571-86684288
MP:18037479462
>>Quality ensurance
100% original and brand new, no fake panels exists !
12 months of warranty !
You can enjoy the real panels directly from original factory;
>>Packing ensurance
Original package and Seal for batch orders, all the products are
We have professional support team to provide effective service, we are young and full of passion! in original package from original factory directly, and all the packages have labels and serial number!
>>Delivery ensurance
We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team to provide effective service with 24hours, we are young and full of passion!
More products' info, welcome to visit our website: !
