On Promotion ! Auto BGA reballing station WDS-600 infrared
pcb repair machine
Many BGA rework station models are provided here!
Please contact us,
So we can help you select the right machine to meet your needs and fit your budget !
Business field
- Laptop and mother boards rework and repair.
- Game consoles applications rework and repair.
- Small and medium size electronics assembly factories.
- Military sophisticated applications rework and repair.
- Medical equipment applications rework and repair.
- Automotive applications rework and repair.
- Light systems and LED applications.
- Home appliance and personal Gadgets applications rework and repair.
- Networking and communication applications rework, repair and assembly.
-
Power supply and control PCB applications rework, repair and assembly
Technology parameter of WDS-600 infrared pcb repair machine
1 |
Power supply |
AC 110V/220V±10% 50/60Hz |
2 |
Total power |
Max 5300W infrared pcb repair machine |
3 |
Heater power |
Upper temp.zone 1200W,second temp.zone 1200W,IR temp.zone 2700W |
4 |
Electrical material |
Driving motor+ smart ntroller+color touch screen |
5 |
Temperature controlling |
(high precision K-sensor)(Closed Loop),independent ntroller,the precision can reach ±1℃ |
6 |
Locating way |

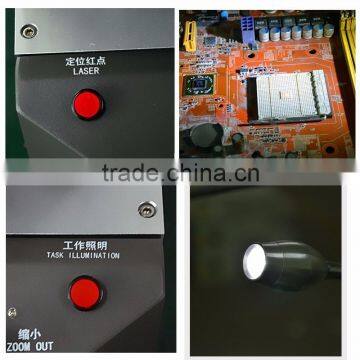

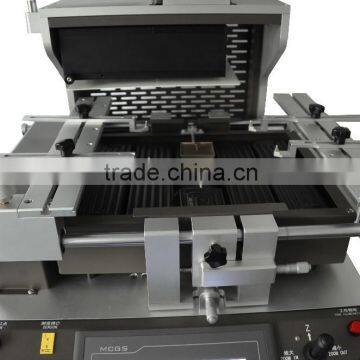

V shape slot,PCB support jigs can adjust,laser light do fast centering and position |
7 |
PCB size |
Max 400×390mm Min 10×10 mm |
8 |
Applicable chips |
Max 80×80mm Min 1×1 mm |
9 |
Overall dimension |
L650×W630×H850mm |
10 |
Temperature Interface |
1 pcs |
11 |
Weight of machine |
60KG |
12 |
Color |
Golden infrared pcb repair machine |
Operation Same to WDS-620:
»»» For laptop: https://youtu.be/_2gDbC9vfps
Full Specification of WDS-600 infrared pcb repair machine

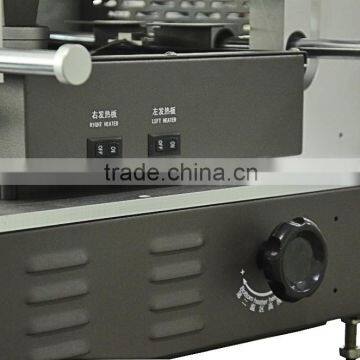

Independent 3 heating zones temperature control system
1.The upper and lower hot air heating,which can heat up at the same time from the top of he component to the bottom of the PCB;bottom IR heating,temperature precision control within ±1℃.8 segment temperature control independently.infrared pcb repair machine
2.Hot air district heating for BGA and PCB at the same time,and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.
3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;
4. temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time. automatic bga reballing station machine bga rework station iphone bga chips soldering machine infrared pcb repair machine

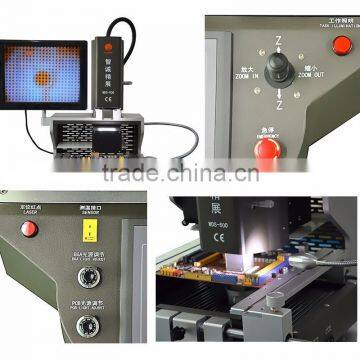

Precision optical alignment system
Using high definition and adjustable CCD color optical alignment system,beam split,amplification,
lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor.

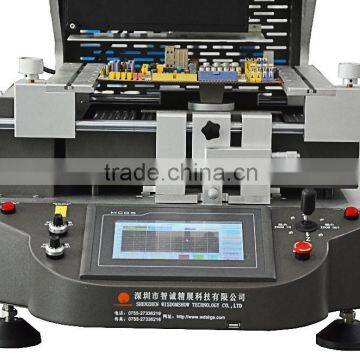

Multi-functional and humanized operation system
1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.hot air bga rework station
2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
Superior safety protection function
With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.infrared pcb repair machine
Releated BGA Accessories:
1,Wooden Package for BGA rework station;
2,Delivery in 2 workdays after payment confirm;
3,Shipping by TNT ,DHL,FEDEX, or by air or by sea;
4,Loading port: Shenzhen or Hongkong.
1.Source the latest, hottest and best quality goods possible.
2.Offer most competitive price.
3.Speedy and high quality customer service and after-sale service possible.
4.Deliver goods to customer all over the world with speed and precision.
| Manufacturer:Shenzhen Wisdomshow Technology Co., Ltd |
| Brand:WDS/wisdomshow |
| Address: No.6 Haosi Western Industrial Park ,Shajing Town,Bao'an District,Shenzhen,China |
| Main Product:BGA rework station,many models are available |
| Website: |
Why WDS?
1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training;
2. Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company;
3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;
4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;
5. 100% NEW from WDS factory;
6. Over 20 R&D engineers, with 10 year experience;
7. Over 100000 Global User;
8. All models approved CE ISO9001;
9. 100% QC inspect before shipment;
10. High quality & competitive price.
1.Factory introduce 2. Exhibition
3.Certificates
-T/T :30% deposit, Balance before shipment
-Western Union
-Paypal
-Moneygram
-Alibaba
*BGA application
-Laptop notebook motherboard bga rework and repair;
-Game consoles applications such as xbox Ps3 Wii bga rework and repair;
-Large circuit board maintenance, and mobile phone motherboard such small small-sized chip.
*Training & Warranty
Life-time free training of operation and maintenance.
Warranty:lifetime free service ,one year warranty. the 1st year is free,ONLY spare parts charged after the 1st year. Reply within 24hours,7 days/week.
Training and warranty can be from the overseas local office or Shenzhen Wisdomshow office directly.
Any other questions, Pls send INQUIRY , or CHAT with us, we will try our best to help you.
Now you can order freely!!!
We undestand buyers might be worried about ordering products from China.
Now our company have joined Alibaba Trade Assurance . By placing order through Alibaba, if the suppiler doesn't meet your contract requirements for on-time shipment or Pre-shipment product quality, may refund the payment as stated in your contract.
Now our Trade assurance Limit is up to 24000USD. You can check this information from wisdomshow.en..
Pls Contact me as below guide, we are glad to give you the best price!
Contact: Vivian
Tel: 0086 0755 27336219
Skype: sales002wisdomshow
What's app & Wechat: +86 13714129564 (Mob)
