Infrared red bga rework station WDS-430 with CE& ISO certification
How about Widsomshow :
1. R&D Capacity: 10 years of professional manufacturering experience.
2. Quality Control Management : All productiong lines have adequate quality control and QA/QC inspectors work independently from the production line, All products passed CE
& ISO certification.
3 After- Service : Prefect After Sales service, foreign trading employees 24hours/7days serve.
Any question Pls contact as follow :
Nina Liu
Skype: wdsbga008
Whatsapp: +86 18064170895
Trademanager : cn1516367306rqst
Parameter of WDS-430 ball joint repair machine :
| Place of Origin | Guang dong , China |
| Brand Name | Wisdomshow |
Moed Number |
WDS-430 bga rework station |
| Superior function | Soldering and desoldering bga ic chip |
Detail Specification :
| Power | AC 220V±10% 50/60Hz 5.4k VA |
Total Power |
4800W |
|
Heater power
|
upper temp.zone 800w, second temp.zone 1200w, IR teom.zone 2700w |
| Temperature Controlling | K-type thermocouple close-loop control,independent ntroller, the precision can reach ±3℃ |
PCB size |
Max:410*370mm Min:20*20mm |
Electrical Material |
High sensitive temperature module, Delta PLC, Touch Screen made in Taiwan |
| Thermocouple Ports | 1 units |
Feature of WDS-430 ball joint repair machine :

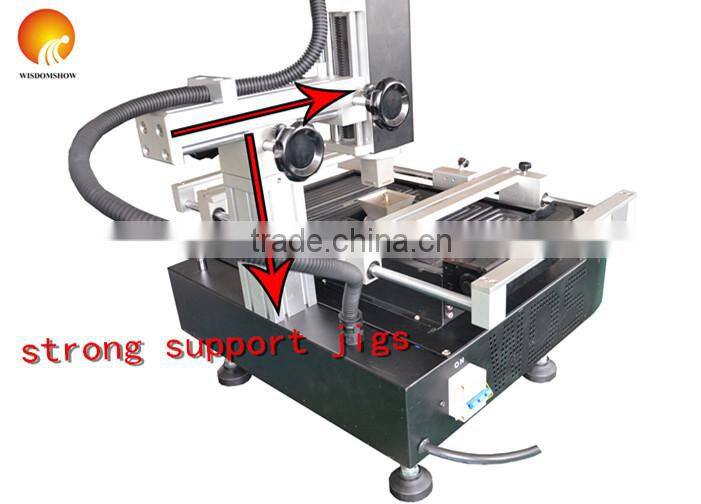

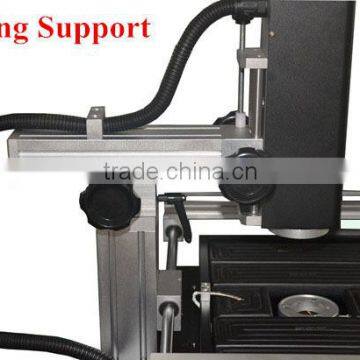

1. Adopted with Linear slider,
so all the three axles(X,Y and Z) can do fine tuning and quick orientation with perfect positioning accuracy and speedily maneuverability .
2. Equipped with touch panel interface and PLC controlling

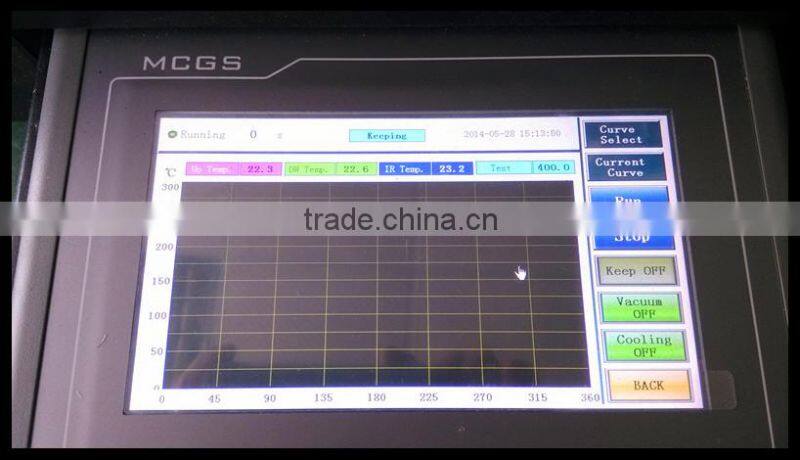

to ensure it work stably and reliable .And it can storage multiple temperature profiling data of users ,With password protection and modification function while power on. The temperature profiles will be displayed on the touch screen. infrared red bga rework station

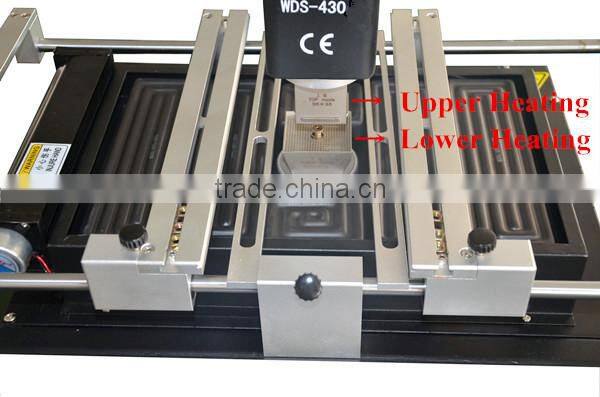

3. Three temperature zones to heat up independently,
hot air heat up between up and down zones,IR heat in the bottom, temperature precise control is in ±3℃,The upper temperature zone can be moved freely according to needs,the second zone can be adjusted up and down , The top and bottom heaters can be set several segments control at the same time . IR heating zone can be adjusted output power in the light of operation requirements .
4. The hot air nozzle can be rotated in 360 degree,
the IR heater in the bottom can heat up the PCB board uniformly.
5. High accuracy K-type thermocouple closedloop controlling .

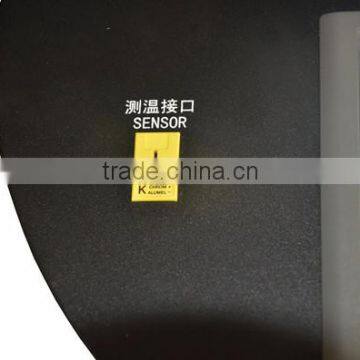

It can test temperature accurately through external temperature measurement interface,PCB board positioned by closed V-shape slot, The flexible and convenient
universal jigs can prevent any damage or PCB deformation as well as it is suitable
for all size of BGA package.

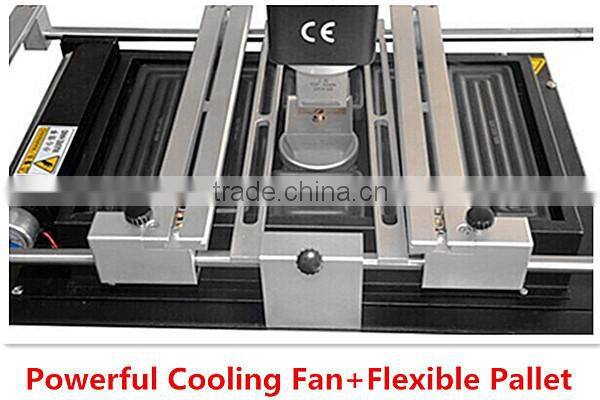

6. Large power fan to col down the PCB quickly ,
The built-in vacuum pump and external vacuum nozzle is able to
take BGA chips out easily .
7. Having alarm prompt function after welding is done,
specially added early warning function for convenient operation.
8. It has passed CE certificate.
It is equipped with emergency stop switch and protection equipment to power off automatically when abnormal accident happened,Under this situation that temperature is out of control, circuit can automatically cut off the power with double over temperature protection function .

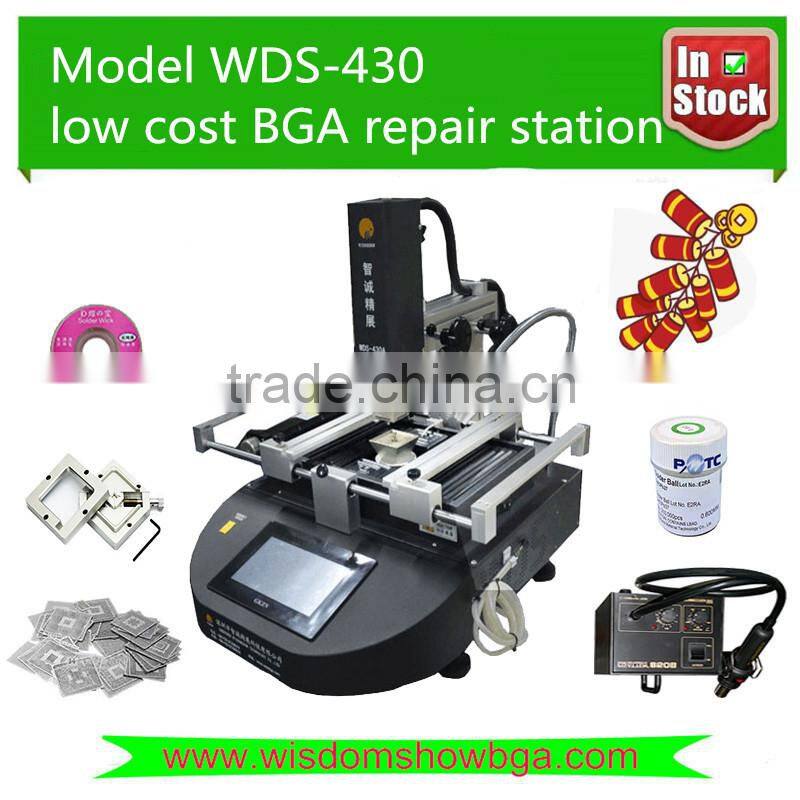

We also have bga reballing accessories :
Likes Solder ball(lead/lead-free) , BGA reballing kit , BGA flux, Heat tape, Solder Paste,
BGA reballing Stencils

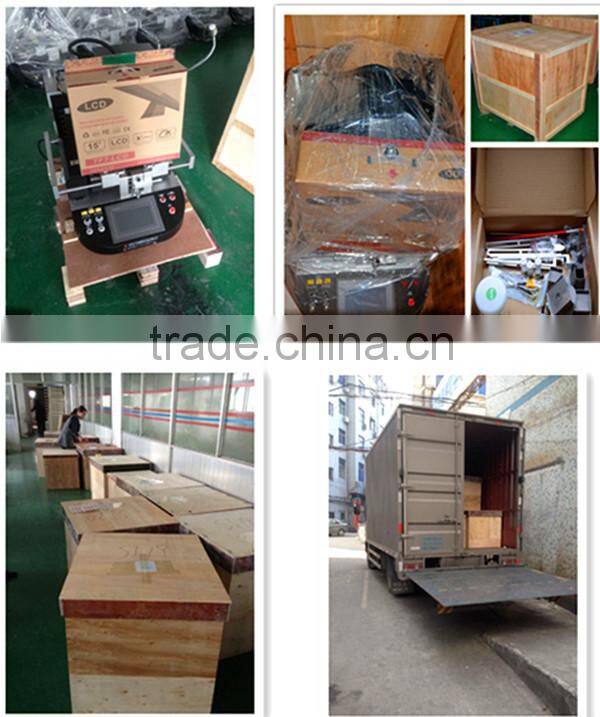

Our Packing :
Fumigation certified wook packing,
standard wookden box package ,
or other ways according to your requiryment .
Our Payment and Shipping :
Payment : Paypal, Western Union, Escrow, T/T 30%deposit ,balance before shipment.
Escrow, Aliexpress Pay, Others
Shipping : TNT, UPS ,DHL,FEDEX (IE), Aramex or by air or by sea
Our Service :
1.Your inquiry will be replied in 24 hours ;
2.Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;
3.Technology Support :Provide Demo operation video for training ;If you have time,welcome to our company,will arrange engineers to show you the operation;
4.Good and professional after-sales service;
5.Give great discount to AGENCY to ensure agents profit.
Welcome to visit our factory !
Some of customers' voice :
1.Hi mate, your best price and high purity product is so competitive in my country , this let me make much profit , my customers are really like it . cooperate with you is so wonderful ! thank you ! ---------Richard---Turkey
2.i have received my products , your packing is do discreet and perfect , it really amazed me .i will order more from you as soon as possible. thanks a lot. -----------Robet--Australia
3.i have cooperated with you for many times , your product quality is so great , that is why i still buy the products from you . thank you . ------------- Corentin ---Brazil
If any question please send INQUIRY or CHAT with us ,
we will pleasure to service you !
♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦
Shenzhen Wisdomshow Technology Co.,Ltd
