Help Center584 585 586 : MOBILE DVR SYSTEM
Related Products
Hard Disk Mobile DVR: 4 Channel audio and video input with GPS and 3G (EVDO / WCDMA).
Description:
1) 4 channel video and audio recording.
2) Video format: 1D1(25fps) + 3CIF(25fps) .
3) Alarm input: 4 alarm input.
4) Compression: H.264.
5) Data Storage: MAX support 2TB HDD and 64GB SD Card.
6) Motion detection / timer switch / alarm recording.
7) Dual shockproof (Patented design).
8) Built-in 3G module (EVDO/WCDMA).
9)Built-in GPS module, can show GOOGLE map when you playback the video.
10) Operation Temp.:-30℃~+80℃
11) Power: DC8—36V.
12) Language: Chinese/English/Russian
13) Certificate: CE FCC ROHS.
Package contents :
1) Sensors can be set up for: Door Open/Close; Brake; Flashers; Passenger seat; over speed; backing; turning right or left etc.
2) Alarm: Motion detection & alarm; Sensor detection & alarm; Panic button set & alarm.
3) Body Weight: 1.1Kg.
4) Product Size: 148mm x 128mm x 56mm.
5) Accessories: I/O cables; Sensor cables; GPS antenna; Remote controller, 7" TFT LCD Monitor, Monitor Cable, Disk reader; shock mount; HDD case; IR extend cable, Power cable; Fuse; Screw for installation; two Keys; CD with software.
6) Color : Grey.
7) Certification:CE FCC ROHS.
8) Application: BUS/ TAXI/ TRUCK/ TRAIN.
DVR Hardware:
1. 8 channel (D1/HD1/CIF)
2. H.264 video compression, Linux operation systems, dual streaming
3. Advanced vibration resistance solution
4. 6 pins contacts interface design connecting HDD with mainboard, ensures stable working in complex conditions
5. Digital watermark
6. Hard disk auto-heating
7. Max 2.5 inch 1TB hard disk storage
8. Motion detection
9. 3G(WCDMA/EVDO)/WIFI/GPS modules optional
10. 8 seconds power-off delay for data protection, prevent data loss and file disruption by instant power-off

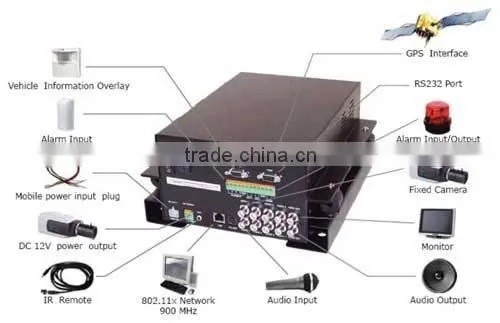

11. One SD card slot, One e-SATA HDD interface, Two USB2.0 interfaces, and other interfaces e.g. RS485, RS232, speed input interface
12. Support peripheral device extension, e.g. control panel, bus stops announcement
13. Black box of vehicles keeps records for speed, position, acceleration, temperature, brakes, backing up, turns, alarms and other important information
14. DC8V~36V wide voltage power supply, industrial standard embedded design, aluminum metal shell, low power consumption
15. Operating temperature -25℃ to +85℃.
Software Feature:
1. Manage up to 5,000 Vehicles;
2. Real-time video and audio monitoring;
3. Real-time vehicle status display with complete information include speed, position, temperature, brake, reverse, turn, alarm, etc;
4. Remote power-off and gas-off control;
5. Video search and download
6. Image capture;
7. Remote communication with driver by intercom, broadcast, and text message;
8. PTZ Control;
9. History Tracking;
10. Alarm modes include: overspeed alarm, exterior emergency alarm, hard disk error alarm, video lost alarm, etc;
11. Electronic security fence;
12. Google map and location information;
13. Support simultaneous multi-user access;
14. Advanced and easy-use playback and video check functions sorted by time, alarm and location;
15. G-sensor information display and analysis;
16. GPS positioning information display and analysis;
17. Speed information display and analysis;
18. Tracking and recording vehicle movement on either GPS System or Google Map;
