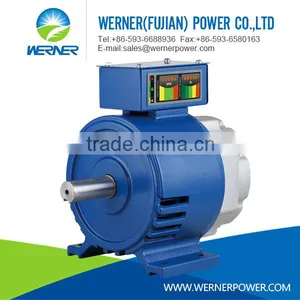

3KW Micro Hydro Water Turbine Generator
US$ 340 - 460
MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
WERNER
Model Number:
CT-3
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
500W High Quality Wind Generators for SaleUS$ 560 - 649MOQ: 100 Sets -
500W Wind Generators for Home and Commercial UseUS$ 560 - 649MOQ: 100 Sets
-
3kw Brushless 2 Bearings AlternatorUS$ 144 - 144MOQ: 100 Sets
-
Pure Sine Wave Marine Generator/vary SpeedUS$ 560 - 649MOQ: 100 Sets
-
Compact Magnetic Inverter Generator for Water Turbine/marineUS$ 560 - 649MOQ: 100 Sets
Place of Origin
Fujian, China
Brand Name
WERNER
Model Number
CT-3
Output Type
AC Single Phase
Speed
variable
Frequency
50HZ/60HZ
Rated Power
3KW
Rated Voltage
230V
Rated Current
13A
Specifications
3KW micro hydro water turbine generatorLow rpm,variable speed
high efficiency 90%,save fuel consumption.
Conpact and light
1. Rare earth permanent magnetic for rotor. 100%COPPER wire winding for stator.
2. Two bearings, single phase, shaft driven, brushless and easy maintaince
3. Reliable quality, 100% warranty, It can drive 1.5HP air condition directly.
4. It can be operated as for long time power supply.
5. Speed can range from 1500rpm to 3000rpm and output different power .But stable voltage and frequency. You can choose any speed according to your need.
6. .Output pure sine wave, waveform distortion rate≤1.5%
| Model | CT-1.8 | CT-3 | CT-5 | CT-7.5 | CT-10 |
| Rated voltage | 230V | ||||
| Rated current | 7.8(A) | 13.0(A) | 21.7(A) | 32.6(A) | 43.4(A) |
| Rated power | 1.8(KW) | 3(KW) | 5(KW) | 7.5(KW) | 10(KW) |
| speed | 500-3000rpm | ||||
| Frequency | 50/60(Hz),200/400(Hz) | ||||
| Brush/Brushless | Brushless | ||||
| Output wave | Pure sine wave,waveform distortion rate≤1.5% | ||||
| Efficiency | ≥90% | ||||
| Voltage rate | ±2% | ||||
| Protect Class | IP21 | ||||
| The electronic control | digital inverter | ||||
| Insulation Class | H | ||||
| GW | 20.6(Kg) | 21.8(Kg) | 23.0(Kg) | 47(Kg) | 47(Kg) |
| NW | 20.1(Kg) | 21.3(Kg) | 22.5(Kg) | 42(Kg) | 42(Kg) |
| Foot | 182×90(MM) | 182×90(MM) | 182×90(MM) | 232×108(MM) | 232×108(MM) |
| Height of center | 126(MM) | 126(MM) | 126(MM) | 146(MM) | 146(MM) |
| Screw | M12 | M12 | M12 | M12 | M12 |
| Axis diameter | 32(MM) | 32(MM) | 32(MM) | 38(MM) | 38(MM) |
| Dimension | 320*230*320(MM) | 370*290*372 (MM) |
|||
| Marks | PMA+INVERTER=2 in 1 complete set,speed and voltage protect for selection | ||||
100% COPPER WIRE
Indication Panel
