Mango Mesh-belt Dryer for Foodstuff Industry

Mango Mesh-belt Dryer for Foodstuff Industry photo-1
Mango Mesh-belt Dryer for Foodstuff Industry photo-2

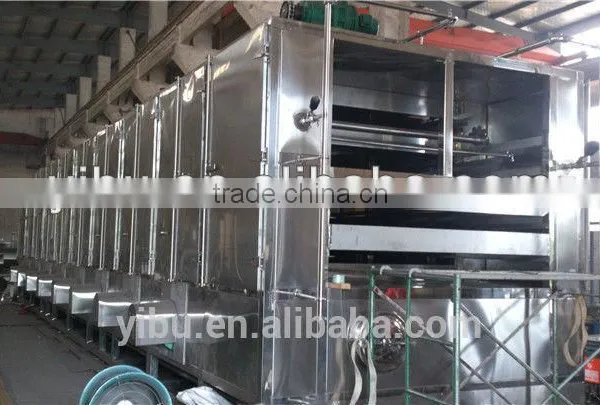

Mango Mesh-belt Dryer for Foodstuff Industry photo-3

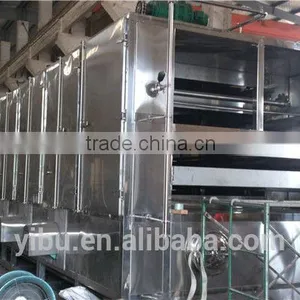

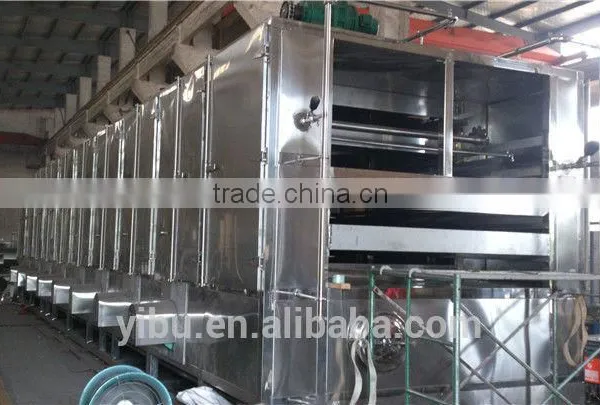

Mango Mesh-belt Dryer for Foodstuff Industry photo-4

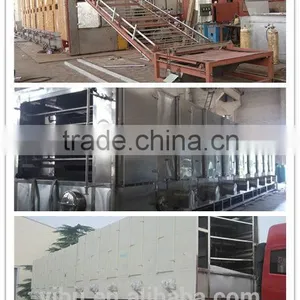

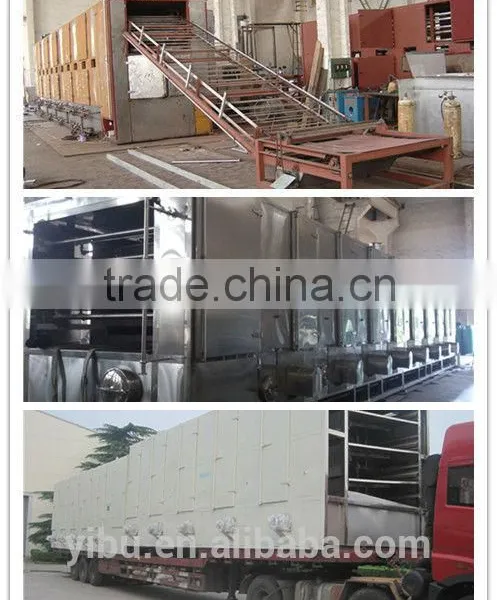

Mango Mesh-belt Dryer for Foodstuff Industry photo-5
US$ 28,000 - 1,000,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
YIBU
Model Number:
DW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name YIBU
Model Number DW
Application Other, block
Type Drying Machine
After-sales Service Provided Engineers available to service machinery overseas

DW Mesh-Belt Drye For  hawthorn  for foodstuff  industry for drying apple



Principle



For DW type air jet mesh-belt dryer, the hot air flows. Through narrow seams or holes, downward or upward to the materials on the transmission belt. Because the spray air speed is up to more than 15m/s, the heat transmitting film is very thin, the heat transmitting co-efficiency is big and the drying speed is fast. When the machine is used for the air tight grains, the above air jet flow will return to the top and the bottom flow will return to the bottom, take part in circulation. For some materials, the air flows will pass through the inside of the materials, the heat source can be steam, electricity, thermal furnaces and combustion oil flue and etc.

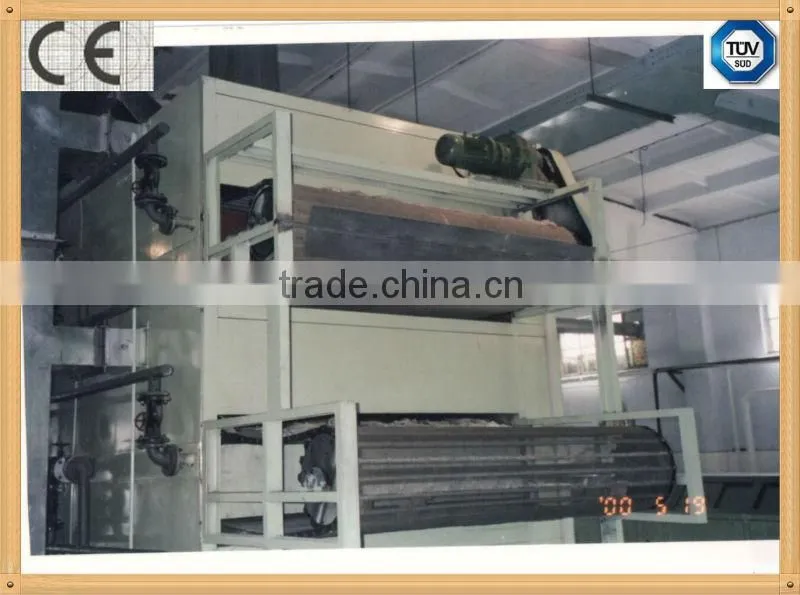

Mango mesh-belt dryer for foodstuff industry



Applications



DW type spray air mesh-belt drying machine is mainly used for drying the fiber plate, plaster plate, carton board, pulp film, coated cloth and etc.. The machine is also suitable for drying the sheet state material and some special materials.

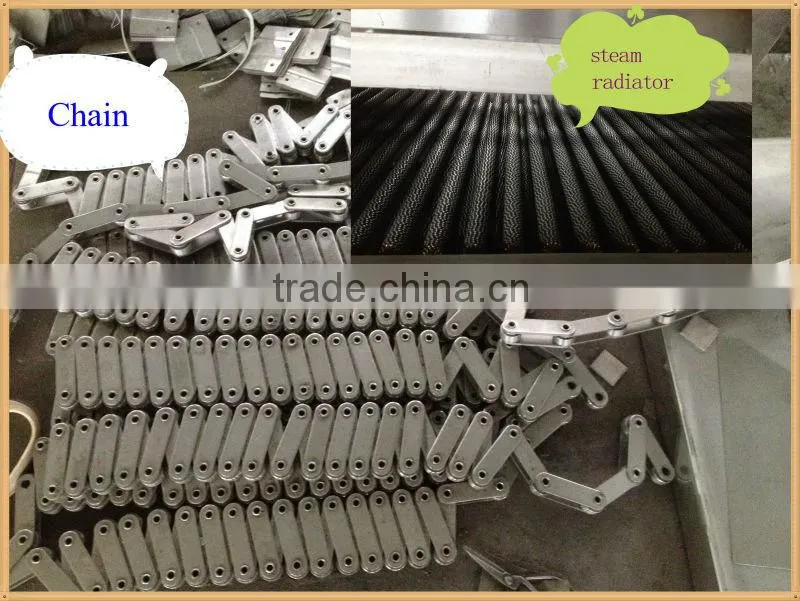

Mango mesh-belt dryer for foodstuff industry



Technical Parameters



spec unit DW-1.2-8 DW-1.2-10 DW-1.6-8 DW-1.6-10 DW-2-8 DW-2-10
belt width m 1.2 1.2 1.6 1.6 2 2
drying section length m 8 10 8 10 8 10
thickness of the material mm 10-80
operation temperature °C 60-130
steam Pressure Mpa 0.2-0.8
steam consumption capacity Kgsteam/kgH2O 2.2-2.5
drying strength KgH2O/h 6-20
total power of fan Kw 5.5 7.5 7.5 11 11 15
total power of machine KW 6.25 8.25 8.25 11.75 11.75 15.75
