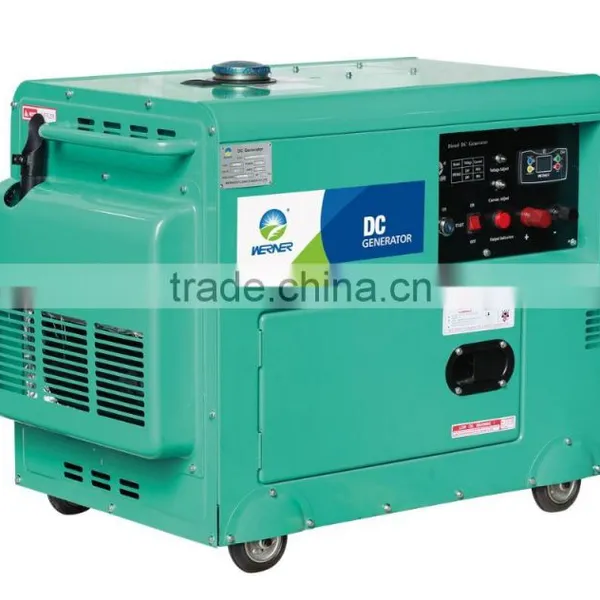

2.5kw 48V Power Silent Electric Diesel DC Generator
US$ 1,200 - 1,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
WERNER
Model Number:
DW30A
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24V Auto Start and Auto Stop Diesel DC GeneratorUS$ 1,200 - 2,000MOQ: 1 Set -
48V Soundproof Diesel DC Charging GeneratorUS$ 1,200 - 2,000MOQ: 1 Set
-
24v Dc Car Charging Generator SilentUS$ 1,200 - 2,000MOQ: 1 Set
-
24v Dc Generator Diesel EngineUS$ 1,200 - 2,000MOQ: 1 Set
-
Portable Power Gasoline Generator 5KW DC GeneratorUS$ 637 - 680MOQ: 50 Sets
Place of Origin
Fujian, China
Brand Name
WERNER
Model Number
DW30A
Output Type
DC
Frequency
DC
Rated Power
2.5KW
Rated Voltage
48V
Rated Current
50A
This DC power adopt high efficiency permanent magnetic brushless alternator, together with the intelligent electronic module, good dynamic performance and output fast transient response, high stability, provide quality DC electric energy for charging battery,LED illumination and some DC electric applications.
It is a new excellent DC power with intelligent performance, flexible and convenient small volume, high efficiency and energy saving to instead of traditional DC generator which needs to transform AC to DC.
Target:
Supply more intelligent DC power to market. The output voltage and current can be ajusted so it is very convenient for customer to select suitable electric data for the application. The DC generator can auto start and stop by itself by detecting the battery voltage which will greatly protect battery.
| GENSET | |||
| Model Name | DW30AS | DW60AS | DW90AS |
| Rated DC voltage | 48VDC/ output voltage 45V-57V, Continuously adjustable | ||
| Rated DC current | 50A | 100A | 200A |
| output waveform | DC | ||
| Voltage Regulation | ±0.5% | ||
| Feature | Voltage meter,Current meter,Oil pressure meter,temperature meter | ||
| Automatic outage protection when there is AC component output | |||
| High temperature alarm outage protection | |||
| Low fuel level warning | |||
| Automatic current adjustment when rectifier module radiator temperature anomaly | |||
| Advantages | Output current and voltage can be ajusted | ||
| Automatically detect the battery voltage | |||
| It can work for long time operation and also can be as standby power(if the voltage lower than preset it will start automatically,if the battery voltage reach preset fulll charge voltage,it will stop automatically) | |||
| Floating charge | |||
| ENGINE | |||
| Engine | 178F | 188F | HDA20F |
| Engine Type | 4-stroke, single cylinder,air cooled,,DI diesel engine | 2 cylinders,air cooled | |
| Displacement | 296ml | 466ml | 954ml |
| Rated rev | Variable speed | ||
| Start system | electric system | ||
| Engine rated output | 3.5KW | 7KW | 13.5KW |
| Fuel comsumption | ≤283g/kw.h | ≤278g/kw.h | ≤255g/kw.h |
| Lube Oil capacity | 1.1L | 1.65L | 3.2L |
| Alternator | |||
| Alternator | rare earth permanent magnet integrated with DC module, compact,light | ||
| Model Name | F30AD | F60AD | F90AD |
| Rated output(KW) | 3 | 5 | 10 |
| Rated Current(A) | 50A | 100A | 200A |
| Transient maximum current | 90A | 180A | 360A |
| efficiency | >90% | ||
| waveform | DC wave | ||
| Dimension (mm) | 500*456*480(mm) | 585x568×568 (mm) | 920*690*790 (mm) |
| Net weight | 1105KG | 123KG | 158KG |

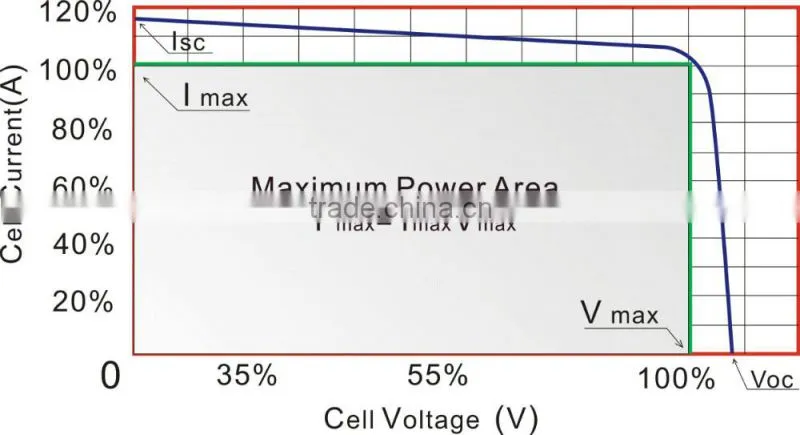

Working curve:
