Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Avr 460 for Brushless Generator
US$ 10 - 200
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer, Trading Company
Year Established:
2012
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Avr MX341 Best Factory PriceUS$ 10 - 200MOQ: 5 Pieces -
Brushless Alternator Automatic Voltage Regulator MX321US$ 10 - 200MOQ: 5 Pieces
-
Generator Spare Part Avr R230US$ 10 - 200MOQ: 5 Pieces
-
Automatic Voltage Regulator AVR R230 From FactoryUS$ 10 - 200MOQ: 5 Pieces
-
Avr AS440 for Brushless GeneratorUS$ 10 - 200MOQ: 5 Pieces
Specifications
AVR AS4401)High quality
2)competitive price
3)in stock

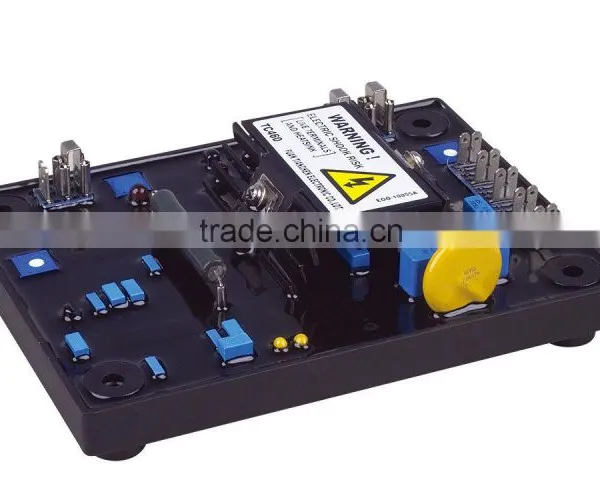

SX460 is a half-wave phase- controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator.
In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%
Stability adjustment
Under frequency roll off adjustment
| Input | Voltage | Jumper selectable 95-132V ac or 190-264V ac | |
| Frequency | 50-60 Hz nominal | ||
| Phase | 1 | ||
| Output | Voltage | Max 90V dc at 207V ac input | |
| Current | Continuous 4A dc, intermittent 6A for 10 secs | ||
| Resistance | 15 ohms minimum | ||
| Regulation | +/- 1.0% | ||
| Thermal Drift | 0.05% per deg. C change in AVR ambient | ||
| Typical system response | AVR response | 20ms | |
| Filed current to 90% | 80 ms | ||
| Machine Volts to 97% | 300ms | ||
| External voltage adjustment | +/-10% with 1 k ohm 1 watt trimmer | ||
| Under frequency protection | Set point | 95% Hz | |
| Slope | 170% down to 30 Hz | ||
| Unit power dissipation | 12 watts maximum | 10 watts maximum | |
| Build up voltage | 4 Volts @ AVR terminals | ||
| Environmental | Vibration | 20-100 Hz,50mm/se | |
| 100Hz – 2kHz, 3.3g | |||
| Operating temperature | -40 to +70 Deg. C | ||
| Relative Humidity 0-70 Deg. C | 95% | ||
| Storage temperature | -55 to +80 Deg. C | ||
