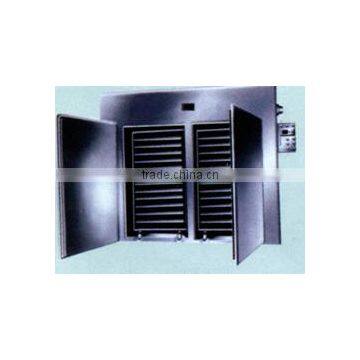

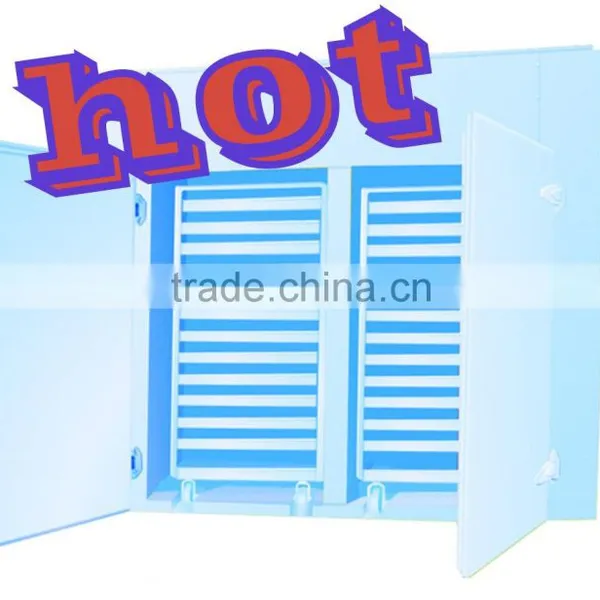

CT-C Series Hot Air Circulating Drying Oven for Dried Fruit Piece

CT-C Series Hot Air Circulating Drying Oven for Dried Fruit Piece thumbnail-1
CT-C Series Hot Air Circulating Drying Oven for Dried Fruit Piece thumbnail-2
CT-C Series Hot Air Circulating Drying Oven for Dried Fruit Piece thumbnail-3
CT-C Series Hot Air Circulating Drying Oven for Dried Fruit Piece thumbnail-4
CT-C Series Hot Air Circulating Drying Oven for Dried Fruit Piece photo-1
CT-C Series Hot Air Circulating Drying Oven for Dried Fruit Piece photo-2
CT-C Series Hot Air Circulating Drying Oven for Dried Fruit Piece photo-3
CT-C Series Hot Air Circulating Drying Oven for Dried Fruit Piece photo-4
US$ 230,000 - 890,000 MOQ: 50 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, cabinet dryer
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Changzhou Yibu Drying Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, cabinet dryer
Place of Origin Jiangsu, China
Brand Name YI BU
Model Number CT-C
Voltage according to customer needs
Power(W) 15kw
Dimension(L*W*H) 1380*1200*2000
Weight 1500kg
Certification CE:UL:FAD:ISO14001:9001
Warranty one years
After-sales Service Provided Engineers available to service machinery overseas


CT-C series hot air circulation oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulation oven makes that the hot air circulation drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit. In1990,the medical management bureau of the State issued the industry standard and the uniform type is RXH.

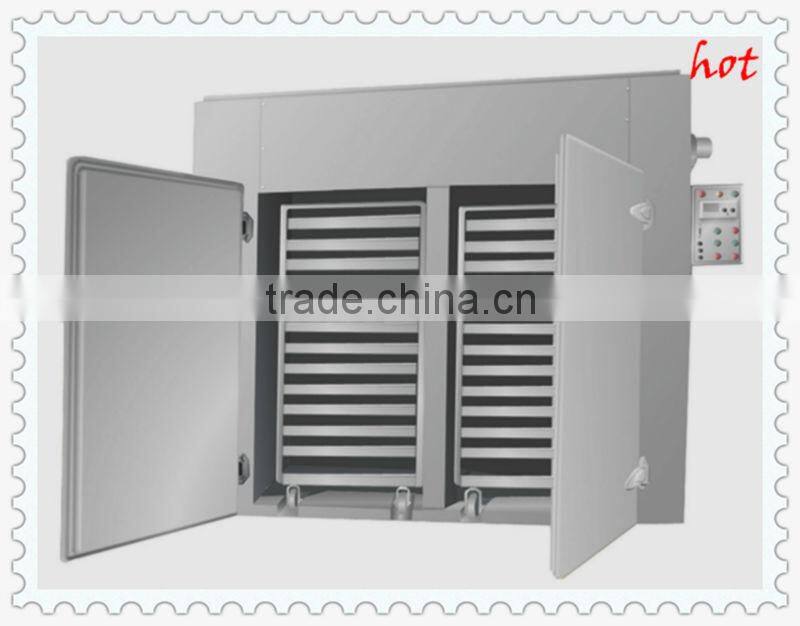

CT-C Series Hot Air Circulating Drying Oven for dried fruit piece




This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.



1.Options of heat source: steam, electricity, or far infrared, or both steam electricity.

2.Drying temperature: steam heating 50-130 °C , Max.140 °C .

3.Electricity and far infrared:50-300 °C .Automatic control system and computer control system on request.

4.Commonly used steam pressure 0.2-0.8Mpa(2-8 bar).

5.For CT-C-I, electric heated, rated power consumption:15Kw, real consumption : 5-8Kw.

6.The special requirements should be indicated at the time of order.

7.Please consult as for any special requirements.

8.For operation temperature of over 140 °C or less than 60 °C , please indicate when order.

9.The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.

10.Baking plate dimensions:460*640*45mm


Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. With a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.



spec. of industry standard specification batch drying capacity (Kg) Power(Kw) Steam to be consumed(Kg/h) Heat radiation arer(m2) velocity(m3/h) Temperatue between the top and the bottom (°C) Baking trays Overall dimension (L×W×H)mm Baking cart to be used (set)
RXH-5-C CT-C-0 25 5 5 5 3400 ±2 8 1400×1200×1600 0
RXH-14-C CT-C 50 0.45 10 10 3400 ±2 24 1400×1200×2000 1
RXH-14-C CT-C 100 0.45 18 20 3450 ±2 48 2300×1200×2000 2
RXH-27-C CT-C 200 0.9 36 40 6900 ±2 96 2300×2200×2000 4
RXH-41-C CT-C 300 1.35 54 80 10350 ±2 144 2300×3220×2000 6
RXH-54-C CT-C 400 1.8 72 100 13800 ±2 192 4450×2200×2000 8
RXH-25-A high effciency and high temperature far infrared sterilizing oven 1200×1000×1600 1







Jilin Wutai Group.
Changchun People Pharmaceutical Co.,Ltd.
Hayao Group Sanjing Pharmaceutical Co.,Ltd.
Beijing Juneng Pharmaceutical Co.,Ltd.
Beijing Shunxin Xiangyun Pharmaceutical Co.,Ltd.
Qingdao Haier Pharmaceutical Co.,Ltd.
Anhui Renji Pharmaceutical Co.,Ltd.
Hainan Xiangsheng Pharmaceutical Co.,Ltd.
Jiangxi Third Pharmaceutical Factory.
Yunnan Kunming Group Pharmaceutical Stock Co.,Ltd.
Hunan Huichuntang Pharmaceutical Co.,Ltd.
Yichang Humanwell Pharmaceutical Co.,Ltd.
Shanghai Baolong Pharmaceutical Co.,Ltd.
Changzhou Jianmin Pharmaceutical Factory
