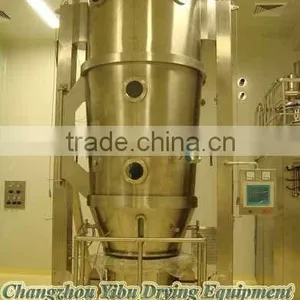

Chili powder drying machine

wooden case

 Chili powder drying machine

Fob Price:Negotiable

Supply Ability:1000 set/year

Mini Quantity:1set

Port:Shanghai,China

Payment Terms:T/T,L/C,DP and So on

Size:Based the capacity of the machine itself

Material:SUS304 ,Carbon steel ,SUS316L and other material .

Features:

1.Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the work chamber, the state of fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly.

2.No matter whether the product was produced in the fluidized bed or a high-shear mixer, whether in batch or continuously: With fluidized bed drying, it must be ensured that drying always takes place in a thermodynamic equilibrium. The inlet air temperature must be selected such that only so much moisture evaporates from the surface of the granulate as is transported through the capillaries from the interior of the granulate to the surface. If the inlet air temperature is too high, a surface crust will most likely form which will hamper or even prevent the moisture being transported from deeper layers to the outside. This will delay the entire drying process rather than accelerate it.

Preface

Fluidized bed drying can be used in the entire powder processing industry. In the pharmaceutical industry, this innovative method has replaced the time-consuming tray drying long ago: The drying process with fluidized bed drying reduces the drying time in the drying oven by approximately twenty times. In addition, fluidized bed drying provides controlled and uniform drying conditions compared to the uneven drying in trays.

For the process variants spray granulation, spray agglomeration or spray coating, it should be noted that not only the moisture needs to evaporate until it has reached a defined residual value, but also that drying takes place during the entire spray process. Too high inlet air temperatures can lead to insufficient liquid bridges, instable granulate structures or inhomogeneous looking films.

Fluid bed to achieve fast heat transmission of medium.

Seal negative pressure operation, there is no dust.

Because of using anti-static material as filter, it is safe in operation;

The equipment has no dead corner so it is easy to clean fully and there is no cross pollution;

It is in conformity with the requirements of GMP.

Application

Screw extruded granules, sway produced YK series granules and granules produced by GHL series granulator.

Suitable for drying humidity block or powder raw material in pharmaceutical, foodstuff, feed, chemical industries and so on fields.

Large granules, small blocks and adhesive materials.

The materials that volumes might vary during drying process.

Production process

Design → Raw material inspection →laser cutting machine→ Welding→ Inspection → Polishing → Inspection→Assembling → inspection → Package → Delivery

From design to assembly and then ship the unit, every step we require our workers to control the quality strictly, so that each unit can be delivered perfectly.

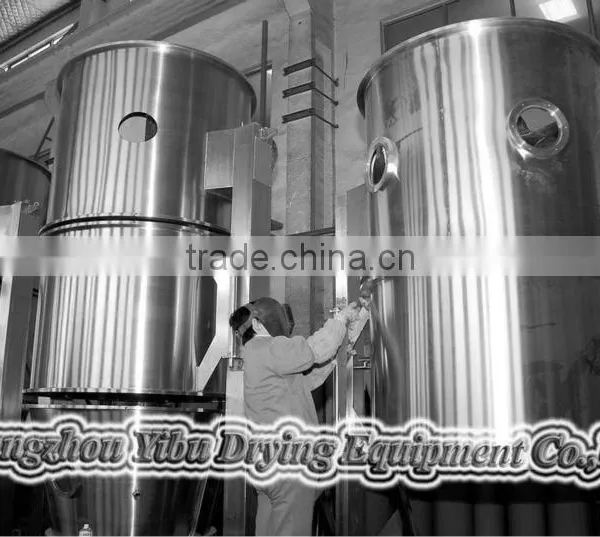

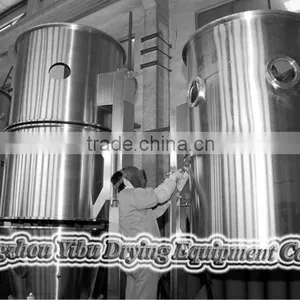

(Welding )

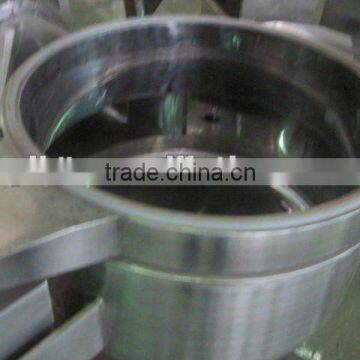

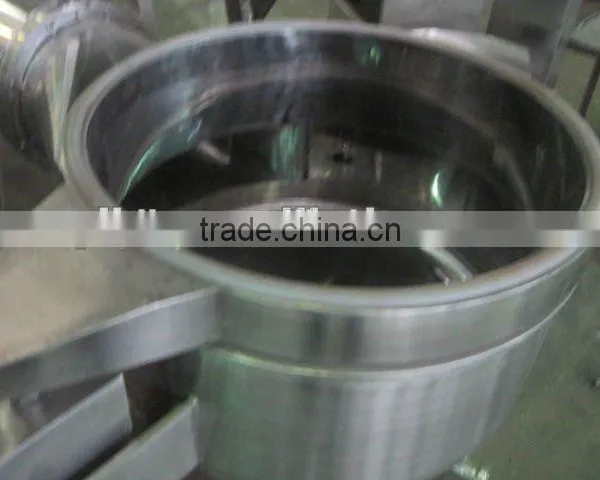

(Polishing)

( Deteching Instrument )

Our Advantages
 1. We use high-end imported brands of instruments and processing machines, to create superior quality machine for you ; YIBU makes you feel free about the after-sales service.
 2. We provide the spare parts with the cost of the spare parts themselves for lifelong time .

3.We can make the machine based on the customer request .

4.For the material for the machine ,we have several kinds of raw material for choice  Such as SUS304 ,316L , carbon steel as well as others .

5.For the heating source for the machine , we can make it based on the available facility at customer site ,such steam ,electricity ,gas-furnace and so on.

6.we invited and pointed Professor Arun s. Mujumdar, the lifetime chairman of International Drying Conference and the winner of “Friendship Award” of the Chinese government as our technical consultant as to keep YIBU machine with  the world advantage technology;

7.We have R&d team ,and can help customer to design his process of the product .

8. For the motor , we have more choices , such ABB,SEW,Siemens and so on .

9.For the burner , we have choices of Usgas ,Rellio or other international brand .

11.For shaft , we can choose SKF ,Japan NSK bearings.etc .

12.Our machine we can design with explosion proof , dust -free, water-free , sealed circulating .

13. Guarantee /warranty :1year calculating from the day of successful installation and commissioning.

14.Package : wooden packing . Special fumigation -free wooden material . Or according to customer requirement .

15.Product special features : A. Dust-proof ,heat-proof ,oil -proof ,explosion -proof ;

                                            B.Green,Environment performance;

Packaging & Shipping

 Packing Size:  depending on the machine

Container Load:  20OT ,20GP, 40OT,40GP and 40FR

Outer Packing: plastic film or wooden case

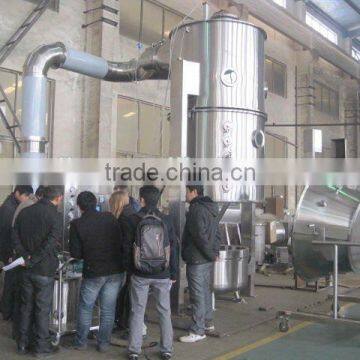

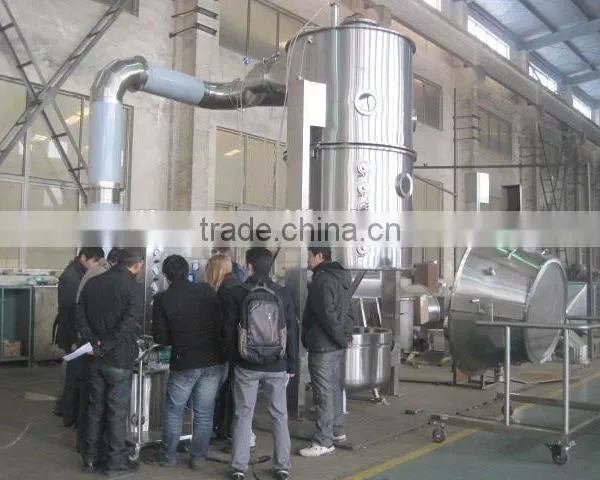

Glance at the equipment at customer site

Annul visit to customer site

As to know whether the machine sold to customer run well or not in customer site , every year we will make a visit to customer site for it .

Our Services

Pre-service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.

1. Introduce the product to the customer in detail, answer the question raised by customer carefully;

2.Make plans for choice according to the needs and special requirements of users in different sectors;

 Sale service

1. Ensure product with high quality and pre-commissioning before delivery;

2. Delivery on time;

3.Provide full set of documents as customer’s requirements.

After-sale service

Provide considerate services to minimize clients’ worries.

1.Assist clients to prepare for the first construction scheme;

2.Install and debug the equipment;

3.Train the first-line operators;

4. Examine the equipment;5.Take initiative to eliminate the troubles rapidly;

6.Provide technical support;

7.Establish long-term and friendly relationship.

Service commitment

1. Provide clients one-year warranty to make sure the machine work well;

2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;

3.Send every client a preferential quotation.

FAQ

1. Are you a manufacturer ,trading company or a third party

We are a manufacturer ,and we have started our production on 1970 and have the private company right since 1995.

2. Where is your factory located

Our company is located in Changzhou city ,Jiansu province,China .it is in the middle of Shanghai and nanjing .

3. How can I go to your factory ?

You can fly to shanghai pudong or hong qiao international airport directly ,and then take the high speed train or bus to Changzhou station and then we can pick you up at changzhou station for our company . Our company is around 30~40km away from the changzhou station.

If you are in China now , you can fly to benniu airport ,or take the train or bus to our city directly .

We sincerely welcome to visit our company at any time

4. What’s your mini order ?

    Our mini order is one set .

5. Is there any certificate of YIBU ?

Yes, we got ISO9001:2008 Quality Management System Certificate,ISO14001:2004 Environmental Management System Certificate, OHSHS18001:2004 Occupatinal Healthe and Safety Management System Certificate, ISO10012:2003 Certificate for the system of Inspection measurement and Test, CE, CE;SGS;TUV;GOST;UL;GMP also we got 60 item patent, CE;SGS;TUV;GOST;UL;GMP

6. Is there any standard of electronic systems?

YES The electronic systems and their safety should comply with the requirements set forth in 21 CFR Part 11 and GMP Annex 11; The data should be collected at appropriate time intervals and stored in the system in a fixed format that can be printed out/read;

Access to all input and output values should be provided by entering the user personal code and password. The system should ensure three-level access (Administrator-Supervisor-Operator). A detailed description of the access rights for each level should be included to the equipment functional specification (FS);
