Vacuum Drying Machine for Fruits
- ShangHai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | YI BU | |
| Model Number | FZG |
export wooden cases
Product Description

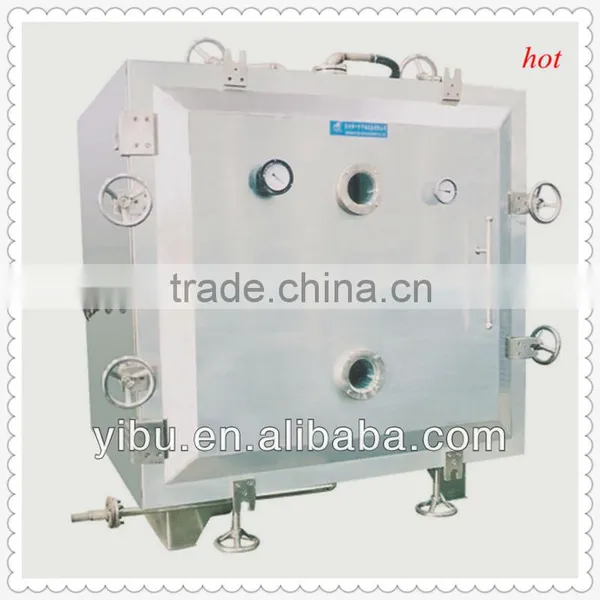

YZG Vacuum Dryer
Applications:
It is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries.
Principle:
it is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying. If use vacuum to pump air and humidity out, the dry speed will be faster.
Note: if use condenser, the solvent in raw material can be recovered. If the solvent is water, condenser might be canceled and the investment and every could be saved.
Features:
Under the condition of vacuum, the boiling point of raw material will decrease and make the evaporation efficiency higher. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved.
The heat source for evaporation may be low pressure steam or surplus heat steam.
The heat loss is less.
Before drying, the treatment of disinfection may be carried out. During the period of drying, there is no impurity material mixed. It is in conformity with the requirement of GMP.
It belongs to static dryer. So the shape of raw material to be dried should not be destroyed.
Technical parameters:
| namespec | YZG-600 | YZG-1000 | YZG-1400 | FZG-15 |
| interior size of chamber | Φ600×976 | Φ1000×1527 | Φ1400×2054 | 1500×1220×1400 |
| exterior size of chamber | 1153×810 ×1020 | 1740×1226 ×1385 | 2386×1657 ×1800 | 2060×1513 ×1924 |
| layers of baking shelf | 4 | 6 | 8 | 8 |
| interval of baking shelf | 81 | 98 | 102 | 122 |
| size of baking tray | 310×600×45 | 460×640×45 | 460×640×45 | 460×640×45 |
| number of baking tray | 4 | 12 | 32 | 32 |
| drying capacity kg | 8 | 24 | 64 | 64 |
| permitted pressure inside the pipe of baking shelf | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 |
| temperature inside chamber () | ≤150 | ≤150 | ≤150 | ≤150 |
| vacuum level inside chamber without load | -0.090.096 | |||
| type and power of vacuum pump without condenser | SK-1.5 4kw | SK-3 5.5kw | Sk-6 11kw | SK-6 11kw |
| weight of drying chamber | 250 | 800 | 1000 | 2100 |
| |
