Brewer's Grain Dryer

Brewer's Grain Dryer thumbnail-1
Brewer's Grain Dryer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Yibu
Model Number:
GZG
Contact Supplier Request Quote Chat Now
Changzhou Yibu Drying Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Yibu
Model Number GZG
Type Meat Processing Machinery

Specifications

The drying machine is suitable for drying the loose materials, such as: powder, particle and slice shape without big particles.





GZG Series Pipe Bungle Dryer

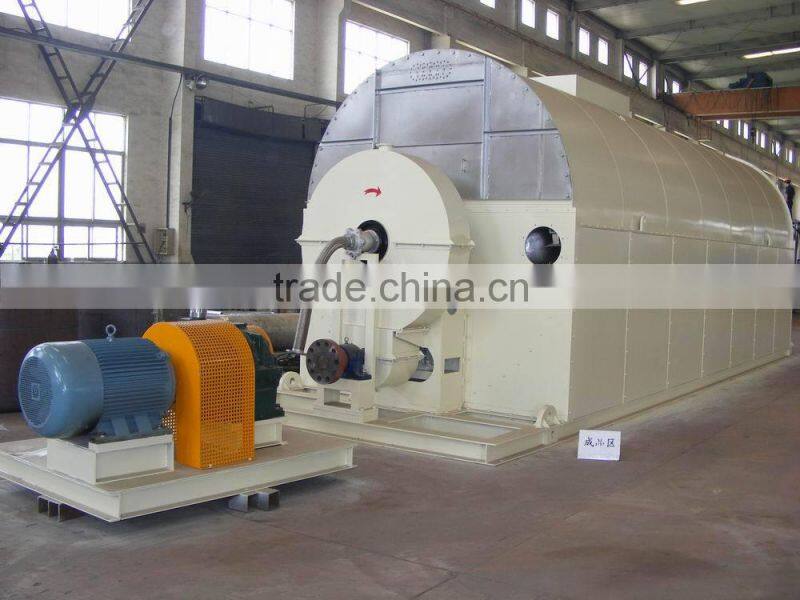

Brewer's grain Dryer











Applications
1 The drying machine is suitable for drying the loose materials, such as: powder, particle and slice shape without big particles.

2. Application in chemical industry, food industry, feed industry and other industries, such as: starch factory, feed factory, meat processing factory, wine factory, beer factory and so on.

Features
GZG pipe bundle drying machine is the indirect heated, contact type drying machine which can be both parallel flow and the counter-flow drying. Its major advantages are economic and practical. Among all kinds of the drying machines, it is the lowest in its power consumption and heat consumption. To evaporate one kg of water only consume 1.5 to 2 kg of steam, only 50% of the fluidizing dryer. To drying one ton of fermented grass powder consumes 15KW/H, only 25% compare to fluid-bed. Both the electric power consumption and the steam consumption reach the advanced level of the same kind products. The materials with high water content can be dried, the drying flexibility is wide. The drying time can be adjusted according to the materials property and moisture requirement. It can be continuous operation of high automation, or intermittent operation for special technical process. The machine has less accessories, parts occupy small area, has compact technical process and easy for installation.

 Brewer's grain Dryer











Technical parameters

spec speed of rotation (rpm)  main machine power (kw) heat exchange area (m2) drying capacity (evaporate kg of water/m2h) overall dimension (L*W*H)(mm) weight
(T)
GZG50 5-8 5.5 50 4.7 8032×1712×2250 9.0
GZG100 5-8 7.5 100 4.7 9100×1912×2470 14.0
GZG150 5-8 11 150 4.7 8500×2212×2810 18.5
GZG200 5-8 11 200 4.7 10000×2212×2810 20.0
GZG250 5-8 15 250 4.7 10200×2212×2810 23.0
GZG300 5-8 22 300 4.7 10784×2488×3383 26.0
GZG350 5-8 30 350 4.7 12048×2488×3383 28.0
GZG400 5-8 30 400 4.7 13048×2488×3383 30.0
GZG500 5-8 45 500 4.7 11298×2982×3965 40.0
GZG600 5-8 75 600 4.7 12298×2982×4165 45.0
GZG700 5-8 75 700 4.7 13298×2982×4365 51.0

Features of materials

normal material light industry water contents before the entering the machine water contents of dry product drying strength evaporation kgH2O/m2h energy consumption
(kj/evaporate kg of water)
straw 55% 3-5% 2.5-3 3500-3800
(kj/evaporate kg of water)
(840-910 LCal/evaporater kg of water)
amount to about 1.45-1.50 kg of standard saturated steam
corn fibre 60% 10-12% 4.8
fermented grass power 45% 12-13% 4.7
wooden piece and wooden chip 20% 2-3% 4.3
potato fibre 65% 10-12% 4.8
distiller's grains for beer or spirit 65 10-12% 4.9
feed carrier 16% 6-8% 4.2
rape seed 60% 5-7% 4.5
pig blood fermented power 35% 10% 4.4
bone power 40% 10% 4.6
