Mesh-Belt Dryer Used in Granule

Mesh-Belt Dryer Used in Granule photo-1

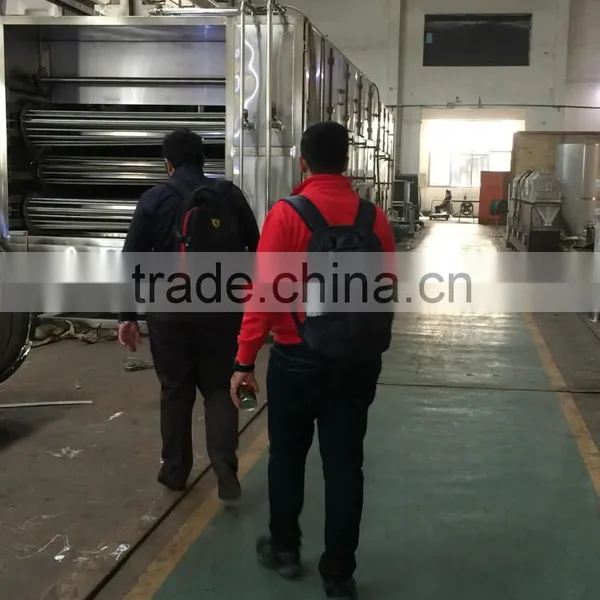

Mesh-Belt Dryer Used in Granule photo-2

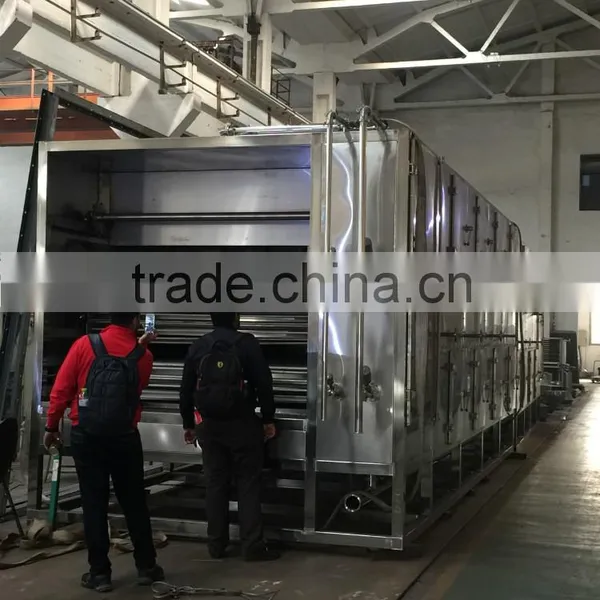

Mesh-Belt Dryer Used in Granule photo-3

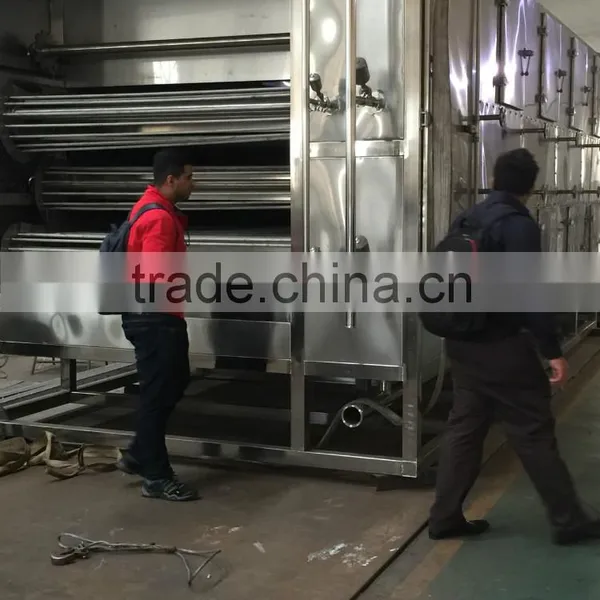

Mesh-Belt Dryer Used in Granule photo-4

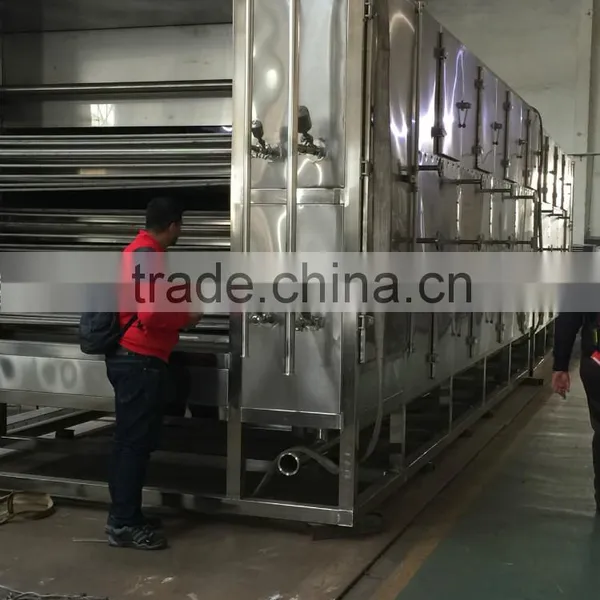

Mesh-Belt Dryer Used in Granule photo-5

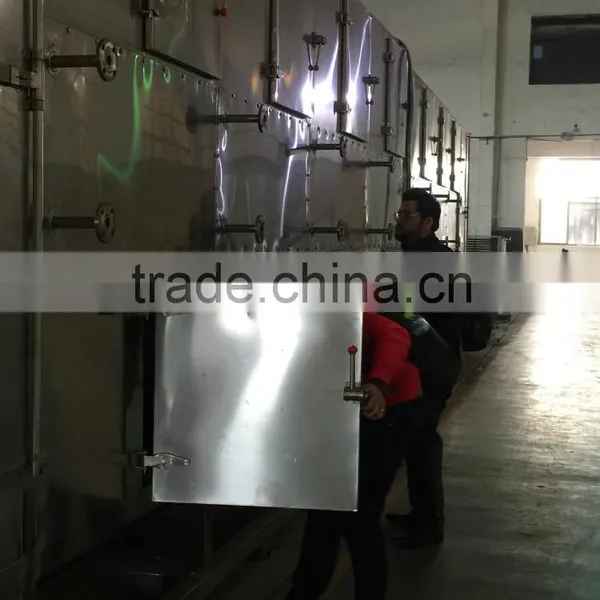

Mesh-Belt Dryer Used in Granule photo-6
US$ 200,000 - 990,000 MOQ: 50 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, cabinet dryer
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, cabinet dryer
Place of Origin Jiangsu, China
Brand Name YI BU
Model Number DW
Voltage according to customer needs
Power(W) 5.5kw
Dimension(L*W*H) 20m*2.4m*2.4m
Weight one ton
Certification CE:UL:FAD:ISO14001:9001, ISO9001 ; ISO14001
Warranty one years
After-sales Service Provided Engineers available to service machinery overseas

Applications:

DWP type spray air mesh-belt drying machine is mainly used for drying the fiber plate, plaster plate, carton board, pulp film, coated cloth and etc.. The machine is also suitable for drying the sheet state material and some special materials.

Principle

For DWP type air jet mesh-belt dryer, the hot air flows. Through narrow seams or holes, downward or upward to the materials on the transmission belt. Because the spray air speed is up to more than 15m/s, the heat transmitting film is very thin, the heat transmitting co-efficiency is big and the drying speed is fast. When the machine is used for the air tight grains, the above air jet flow will return to the top and the bottom flow will return to the bottom, take part in circulation. For some materials, the air flows will pass through the inside of the materials, the heat source can be steam, electricity, thermal furnaces and combustion oil flue and etc.

Technical parameters

spec unit DW-1.2-8 DW-1.2-10 DW-1.6-8 DW-1.6-10 DW-2-8 DW-2-10
belt width m 1.2 1.2 1.6 1.6 2 2
drying section length m 8 10 8 10 8 10
thickness of the material mm 10-80
operation temperature °C 60-130
steam Pressure Mpa 0.2-0.8
steam consumption capacity Kgsteam/kgH2O 2.2-2.5
drying strength KgH2O/h 6-20
total power of fan Kw 5.5 7.5 7.5 11 11 15
total power of machine KW 6.25 8.25 8.25 11.75 11.75 15.75
