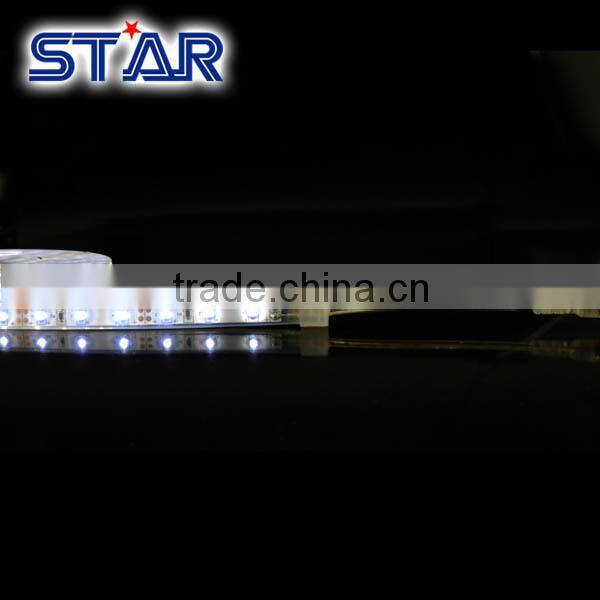

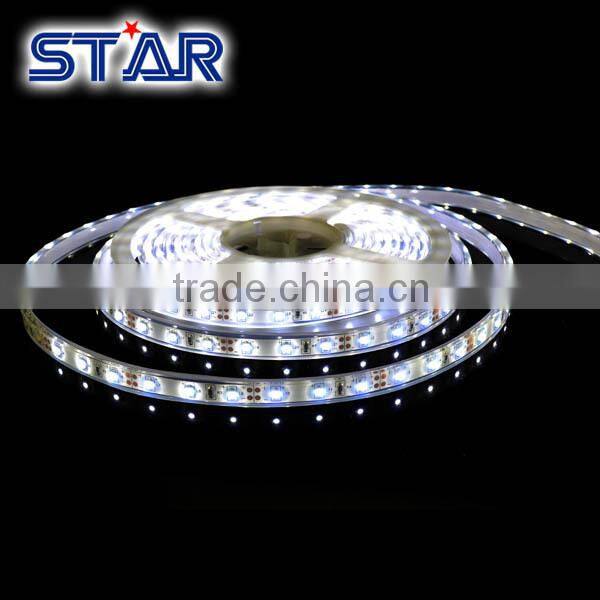

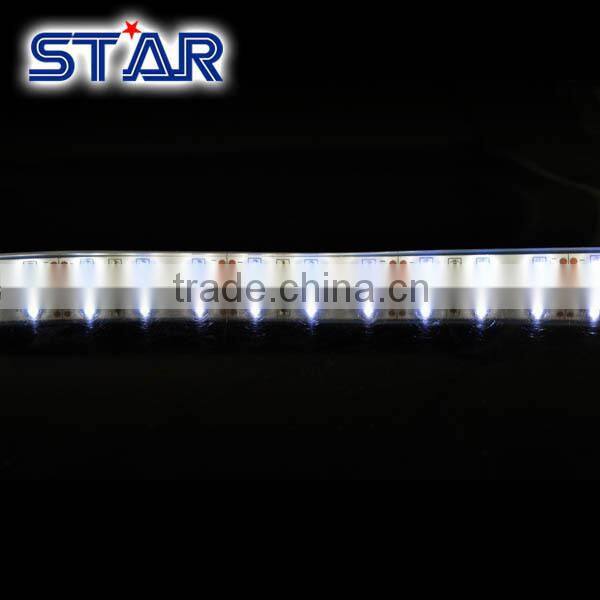

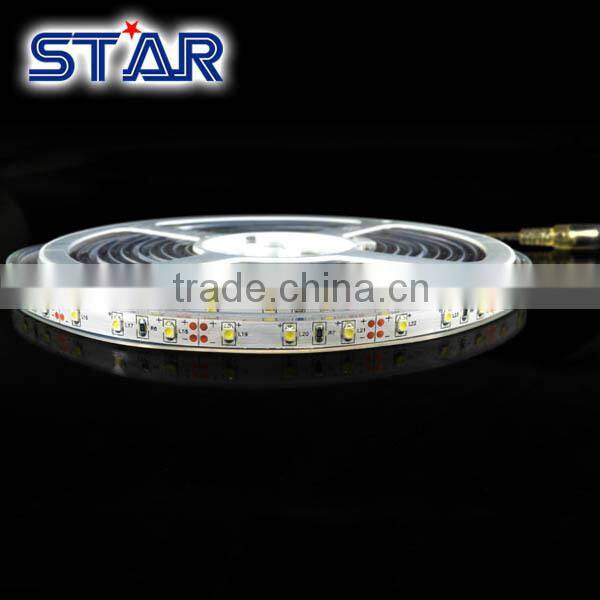

3528 12V 30LED/M IP67 Waterproof Single Color LED Strips

FOB Price

US$ 1.45 - 2 / Meter

1 Meter(Min. Order)

Port Shenzhen
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	3528	Type	Flex LED Strips
Input Voltage(V)	12	Lamp Power	24
Lamp Luminous Flux(lm)	300	Color Temperature(CCT)	2700-13000
Working Temperature(℃)	-10, +45	Working Lifetime(Hour)	50000
Lamp Body Material	Aluminum	Certification	CE
Emitting Color	White	Place of Origin	Guangdong, China
Brand Name	OGX	Model Number	3528

Product Description

Specifications

3528 12V 30LED/M
IP67 Waterproof Single Color LED strips
CE,RoHS.
2years.
Min order:5meters.

3528 12V 30LED/M IP67 Waterproof Single Color LED strips

3528 60led 12v cuttable length:

The STAR FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of illumination. Due to their shallow design and the individually adaptable lengths the STAR FLEX STRIPS offer a wide spectrum of application possibilities.

1.High flexibility – adaptable to round shapes.
2.Installation with 3M adhesive tape on the strip’s backside (self adhesive) is only as fit-up aid.
3.IP65 for outdoor use (supply connector only IP20)
4.dimmable or DMX 512, 1-10 V controllable by RGB MULTI power supplies/controller

Technical Data:

IP classification	IP67 (for outdoor use)
Power source	12 VDC
Electrical connection	1x cable with 2-PIN connector male
Maximum quantity per power input	5m
Operating temperature range	–10° C till +45° C
Width x height	2.5x8x10000mm
Cuttable	every 3 LEDs
Current	0.4A
strip length	5meter
LED Qty	60leds per meter

Photometric Data:

LED type	SMD Chip 3528
Luminous flux	white 190 Lumen per m neutral white 220 Lumen per m warm white 250 Lumen per m 2700 K 230 Lumen per m
Colour temperature	white 6000–8000 K neutral white 4000–4500 K warm white 2900–3500 K 2700 K 2500–2800 K
CRI	white 70+ neutral white 70+ warm white 60+ 2700 K 60+
Beam angle	120°
Wattage	4.8w per meter,24w per 5meters

Accessories:
