Home > Products > Flex LED Strip Light > White Color 12v 335 Side View IP65 Drip Glue Waterproof Flexible LED Strip Ilight 60led/m 4.8w/m

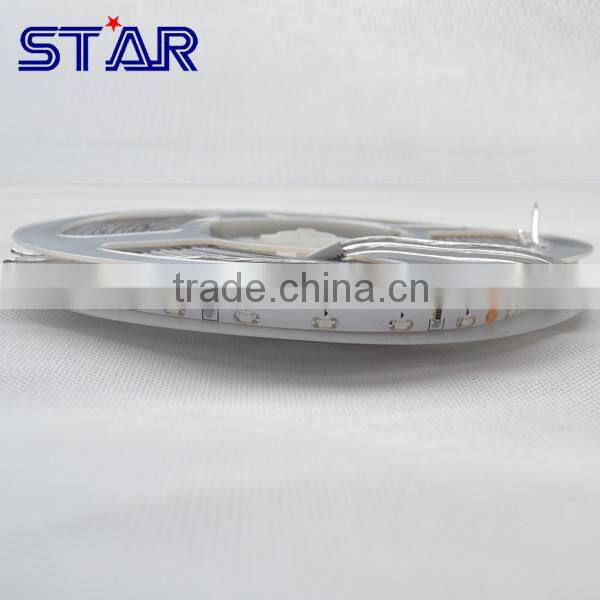

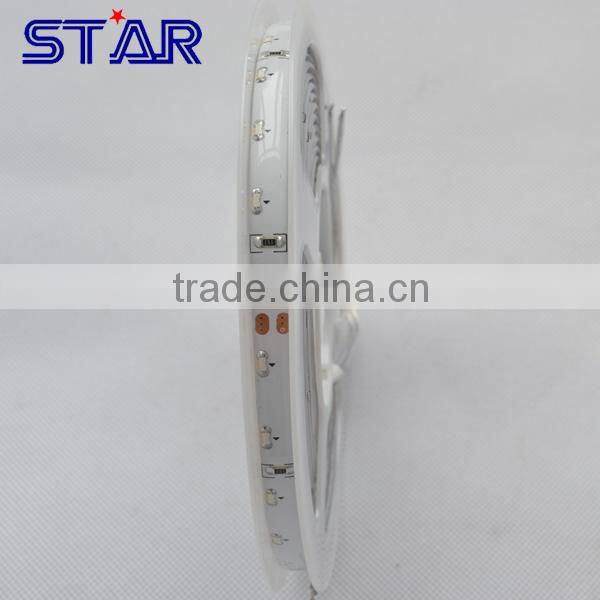

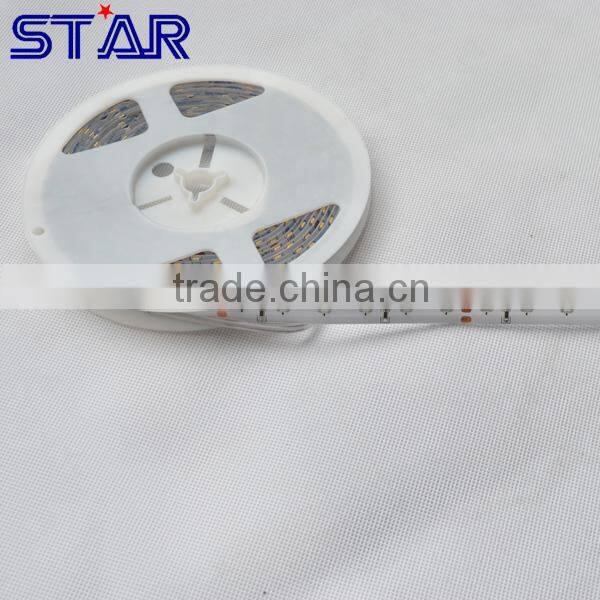

White Color 12v 335 Side View IP65 Drip Glue Waterproof Flexible LED Strip Ilight 60led/m 4.8w/m

Name: White Color 12v 335 Side View IP65 Drip Glue Waterproof Flexible LED Strip Ilight 60led/m 4.8w/m
Brand: STAR
Availability: InStock

FOB Price

US$ 2.3 - 2.8 / Meter

1 Meter(Min. Order)

Port Shenzhen
Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	335	Type	Flex LED Strips
Input Voltage(V)	12	Lamp Power	24
Color Temperature(CCT)	6000-8000k	Working Temperature(℃)	-10, +45
Working Lifetime(Hour)	50000	Emitting Color	White
Place of Origin	Guangdong, China	Brand Name	STAR
Model Number	ST335W60D65

Product Description

Specifications

12v 335 IP35 Waterproof Side View LED Strip Lighting
MOQ:1meter
LEDs side emission of light.
Installation with 3M adhesive

White color 335 Side View LED Strip light 60led/m 12v IP65 drip glue waterproof for Outdoor Decoration

The STAR FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of background lighting. Due to their shallow design and the individually adaptable lengths the STAR FLEX STRIPS offer a wide spectrum of application possibilities.

1.High flexibility – adaptable to round shapes.
2.Installation with 3M adhesive tape on the strip’s backside (self adhesive).
3.LEDs side emission of light.
4.dimmable or DMX 512, 1-10 V controllable by RGB MULTI power supplies/controller

12V 335 Side view led strip cuttable length by every 3leds:

Technical Data

IP classification	IP65 for OUTDOOR decoration
Power source	12 VDC
Electrical connection	2x cable with 2-PIN to open wires
Maximum quantity per power input	5 m
Operating temperature range	–10° C till +45° C
PCB Size	8mm 5mm
Cuttable	all 3 LEDs (5 cm)

Photometric Data

LED type	SMD CHIP 335
Luminous flux	blue 50 Lumen per m white 280 Lumen per m warm white 290 Lumen per m
Wave length	blue 464 nm
Colour temperature	white 6000–8000 K warm white 2900–3500 K
CRI	white 70+ warm white 60+
Beam angle	90°
Wattage	4.8w/m,24w each 5meters

ypes of waterproof casing are as follows for your choice:

IP20	Non Waterproof
IP65	Drip silicon
IP66	Silicon tube encasing
IP68	Silicone tube and silicon stuffing encasing

Model	Color	Voltage	PCB Width(mm)	LEDs Qty	SMD Chip	Wattage
ST335R60D20	RED	DC12V	8mm 5mm	60led/m	335	4.8w/m
ST335Y60D20	YELLOW	DC12V	8mm 5mm	60led/m	335	4.8w/m
ST335B60D20	BLUE	DC12V	8mm 5mm	60led/m	335	4.8w/m
ST335G60D20	GREEN	DC12V	8mm 5mm	60led/m	335	4.8w/m
ST335W60D20	White	DC12V	8mm 5mm	60led/m	335	4.8w/m

1)Excellent quality, reasonable price
2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving

Features:
- Size: 1,000 x 8mm, SMD light ribbon (60pcs LED)
- Working voltage: 12V DC
- Working current: 340 to 380mA
- LED viewing angle: 90 degrees
- Waterproof grade: IP65
Applications:
- Cars and boats
- Bars and clubs
- swimming pools and fountains
- Cove decoration
- Furniture lighting
- Kitchen lighting
- Light box and sign box
Package: 5 meters/reel
