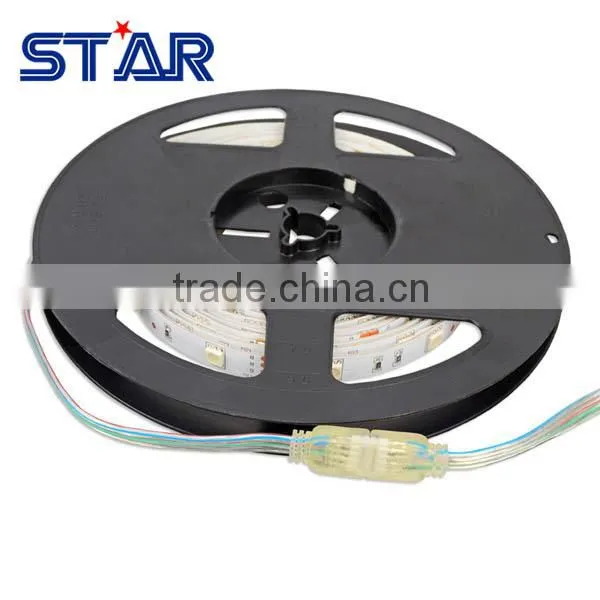

RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation

RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation thumbnail-1
RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation thumbnail-2
RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation thumbnail-3
RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation thumbnail-4
RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation thumbnail-5
RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation thumbnail-6
RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation photo-1
RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation photo-2
RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation photo-3
RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation photo-4
RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation photo-5
RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for Indoor Decotation photo-6
US$ 2.3 - 2.5 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
SMD5050
Type:
Flex LED Strips
Input Voltage(V):
12v 24v
Contact Supplier Request Quote Chat Now
Shenzhen Ouge Star Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5050
Type Flex LED Strips
Input Voltage(V) 12v 24v
Lamp Power 72
Lamp Luminous Flux(lm) 14-16
Working Temperature(℃) -10, +45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name STAR
Model Number ST50RGB60D20

Specifications

Power:72w
Length:5m
Voltage:12v/24v
Waterproof Grade:IP20
CE,RoHS

RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for indoor decotation



The STAR FLEX STRIPS are perfect for indirect lighting, as custom made versions for fair or shop applications as well as for all kinds of illumination. Due to their shallow design and the individually adaptable lengths the STAR FLEX STRIPS offer a wide spectrum of application possibilities.



1.3 colours on one chip, therefore 100% smooth colour mixing.
2.High flexibility – adaptable to round shapes.
3.Installation with 3M adhesive tape on the strip’s backside (self adhesive).
4.dimmable, autom. colour change, DMX 512, 1-10 V controllable by RGB MULTI power supplies/controller



5050 RGB 12V 60led cuttable length:

RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for indoor decotation

Technical Data:

IP classification  IP20 for indoor decoration only
Power source 12 VDC Common Anode (CA)
Electrical connection 2x cable with 4-PIN to open wires
Maximum quantity per power input 5 m
Operating temperature range –10° C till +45° C
Width x height 10 x 2,5 mm
Cuttable every 3 leds



Photometric Data:

LED type SMD RGB 3-in-1 LEDs
Luminous flux

red 70 Lumen per m
green 220 Lumen per m
blue 50 Lumen per m
r+g+b (white) 330 Lumen per m
Wave length

red 623 nm
green 525 nm
blue 464 nm
Beam angle 120°



Flexible & soft PCB can be bent into any shape, the length can be adjustable or cuttable every three leds



3M Adhesive Tape on the back



Types of waterproof casing are as follows for your choice:

IP20 Non Waterproof
IP65 Drip silicon
IP66 Silicon tube encasing
IP68 Silicone tube and silicon stuffing encasing
IP67  Half-Silicone tube and silicon stuffing encasing

1)Excellent quality, reasonable price
2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving



FEATURES:
Superbright 3528 SMD top LED, high intensity and reliability.
Long life span 50,000+ hours
Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.
Flexible ribbon for curving around bends
Low power consumption


Applications:
Car decoration
Architectural decorative lighting
Auditorium walkway lighting
Residential Institution Buildings
Schools, Colleges & Universities
Places where energy saving and high color rendering index lighting
Suitable for architectual lighting, cove lighting



Length:5meter each roll,10meters/reel

RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for indoor decotationRGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for indoor decotationRGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for indoor decotationRGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for indoor decotationRGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for indoor decotationRGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for indoor decotation

RGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for indoor decotationRGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for indoor decotationRGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for indoor decotationRGB Flexible LED Tape Light SMD5050 12V 60led/m 14.4w/m IP20 for indoor decotation
