Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT

IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT

IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT thumbnail-1
IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT thumbnail-2
IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT thumbnail-3
IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT thumbnail-4
IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT thumbnail-5
IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT thumbnail-6
IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT photo-1
IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT photo-2
IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT photo-3
IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT photo-4
IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT photo-5
IP65 Drip Glue Waterproof 2700K to 13000k 12V 120led/m LED Stripe Adjustable CCT photo-6
US$ 2.7 - 3 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
4014
Type:
Flex LED Strips
Input Voltage(V):
12
Contact Supplier Request Quote Chat Now
Shenzhen Ouge Star Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 4014
Type Flex LED Strips
Input Voltage(V) 12
Lamp Power 60
Color Temperature(CCT) 2700-13000K
Working Temperature(℃) -10, +45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Emitting Color White
Place of Origin Guangdong, China
Brand Name STAR
Model Number ST40W120D65

Specifications

Wattage:60watt
Voltage:DC12V,DC24V
Dimmable:yes.
Color:Warm white,cold white,white,nature white
CE,RoHS

Dimmable MULTI WHITE COLOR LED Strip Light SMD4014 12V Non Waterproof 120leds/m 2700-13000K LED Tape  with Dimmer





SMD4014 120led 12v cuttable length:









Technical Data:



IP classification IP20 for INdoor
Power source 12V DC
Electrical connection 2x cable with 2-PIN to open wires
Maximum quantity per power input 5M
Operating temperature range –10° C till +45° C
Width x height 8 x 2,5 mm
Cuttable all 3 LEDs (5 cm)







Photometric ata:



LED type SMD Chip 4014
Luminous flux

//
Wave length

//
Colour temperature

white 6000–8000 K
neutral white 4000–4500 K
warm white 2900–3500 K
2700 K 2500–2800 K
CRI

white 70+
neutral white 70+
warm white 60+
2700 K 60+
Beam angle 120°



Flexible & soft PCB can be bent into any shape, the length can be adjustable or cuttable every three leds



3M Adhesive Tape on the back



Types of waterproof casing are as follows for your choice:



IP20 Non Waterproof
IP65 Drip silicon
IP66 Silicon tube encasing
IP68 Silicone tube and silicon stuffing encasing



IP67  Half-Silicone tube and silicon stuffing encasing



1)Excellent quality, reasonable price
2)CE, RoHS, Outdoor/Indoor
3)Easy installtion
4)Energysaving







FEATURES:
Superbright 4014 SMD top LED, high intensity and reliability.
Long life span 50,000+ hours
Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.
Flexible ribbon for curving around bends
Low power consumption




Applications:
Car decoration
Architectural decorative lighting
Auditorium walkway lighting
Residential Institution Buildings
Schools, Colleges & Universities
Places where energy saving and high color rendering index lighting
Suitable for architectual lighting, cove lighting



Length:5meter each roll,10meters/reel


Applications:
Car decoration
Architectural decorative lighting
Auditorium walkway lighting
Residential Institution Buildings
Schools, Colleges & Universities
Places where energy saving and high color rendering index lighting
Suitable for architectual lighting, cove lighting

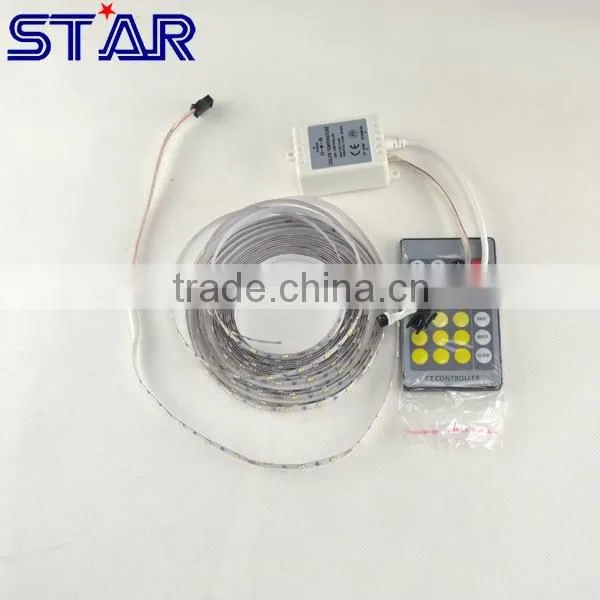

Products name:IR 24 keys Color temperature controller



Product Description:

This controller is adopt the most mature infrared remote control technology, mainly used to controlled Color temperature led strips. User can choose different color temperature effect,can adjust the light’s brightness and turn on/off the light,etc.Besides , this controller is with lost power memory function,when powered the controller, it will be in the same color temperature as last time before power off. Most of the function are very clear on the hot key,and its easy to be wiring,very simple to used.

Main feature:

1. Small size,light.

2. There are 24keys one the remote control,function mode are clear on the hot key,simple        to be used.

3. Easy to wiring,and the remote control is versatile.



Technical Parameters:



Controller:



Working temperature:-20-60℃



Input voltage:DC 12-24V



Connection mode:Common anode



Output current:<6A



Static power consumption:<1W



Controller size:L61 Χ W35 Χ H22 mm



Packing size:L90ΧW60ΧH40mm



Net weight:24g



Gross weight:57g



Remote control:



Working temperature:-20-60℃



power supply mode:button battery



supply voltage:3V



External dimension:



(Controller size)





 Connection description:

Power input interface:

   Adopt the 5.5x2.1mm DC connector seat



The infrared receiving interface:

  Adopt the three core flat wire with the infrared receiver.



  The load output interface:





Direction for use:

1.Connect the load cord first, and then connect the power cord; Before power on please ensure no short circuit between the cables

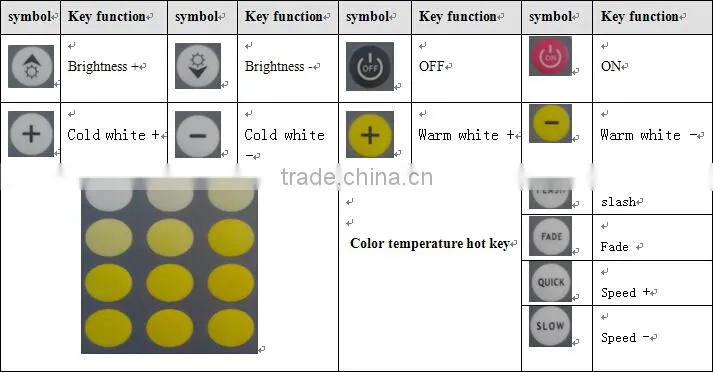

2. Used the 24 key infrared remote control, the key function are as follows:





Typical Applications:



Cautions



1,This products Input voltage is DC12V,other input voltage are not allowed.



2,Lead wire should be connected correctly,according to the wire color and the connecting diagram offers.



3,Overload are prohibited.
