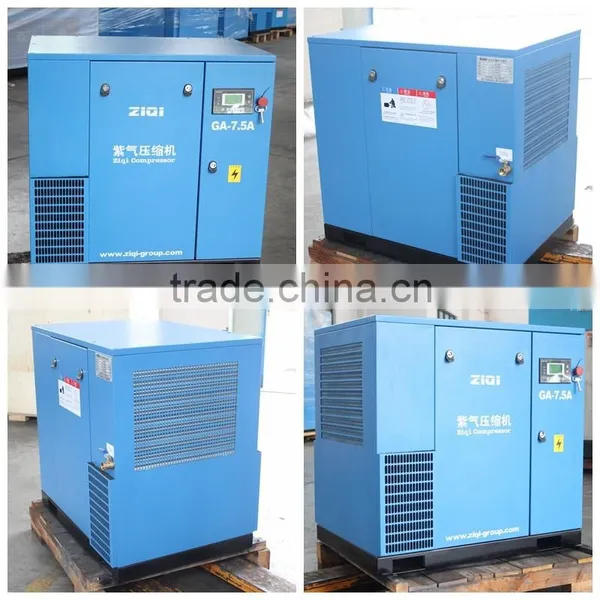

7.5kw belt drive air compressor machine prices
“ZIQI” screw compressor air ended adopt original German AERZEN or GHH brands,excellent unique design,enjoyed an very good reputation by users for the accuracy of manufacturing and high efficiency.
Superior motor,F degree insulation ,IP55,work normally even in a poor working environment can.
Advanced monitoring system has full system performance status display, predictability mainte-nance tips, fault alarm and safe shutdown.
Adopt ZIQI unique reverse-lock technology, oil never leak.Italy manuli tube, life will be five times longer compared to ordinary rubber tube.
Model |
GA-7.5A |
||
Air discharge/Pressure discharge |
m³/min/Mpa |
1.3/0.7 , 1.2/0.8, 1.1/1.0 , 0.9/1.3 |
|
compression series |
|
Single stage |
|
Cooling model |
|
A-Air cooling |
|
Exhaust temperature |
ºC |
< Ambient temperature +15ºC |
|
Air inlet temperature |
ºC |
≤32ºC |
|
Air inlet pressure |
MPa |
0.2~0.6 |
|
Noises Level |
dB(A) |
62±2 |
|
Transmission |
|
Belt Drive |
|
Power supply |
V/Ph/Hz |
415/3/50 |
|
Protection grade |
|
IP55 |
|
Motor power |
kw |
7.5 |
|
Starting model |
|
Y-Δ Start |
|
Dimensions |
L |
mm |
950 |
|
W |
mm |
650 |
|
H |
mm |
915 |
Weight |
Kg |
270 |
|
Exit diameter |
mm |
20 |
|
The founder Mr.Mao devoted himself to product high quilty products and meet the needs of different he set up ZiQi
Our company is mainly for all kinds of customers to satisfy their needs of air compressor.Company to "focus on technology, whole-hearted service" as the core value, all to customer demand as the goal.We have professional technical research and development team, in a timely manner to provide customers with the latest technology.We hope that we can develop the global market, our products to do strongly does.
Our product with German GHH host, using Brazil WEG motors, paper pad for the cable company, connecting pipe is Italy manuli, drive belt is a German bits, etc., these make our products far more than the same industry in terms of quality.We will always provide customers with high quality product in mind.
