Environment Protection Low Pressure Air Screw Compressor

Name: Environment Protection Low Pressure Air Screw Compressor
Brand: ZIQI
SKU: 131566525

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Screw

Configuration:

Stationary

ZiQi Compressor (Shanghai) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Screw

Configuration Stationary

Power Source AC Power

Lubrication Style Lubricated

Mute Other, 77+/-2

Place of Origin Shanghai, China

Brand Name ZIQI

Model Number GAL-160A

Voltage AC380

Dimension(L*W*H) 2650*1550*1920mm

Weight 3200kg

Certification ISO9001 CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

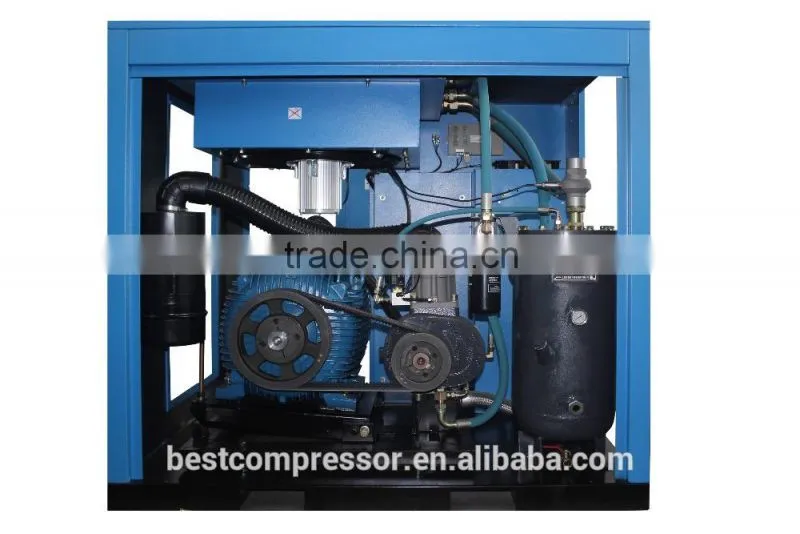

Environment protection low pressure air screw compressor

Advantage:energy saving ,

Air compressor Model			GAL-160A
Air discharge/Pressure discharge		m³/min/Mpa	43.3/0.3
No of compression stage			Single stage compression
Cooling model			A-Air cooling
Discharge temperature		ºC	≤The environment temperature +15ºC (Air cooling)
Air inlet temperature		ºC	≤32ºC
Air inlet pressure		MPa	0.2~0.6
Noises Level		dB(A)	77±2
Exhaust oil content			≤ 3ppm
Power supply		V/Ph/Hz	AC380/50
Protection grade			IP55
Motor power		kw	132
Starting model			Y-Δ Start
External dimensions	L	mm	2650
	W	mm	1550
	H	mm	1920
Net Weight		Kg	3200
Air out pipe diameter		mm	dn80
