Help CenterStationary Screw Type Compressor
Related Products
Specifications
stationary rotary screw type compressor:1.Air end:Germany GHH-RAND
2.Beaing:Swedish SKF
3.Coupe:Germany KTR
stationary screw type compressor
Details
Germany GoodAir screw compressor, the technology from Germany and the main configures are imported from Germany to make sure the high performance and working smoothly.
Especially the air end using Germany GHH-RAND
Lower life-cycle costs:
Energy costs taken over the lifetime of any compressor add up to many times that of the initial capital cost, which can make any purchase price difference a false economy. Efficiency and reliability are vital in the production of compressed air and GoodAir achieves these objectives with quality, durable components that are built to last. Energy saving GHH-RAND rotary screw compressors can help businesses enhance their competitive edge and significantly reduce compressed air costs.
5.5KW~30KW Specification
Model |
GA-5.5A |

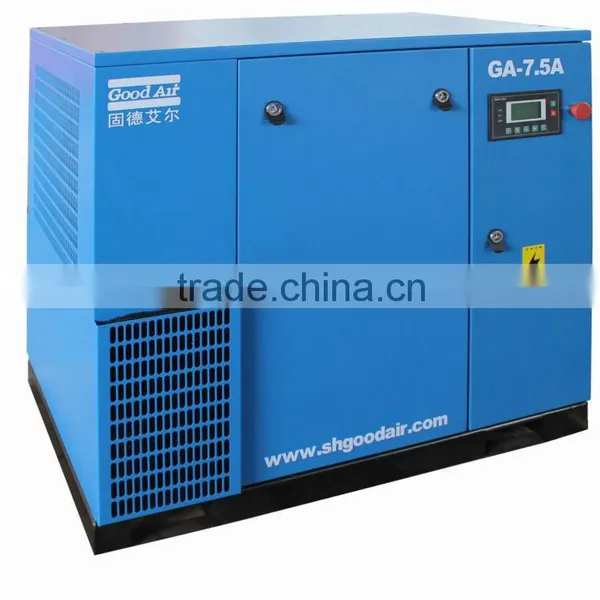

GA-7.5A |
GA-11A |
GA-15A |
GA-18.5A |
GA-22A |

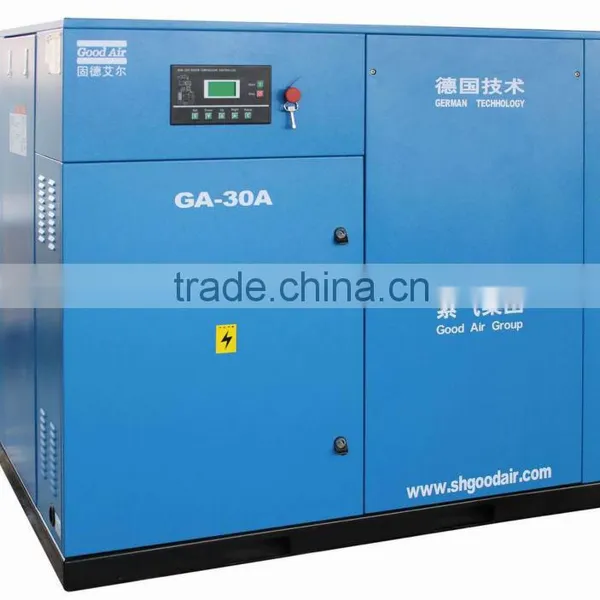

GA-30A |
||
|
Air discharge/ Pressure discharge
|
m³/min/Mpa
|
0.82/0.7 |
1.26/0.7 |
1.72/0.7 |
2.65/0.7 |
3.20/0.7 |
3.80/0.7 |
5.20/0.7 |
|
0.73/0.8 |
1.17/0.8 |
1.58/0.8 |
2.42/0.8 |
3.11/0.8 |
3.62/0.8 |
5.01/0.8 |
|||
0.65/1.0 |
1.01/1.0 |
1.46/1.0 |
2.22/1.0 |
2.73/1.0 |
3.21/1.0 |
4.52/1.0 |
|||
0.58/1.2 |
0.87/1.2 |
1.21/1.2 |
1.81/1.2 |
2.32/1.2 |
2.80/1.2 |
3.83/1.2 |
|||
No of compression stage |
|
Single stage compression |
|||||||
Cooling model |
|
A-Air cooling W-Water cooling |
|||||||
Discharge temperature |
ºC |
≤The environment temperature +15ºC (Air cooling)≤40ºC (Water cooling) |
|||||||
Noises Level |
dB(A) |
62±2 |
63±2 |
64±2 |
64±2 |
65±2 |
65±2 |
65±2 |
|
Transmission mode |
|
Belt Drive |
|||||||
Power supply |
V/Ph/Hz |
380/3/50 ,custom design is suitable |
|||||||
Motor power |
kw |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
|
Starting model |
|
Direct Start |
Y-Δ Start |
||||||
External dimensions |
L |
mm |
890 |
890 |
1070 |
1070 |
1210 |
1525 |
1525 |
W |
mm |
630 |
630 |
880 |
880 |
1000 |
930 |
930 |
|
H |
mm |
920 |
920 |
1100 |
1100 |
1300 |
1555 |
820 |
|
Net Weight |
Kg |
220 |
240 |
450 |
470 |
620 |
820 |
880 |
|
Air out pipe diameter |
Inch |
G3/4” |
G3/4” |
G1” |
G1” |
G1 1/4” |
G1 1/4” |
G1 1/4” |
|
Volume Lubricant oil |
L |
6 |
6 |
8 |
8 |
15 |
15 |
22 |
|

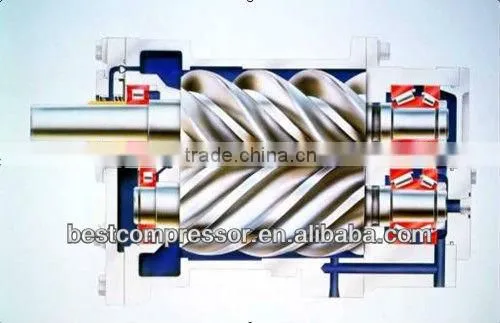

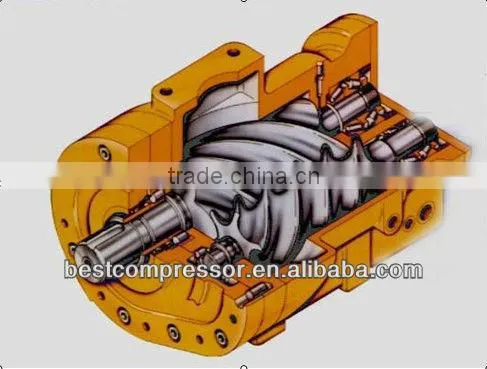

1. Host body ( air end )

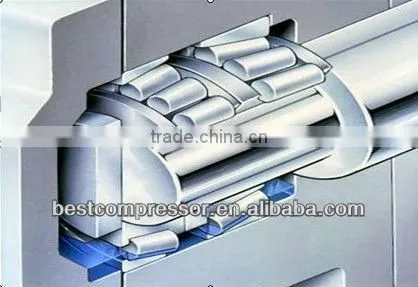

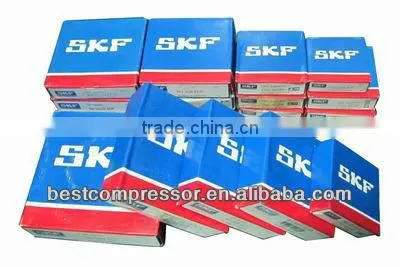

2. Air end discharge terminal adopts SKF company TRB (tapered roller bearing)
3. Direct driven type -- from 55kw to 355kw
About us:
Shanghai GoodAir compressor Co., Ltd. located in China's economic center of Shanghai, and our head office is in Munich Germany is a professional engaged in compressor design, manufacturing enterprises. Since its inception the rapid development of the spirit to serve the industrial chain of air compressor to create the objective of a comprehensive whole and social advantages of resources and establish a strong technical team and perfect the modern enterprise management system. Production of products, including belt-type screw air compressor, Direct-type, air-cooled screw air compressor, water-cooled screw compressor, frequency and portable screw compressor.
Please feel free to contact me for further information.
