Specifications
portable diesel screw air compresor price 17bar1.Reliable and durable
2.Original Germany Air End
3.ISO9001
portable diesel screw air compresor price 17bar
Product description

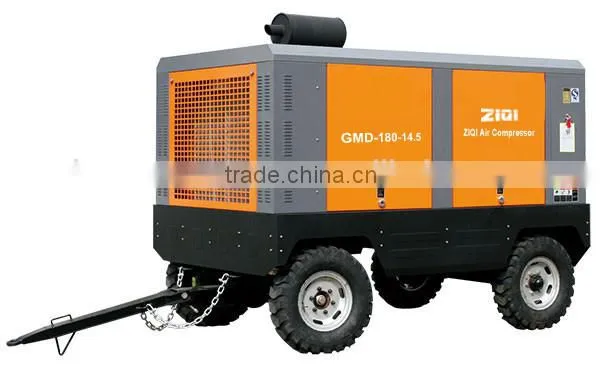

ZiQi diesel portable screw compressor main features as follows:
1.Equipped with efficient and reliable air end,host and engine connect by direct couping,higher efficiency,longer life.
2.Select Cummings/Yuchai diesel engine and other famous brand diesel engine,meet in china ll emission requirements,strong power,low fuel consumption,a nationwide after sale servicesyatem,the user can enjoy rapid and perfect service.
3.Air control system is simple and reliable,according to the size of air consumption,automatic adjustement the air capacity between 0~100 %,at the same time automatically adjusts the throttle of diesel engine,maximum to saving diesel.
4.Intelligent microcomputer monitoring compressor exhaust pressure,exhaust temperature,engine speed,oil pressure,water temperature,fuel tank level and other operating parametres,with automatic alam and down protection function.
Technical parameter
|
Air Compressor |
Volume flow |
17 m³/min |
Pressure |
1.45 mpa |
|
Range of working pressure |
0.5-1.3 mpa |
|
Lubricant oil capacity |
54 L |
|
Air outlet size |
R1-1/2’’ball valve 1,R1’’valve 1 |
|
Tyre size |
6.5-16*2 ppm |
|
Tyre pressure |
500-600 kpa |
|
Wheel track |
1560 mm |
|
The highest elevation |
3000 m |
|
Large*wide*high |
3000*2200*2050 mm |
|
Type of main engine |
Hanbell AA-780R |
|
Net weight |
2800 kg |
|
Noise |
75 db(A) |
|
|
Diesel Engine |
Name |
Yuchai |
Form |
Yuchai water-cooled 4 stroke di pay supercharger |
|
Rated power |
110 kw |
|
Rated speed |
2500 or 2400 rpm |
|
Coolant volume |
25-28 L |
|
Engine oil capacity |
12-18 L |
|
Fuel tank capacity |
120-160 L |
|
Fuel consumption 80% load |
17-18 L/H |
